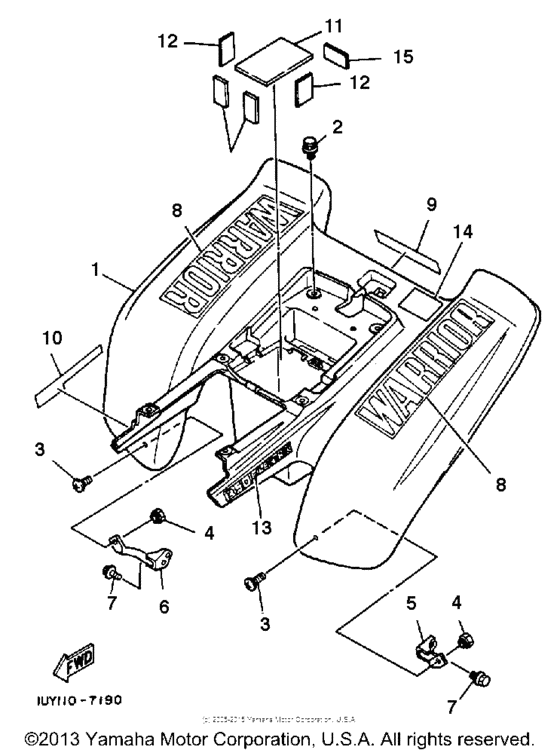

Rear fender Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-21611-01-00
Fender, Rear
UR CLEAN WHITE |
1UY-21611-01-00 |
— | ||
| replacements | |||||
|
1
|
1
3GD-W2161-52-00
Rear Fender Comp
UR CLEAN WHITE |
3GD-W2161-52-00 |
— | ||
|
1
|
1
3GD-21611-50-00
Fender, Rear
UR CLEAN WHITE |
3GD-21611-50-00 |
— | ||
|
1
|
1
1UY-21611-11-00
Fender, Rear
UR CHAPPY RED |
1UY-21611-11-00 |
— | ||
| replacement | |||||
|
1
|
1
1UY-W2161-12-00
Rear Fender
UR CHAPPY RED |
1UY-W2161-12-00 |
— | ||
|
2
|
2
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
2
|
2
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
2
|
2
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
3
|
3
90149-06306-00 Screw |
90149-06306-00 |
from US $2 |
||
|
4
|
4
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
5
|
5
1UY-21613-00-00 Stay, Fender 1 |
1UY-21613-00-00 |
from US $17.71 |
||
|
6
|
6
1UY-21614-00-00 Stay, Fender 2 |
1UY-21614-00-00 |
from US $17.85 |
||
|
7
|
7
95826-06010-00 Bolt, Flange |
95826-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
8
|
8
1UY-2163G-10-00
Emblem 1
FOR CPR |
1UY-2163G-10-00 |
— | ||
|
8
|
8
1UY-2163G-00-00
Emblem 1
UR FOR W |
1UY-2163G-00-00 |
— | ||
|
9
|
9
1UY-2163H-00-00
Emblem 2
UR FOR W |
1UY-2163H-00-00 |
— | ||
|
9
|
9
1UY-2163H-10-00
Emblem 2
FOR CPR |
1UY-2163H-10-00 |
— | ||
|
10
|
10
1UY-21784-10-00
Emblem 4
FOR CPR |
1UY-21784-10-00 |
— | ||
|
10
|
10
1UY-21784-00-00
Emblem 4
UR FOR W |
1UY-21784-00-00 |
— | ||
|
11
|
11
1UY-21639-00-00 Damper 2 |
1UY-21639-00-00 |
from US $3.40 |
||
|
12
|
12
1UY-21638-00-00 Damper 1 |
1UY-21638-00-00 |
from US $2.98 |
||
|
13
|
13
1UY-21783-10-00
Emblem 3
FOR CPR |
1UY-21783-10-00 |
— | ||
|
13
|
13
1UY-21783-00-00
Emblem 3
UR FOR W |
1UY-21783-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
UR FOR W |
999-99999-99-00 |
— | ||
|
14
|
14
1UY-21668-00-00
Label, Tire
|
1UY-21668-00-00 |
— | ||
|
15
|
15
1UY-21638-00-00 Damper 1 |
1UY-21638-00-00 |
from US $2.98 |
||
