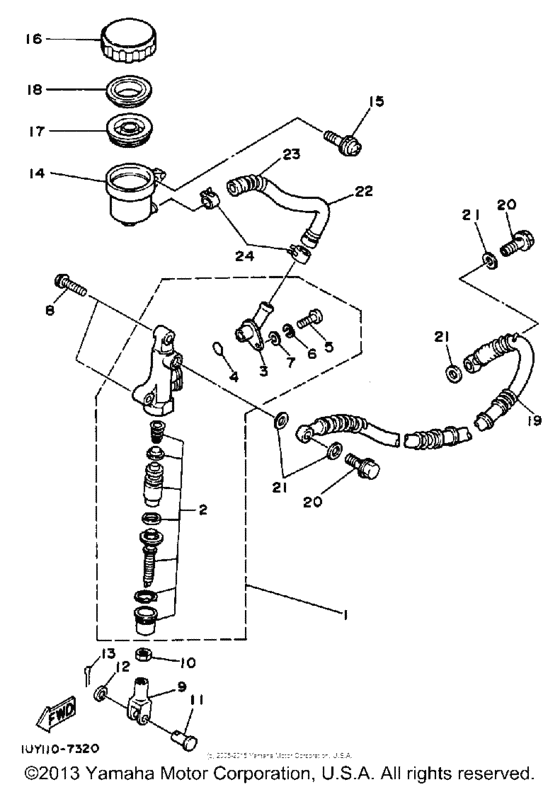

Rear master cylinder Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29L-25850-51-00
Master Cylinder Assy
|
29L-25850-51-00 |
— | ||
|
2
|
2
29L-W0042-50-00 Cylinder Kit, Master |
29L-W0042-50-00 |
from US $58.93 |
||
| replacement | |||||
|
2
|
2
4GY-W0042-00-00 Cylinder Kit, Master |
4GY-W0042-00-00 |
from US $76.68 |
||
|
3
|
3
29L-2582A-50-00 Connector |
29L-2582A-50-00 |
from US $13.88 |
||
|
4
|
4
93210-15620-00 O-Ring |
93210-15620-00 |
from US $1.35 |
||
| replacement | |||||
|
4
|
4
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.35 |
||
|
5
|
5
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
6
|
6
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
7
|
7
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
7
|
7
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
8
|
8
92016-08030-00 Bolt, Button Head |
92016-08030-00 |
from US $1.98 |
||
| replacement | |||||
|
8
|
8
92017-08030-00 Bolt, Button Head |
92017-08030-00 |
from US $1.98 |
||
|
9
|
9
31A-27222-00-00 Joint |
31A-27222-00-00 |
from US $30.04 |
||
|
10
|
10
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
11
|
11
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.66 |
||
|
12
|
12
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
13
|
13
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
14
|
14
47X-25894-00-00 Tank, Reservoir |
47X-25894-00-00 |
from US $21.68 |
||
|
15
|
15
90159-06056-00 Screw, With Washer |
90159-06056-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
901-59068-47-00 Screw, With Washer |
901-59068-47-00 |
from US $1.70 |
||
|
16
|
16
2KF-25852-50-00 Cap, Reservoir |
2KF-25852-50-00 |
from US $7.23 |
||
|
17
|
17
360-25854-00-00 Diaphragm, Reservoir |
360-25854-00-00 |
from US $15.58 |
||
| replacement | |||||
|
17
|
17
360-25854-01-00 Gasket, Diaphragm |
360-25854-01-00 |
from US $15.58 |
||
|
18
|
18
2GU-25855-00-00 Bush,diaphragm |
2GU-25855-00-00 |
from US $10.92 |
||
|
19
|
19
1UY-25872-51-00
Hose, Brake 1
|
1UY-25872-51-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99025-99-00
Brake Hose Set(1Uy)
|
999-99025-99-00 |
— | ||
|
20
|
20
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
20
|
20
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
21
|
21
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
22
|
22
1UY-25895-00-00 Hose, Reservoir |
1UY-25895-00-00 |
US $30.80 |
||
|
23
|
23
90501-102E8-00 Spring, Compression |
90501-102E8-00 |
US $12.08 |
||
|
24
|
24
90467-14057-00 Clip |
90467-14057-00 |
from US $1.28 |
||
