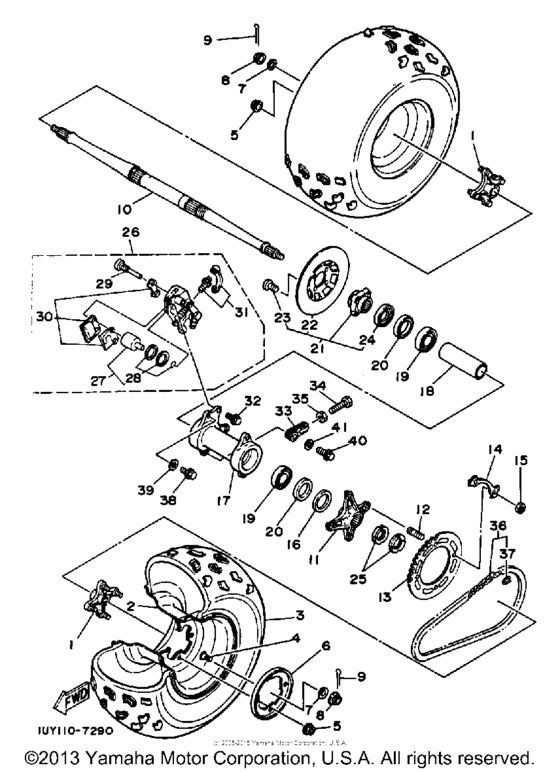

Rear wheel Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-25383-11-00 Wheel Shaft Collar Assy |
2GU-25383-11-00 |
from US $93.81 |
||
| replacement | |||||
|
1
|
1
1PE-F53K0-00-00 Wheel Shaft Collar Assy |
1PE-F53K0-00-00 |
from US $93.81 |
||
|
2
|
2
1UY-25390-00-7H
Wheel, Rear
|
1UY-25390-00-7H |
— | ||
|
3
|
3
94110-090X4-00
Tire (At22X10-9*kt775B T/l N)
N DUNLOP |
94110-090X4-00 |
— | ||
|
4
|
4
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
5
|
5
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
5
|
5
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
5
|
5
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
6
|
6
1UY-2538F-00-00
Reinforcement
|
1UY-2538F-00-00 |
— | ||
|
7
|
7
90201-140A6-00 Washer, Plate |
90201-140A6-00 |
US $3.83 |
||
| replacement | |||||
|
7
|
7
90201-14022-00 Washer, Plate |
90201-14022-00 |
from US $3.83 |
||
|
8
|
8
90171-14037-00 Nut, Castle (29U) |
90171-14037-00 |
from US $5.64 |
||
|
9
|
9
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
9
|
9
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
10
|
10
3GD-25381-00-00 Axle, Wheel |
3GD-25381-00-00 |
from US $650.76 |
||
|
11
|
11
1UY-25386-01-00
Collar,sprckt.axle
|
1UY-25386-01-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99031-11-00
Collor Set(With Sprocket),1Uy2
|
999-99031-11-00 |
— | ||
|
12
|
12
90116-10483-00 Bolt, Stud |
90116-10483-00 |
from US $3.54 |
||
|
13
|
13
43F-25440-50-00 Sprocket, Driven 40T (39F-2544040T 39F-25440 |
43F-25440-50-00 |
from US $54.21 |
||
|
14
|
14
5Y1-25412-00-00 Washer |
5Y1-25412-00-00 |
from US $13.45 |
||
|
15
|
15
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
15
|
15
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
15
|
15
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
16
|
16
1UY-25367-00-00 Cover, Hub Dust |
1UY-25367-00-00 |
from US $4.25 |
||
|
17
|
17
1UY-25311-02-35
Hub, Rear
|
1UY-25311-02-35 |
— | ||
|
18
|
18
1UY-25317-00-00
Spacer, Bearing
|
1UY-25317-00-00 |
— | ||
|
19
|
19
93306-00804-00 Bearing(1Ev) |
93306-00804-00 |
from US $48.08 |
||
|
20
|
20
93102-48370-00 Oil Seal |
93102-48370-00 |
from US $13.88 |
||
|
21
|
21
1UY-25830-00-00
Disc Brake Assembly
|
1UY-25830-00-00 |
— | ||
|
22
|
22
1UY-25831-50-00
Disc, Brake
|
1UY-25831-50-00 |
— | ||
|
23
|
23
90109-08789-00 Bolt (34L) |
90109-08789-00 |
from US $2.27 |
||
|
24
|
24
1UY-25367-00-00 Cover, Hub Dust |
1UY-25367-00-00 |
from US $4.25 |
||
|
25
|
25
901-79385-32-00
Nut
|
901-79385-32-00 |
— | ||
|
26
|
26
1UY-2580W-00-00 Caliper Assy, Rear 2 |
1UY-2580W-00-00 |
from US $624.13 |
||
| replacements | |||||
|
26
|
26
1UY-2580W-01-00 Caliper Assy, Rear 2 |
1UY-2580W-01-00 |
from US $491.29 |
||
|
26
|
26
1UY-2580W-02-00 Caliper Assy, Rear 2 |
1UY-2580W-02-00 |
US $745.63 |
||
|
27
|
27
1UY-W0057-50-00 Piston Assy, Caliper |
1UY-W0057-50-00 |
from US $76.13 |
||
|
28
|
28
1UY-W0047-50-00 Caliper Seal Kit |
1UY-W0047-50-00 |
from US $19.30 |
||
|
29
|
29
1UY-25924-51-00 Pin, Pad |
1UY-25924-51-00 |
from US $10.48 |
||
|
30
|
30
1UY-W0046-00-00 Brake Pad Kit 2 |
1UY-W0046-00-00 |
from US $58.10 |
||
| replacement | |||||
|
30
|
30
1UY-W0046-01-00 BRAKE PAD KIT 2 |
1UY-W0046-01-00 |
from US $54.74 |
||
|
31
|
31
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $4.64 |
||
|
32
|
32
90105-08440-00 Bolt, Flange |
90105-08440-00 |
from US $1.98 |
||
|
33
|
33
1UY-25388-00-00 Puller, Chain 1 |
1UY-25388-00-00 |
from US $19.27 |
||
|
34
|
34
90101-08615-00 Bolt |
90101-08615-00 |
from US $1.70 |
||
| replacement | |||||
|
34
|
34
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.66 |
||
|
35
|
35
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
35
|
35
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
36
|
36
94581-08100-00
Did 520V6-100Fb
520V6-100FB |
94581-08100-00 |
— | ||
|
37
|
37
94680-50011-00
Joint, Chain (34L) (D.i.d.50H
34L D.I.D.50H |
94680-50011-00 |
— | ||
|
38
|
38
901-05124-62-00 Flange Bolt |
901-05124-62-00 |
from US $8.19 |
||
| replacement | |||||
|
38
|
38
999-99034-87-00 Bolt, Flange |
999-99034-87-00 |
from US $7.78 |
||
|
39
|
39
90201-120A5-00 Washer, Plate |
90201-120A5-00 |
from US $4.39 |
||
|
40
|
40
901-05104-18-00
Bolt, Washer Based
|
901-05104-18-00 |
— | ||
|
41
|
41
90201-106F2-00 Washer, Plate (17K) |
90201-106F2-00 |
from US $1.66 |
||
