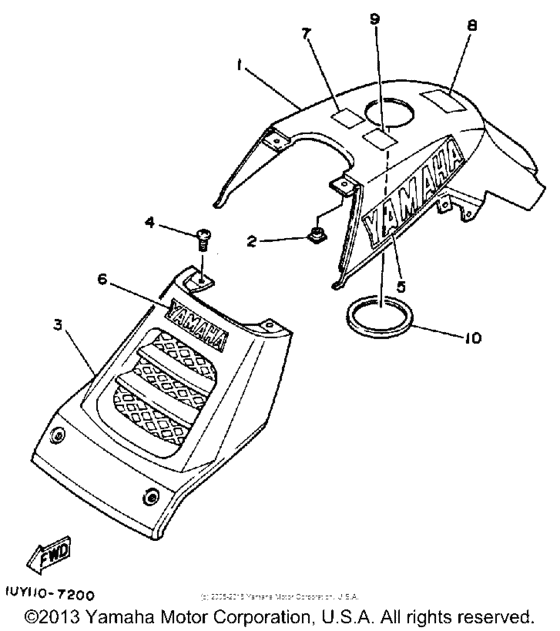

Side cover Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-2171A-00-00
Cover, Top
UR FAR- AWAY BLUE |
1UY-2171A-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR FAR- AWAY BLUE |
999-99999-99-00 |
— | ||
|
1
|
1
1UY-2171A-10-00
Cover, Top
|
1UY-2171A-10-00 |
— | ||
|
2
|
2
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
2
|
2
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
3
|
3
1UY-23391-10-00
Panel, Front
|
1UY-23391-10-00 |
— | ||
|
3
|
3
1UY-23391-00-00
Panel, Front
UR FAR- AWAY BLUE |
1UY-23391-00-00 |
— | ||
|
4
|
4
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.70 |
||
|
5
|
5
1UY-21781-00-00
Emblem 1
Use for Color FARAWAY BLUE FWB / 00NJ |
1UY-21781-00-00 |
— | ||
|
5
|
5
1UY-21781-10-00
Emblem 1
Use for Color YAMAHA BLACK YB / 0033 |
1UY-21781-10-00 |
— | ||
|
6
|
6
1UY-21785-00-00
Emblem 5
Use for Color FARAWAY BLUE FWB / 00NJ |
1UY-21785-00-00 |
— | ||
|
6
|
6
1UY-21785-10-00
Emblem 5
Use for Color YAMAHA BLACK YB / 0033 |
1UY-21785-10-00 |
— | ||
|
7
|
7
1RX-21578-00-00
Emblem
|
1RX-21578-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
1UY-26139-00-00
Label, Choke
|
1UY-26139-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
1UY-2178A-00-00
Label, Oil
|
1UY-2178A-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
1UY-21778-00-00
Damper, Locating 1
|
1UY-21778-00-00 |
— | ||
