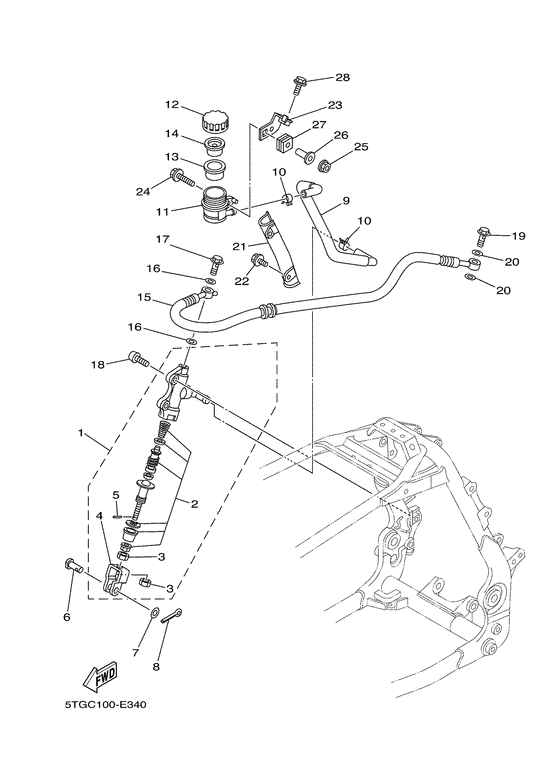

Rear master cylinder Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5D31
- Engine Capacity
- 449
- Year
- 2007
- Sales region
- Australia (020)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5TG-2580E-20-00 Rear Master Cylinder Assy |
5TG-2580E-20-00 |
from US $127.80 |
||
|
02
|
02
5TG-W0042-50-00 Cylinder Kit, Master |
5TG-W0042-50-00 |
from US $82.89 |
||
|
03
|
03
4SS-27218-00-00 Nut |
4SS-27218-00-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.56 |
||
|
04
|
04
2YK-27222-00-00 Joint |
2YK-27222-00-00 |
from US $7.65 |
||
|
05
|
05
3KW-27234-00-00 Pin, Brake Rod |
3KW-27234-00-00 |
from US $4.11 |
||
|
06
|
06
90240-08124-00 Pin, Clevis |
90240-08124-00 |
from US $1.84 |
||
|
07
|
07
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
08
|
08
914-01160-12-00
Pin, Cotter
|
914-01160-12-00 |
— | ||
| replacement | |||||
|
08
|
08
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
09
|
09
5TG-25895-10-00 Hose, Reservoir |
5TG-25895-10-00 |
from US $30.46 |
||
|
10
|
10
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
11
|
11
5TG-25894-00-00 Tank, Reservoir |
5TG-25894-00-00 |
from US $15.44 |
||
|
12
|
12
3XP-25852-50-00 Cap, Reservoir |
3XP-25852-50-00 |
from US $8.60 |
||
|
13
|
13
2VN-25854-00-00 Diaphragm, Reservoir |
2VN-25854-00-00 |
from US $7.94 |
||
|
14
|
14
2VN-25855-00-00 Bush,diaphragm |
2VN-25855-00-00 |
from US $6.52 |
||
|
15
|
15
5TG-25874-20-00 Hose, Brake |
5TG-25874-20-00 |
from US $48.83 |
||
| replacement | |||||
|
15
|
15
5TG-25874-30-00 Hose, Brake |
5TG-25874-30-00 |
from US $67.91 |
||
|
16
|
16
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
17
|
17
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
18
|
18
92012-08025-00 Bolt, Button Head |
92012-08025-00 |
from US $1.34 |
||
|
19
|
19
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
20
|
20
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
20
|
20
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
21
|
21
5TG-2587A-00-00 Holder, Brake Hose |
5TG-2587A-00-00 |
from US $35.42 |
||
|
22
|
22
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.34 |
||
|
23
|
23
5TG-21228-10-00 Bracket, Reserve Tank |
5TG-21228-10-00 |
from US $6.09 |
||
|
24
|
24
90105-05331-00 Bolt, Flange |
90105-05331-00 |
from US $1.70 |
||
|
25
|
25
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
26
|
26
90387-05016-00 Collar |
90387-05016-00 |
from US $8.38 |
||
|
27
|
27
90480-10011-00 Grommet |
90480-10011-00 |
from US $1.80 |
||
|
28
|
28
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
28
|
28
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
28
|
28
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
