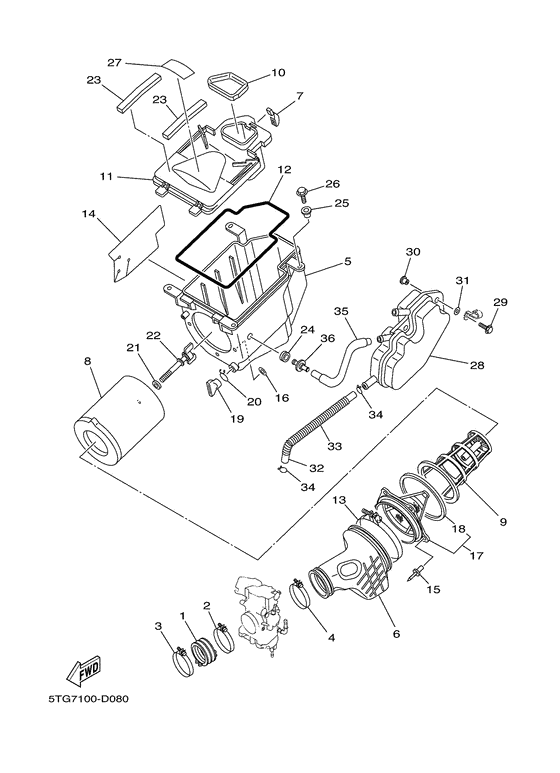

Intake Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5D3B
- Engine Capacity
- 449
- Year
- 2008
- Sales region
- Japan (030)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5XD-13597-10-00 Joint, Carburetor 3 |
5XD-13597-10-00 |
from US $16.54 |
||
|
02
|
02
90450-57013-00 Hose Clamp Assy |
90450-57013-00 |
from US $12.61 |
||
|
03
|
03
90450-59005-00 Hose Clamp Assy |
90450-59005-00 |
from US $12.61 |
||
|
04
|
04
90450-61002-00 Hose Clamp Assy |
90450-61002-00 |
from US $11.05 |
||
|
05
|
05
5TG-14411-00-00 Case, Air Cleaner 1 |
5TG-14411-00-00 |
from US $33.58 |
||
|
06
|
06
5TG-14453-01-00 Joint, Air Cleaner 1 |
5TG-14453-01-00 |
from US $80.93 |
||
| replacement | |||||
|
06
|
06
5TG-14453-02-00 |
5TG-14453-02-00 |
US $78.34 |
||
|
07
|
07
5GH-14436-00-00 Hook |
5GH-14436-00-00 |
from US $3.12 |
||
| replacement | |||||
|
07
|
07
5TH-14436-00-00 Hook |
5TH-14436-00-00 |
from US $2.32 |
||
|
08
|
08
5TG-14451-00-00 Element, Air Cleaner |
5TG-14451-00-00 |
from US $35.14 |
||
| replacement | |||||
|
08
|
08
5TG-14451-01-00 ELEMENT AIR CLEANER |
5TG-14451-01-00 |
from US $35.14 |
||
|
09
|
09
5TG-14458-00-00 Guide |
5TG-14458-00-00 |
from US $10.63 |
||
|
10
|
10
5TG-14479-00-00 Funnel |
5TG-14479-00-00 |
from US $12.89 |
||
|
11
|
11
5TG-14412-01-00 Cap, Cleaner Case 1 |
5TG-14412-01-00 |
from US $18.99 |
||
|
12
|
12
4FU-14452-00-00 Seal |
4FU-14452-00-00 |
from US $9.49 |
||
| replacement | |||||
|
12
|
12
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $7.62 |
||
|
13
|
13
90450-99007-00 Hose Clamp Assy |
90450-99007-00 |
from US $15.58 |
||
|
14
|
14
5TG-1442F-00-00 Protector |
5TG-1442F-00-00 |
from US $10.34 |
||
|
15
|
15
90267-48138-00 Rivet, Blind |
90267-48138-00 |
from US $1.84 |
||
|
16
|
16
90201-04028-00 Washer, Plate |
90201-04028-00 |
from US $1.70 |
||
|
17
|
17
5D3-14459-00-00 Holder, Guide |
5D3-14459-00-00 |
from US $28.90 |
||
|
18
|
18
4ES-14462-00-00 Seal |
4ES-14462-00-00 |
from US $5.81 |
||
|
19
|
19
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $2.66 |
||
|
20
|
20
90467-220A1-00 Clip |
90467-220A1-00 |
from US $1.70 |
||
|
21
|
21
90209-06014-00 Washer |
90209-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
21
|
21
90209-06096-00 Washer |
90209-06096-00 |
from US $1.84 |
||
|
22
|
22
90122-06010-00 Bolt, Wing |
90122-06010-00 |
from US $4.30 |
||
|
23
|
23
5TG-14409-00-00 Damper |
5TG-14409-00-00 |
from US $3.40 |
||
|
24
|
24
31A-14435-00-00 Grommet |
31A-14435-00-00 |
from US $5.38 |
||
| replacement | |||||
|
24
|
24
31A-14435-01-00 |
31A-14435-01-00 |
from US $5.38 |
||
|
25
|
25
90387-08073-00 Collar |
90387-08073-00 |
from US $5.67 |
||
|
26
|
26
90105-06084-00 Bolt, Flange |
90105-06084-00 |
from US $1.34 |
||
|
28
|
28
5TG-15370-00-00 Breather Assy |
5TG-15370-00-00 |
from US $26.21 |
||
|
29
|
29
90105-06084-00 Bolt, Flange |
90105-06084-00 |
from US $1.34 |
||
|
30
|
30
90387-07018-00 Collar |
90387-07018-00 |
from US $8.08 |
||
|
31
|
31
90201-06078-00 Washer, Plate |
90201-06078-00 |
from US $1.70 |
||
|
32
|
32
5TG-1531A-00-00 Hose, Breather 1 |
5TG-1531A-00-00 |
from US $19.55 |
||
|
33
|
33
90501-100A2-00 Spring, Compression |
90501-100A2-00 |
from US $9.49 |
||
|
34
|
34
90467-140A4-00 Clip |
90467-140A4-00 |
from US $1.34 |
||
|
35
|
35
5TG-1532A-00-00 Hose, Breather 2 |
5TG-1532A-00-00 |
from US $17 |
||
|
36
|
36
5TG-14419-00-00 Pipe |
5TG-14419-00-00 |
from US $4.53 |
||
