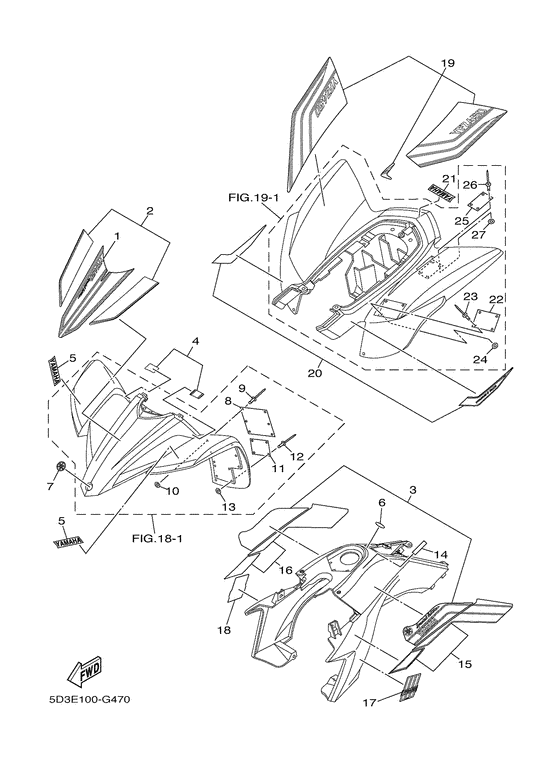

Emblem & label 4 Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5D3E
- Engine Capacity
- 449
- Year
- 2008
- Sales region
- Australia (020)
- Colour
- Black Metallic J (SMJ; 0906)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5D3-21569-60-00 Graphic 1 |
5D3-21569-60-00 |
US $90.54 |
||
|
02
|
02
5D3-2159B-00-00 Graphic Set 2 |
5D3-2159B-00-00 |
from US $78.21 |
||
|
03
|
03
5D3-24250-60-00 Graphic Set |
5D3-24250-60-00 |
US $281.18 |
||
|
04
|
04
5D3-24230-60-00 Graphic Set |
5D3-24230-60-00 |
US $20.77 |
||
|
05
|
05
3GD-2153E-20-00 Emblem, Yamaha |
3GD-2153E-20-00 |
from US $4.79 |
||
| replacement | |||||
|
05
|
05
3GD-2153E-21-00 Emblem |
3GD-2153E-21-00 |
US $4.39 |
||
|
06
|
06
5D3-2164B-00-00 Emblem, 3D |
5D3-2164B-00-00 |
US $31.48 |
||
|
07
|
07
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $17.86 |
||
|
08
|
08
5FE-21568-11-00 Label, WarningEnglish |
5FE-21568-11-00 |
from US $25.80 |
||
|
09
|
09
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
10
|
10
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
11
|
11
5FE-21697-01-00
Label, Warning Age
English |
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
11
|
11
4D3-2816L-00-00 Label, Warning AgeEnglish |
4D3-2816L-00-00 |
from US $17.86 |
||
|
12
|
12
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
13
|
13
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
14
|
14
5TG-2415E-10-00
Label, caution
|
5TG-2415E-10-00 |
— | ||
|
15
|
15
5D3-2173L-20-00 Graphic Set 1 |
5D3-2173L-20-00 |
US $140.69 |
||
|
16
|
16
5D3-2174L-20-00 Graphic Set 2 |
5D3-2174L-20-00 |
US $162.92 |
||
|
17
|
17
5D3-21781-20-00 Emblem 1 |
5D3-21781-20-00 |
US $39.64 |
||
| replacement | |||||
|
17
|
17
5D3-21781-29-00 Emblem 1 |
5D3-21781-29-00 |
US $39.64 |
||
|
18
|
18
5D3-21782-20-00 Emblem 2 |
5D3-21782-20-00 |
US $38.93 |
||
|
19
|
19
5D3-2165A-60-00 Graphic Set, Rear Fender |
5D3-2165A-60-00 |
US $265.50 |
||
|
20
|
20
5D3-2165B-20-00 Graphic Set, Rear Fender |
5D3-2165B-20-00 |
US $124.42 |
||
|
21
|
21
4ES-2153E-20-00 Emblem, Yamaha |
4ES-2153E-20-00 |
from US $3.13 |
||
| replacement | |||||
|
21
|
21
4ES-2153E-21-00 |
4ES-2153E-21-00 |
US $4.64 |
||
|
22
|
22
5TG-21696-30-00 Label, Caution |
5TG-21696-30-00 |
from US $31.03 |
||
|
23
|
23
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
24
|
24
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
25
|
25
5FE-2151H-01-00 Label 5English |
5FE-2151H-01-00 |
from US $23.80 |
||
|
26
|
26
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
27
|
27
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
