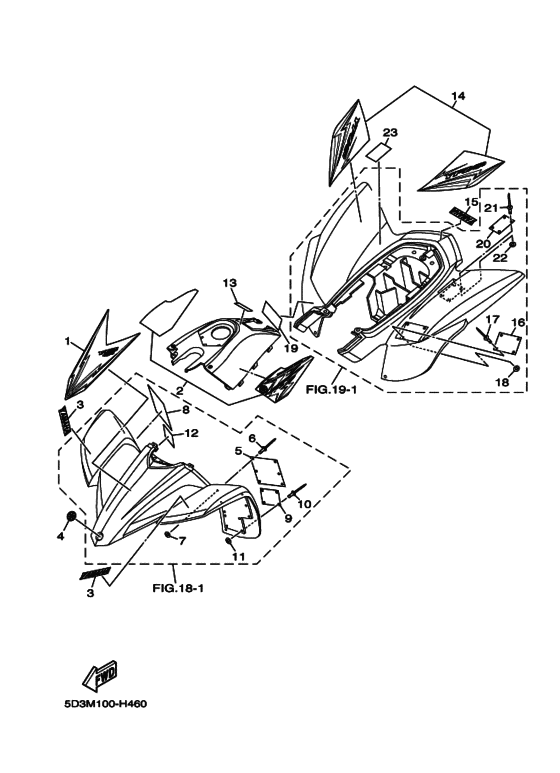

Emblem & label 3 (JPN) Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5D3M
- Engine Capacity
- 449
- Year
- 2009
- Sales region
- Japan (020)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5D3-21569-80-00 Graphic 1ＧＲＡＰＨＩＣ， １; |
5D3-21569-80-00 |
from US $40.58 |
||
|
2
|
2
5D3-24250-80-00 Graphic Set 2ＧＲＡＰＨＩＣ ＳＥＴ; |
5D3-24250-80-00 |
from US $74.86 |
||
|
3
|
3
3GD-2153E-00-00 Emblem, YamahaＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
3
|
3
3GD-2153E-01-00 EMBLEM YAMAHAＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
3GD-2153E-01-00 |
from US $5.07 |
||
|
4
|
4
4KN-2836B-10-00 Tuning Fork MarkＴＵＮＩＮＧ ＦＯＲＫ ＭＡＲＫ; |
4KN-2836B-10-00 |
from US $17.86 |
||
|
5
|
5
5FE-21568-11-00 Label, WarningＬＡＢＥＬ， ＷＡＲＮＩＮＧ; ＥＮＧＬＩＳＨ |
5FE-21568-11-00 |
from US $25.80 |
||
|
6
|
6
90267-32004-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32004-00 |
from US $2.13 |
||
|
7
|
7
90201-03008-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-03008-00 |
from US $1.70 |
||
|
8
|
8
4SH-21568-00-00 Label, WarningＬＡＢＥＬ， ＷＡＲＮＩＮＧ; ＪＡＰＡＮＥＳＥ |
4SH-21568-00-00 |
US $21.15 |
||
|
9
|
9
4D3-2816L-00-00 Label, Warning AgeＬＡＢＥＬ， ＷＡＲＮＩＮＧ ＡＧＥ; ＥＮＧＬＩＳＨ |
4D3-2816L-00-00 |
from US $17.86 |
||
|
10
|
10
90267-32004-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32004-00 |
from US $2.13 |
||
|
11
|
11
90201-03008-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-03008-00 |
from US $1.70 |
||
|
12
|
12
4SH-21697-00-00 Label, Caution 2ＬＡＢＥＬ， ＣＡＵＴＩＯＮ ２; ＪＡＰＡＮＥＳＥ |
4SH-21697-00-00 |
US $14.17 |
||
|
13
|
13
3FB-2415E-C1-00 Label, Caution (JP)ＬＡＢＥＬ， ＣＡＵＴＩＯＮ; ＪＡＰＡＮＥＳＥ |
3FB-2415E-C1-00 |
US $15.30 |
||
|
14
|
14
5D3-2165A-80-00 Graphic Set, Rear FenderＧＲＡＰＨＩＣ ＳＥＴ，ＲＥＡＲ ＦＥＮＤＥＲ; |
5D3-2165A-80-00 |
from US $44.46 |
||
|
15
|
15
4ES-2153E-40-00 Emblem, YamahaＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
4ES-2153E-40-00 |
from US $4.53 |
||
| replacement | |||||
|
15
|
15
4ES-2153E-41-00 ＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
4ES-2153E-41-00 |
US $4.46 |
||
|
16
|
16
5D3-2816M-00-00 Label, Warning Tire & LoadＬＡＢＥＬ， ＷＡＲＮＩＮＧ ＴＩＲＥ ＆ａｍｐ； ＬＯＡＤ; ＥＮＧＬＩＳＨ |
5D3-2816M-00-00 |
US $10.20 |
||
|
17
|
17
90267-32004-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32004-00 |
from US $2.13 |
||
|
18
|
18
90201-03008-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-03008-00 |
from US $1.70 |
||
|
19
|
19
5D3-2816M-20-00 Label, Warning Tire & LoadＬＡＢＥＬ， ＷＡＲＮＩＮＧ ＴＩＲＥ ＆ａｍｐ； ＬＯＡＤ; ＪＡＰＡＮＥＳＥ |
5D3-2816M-20-00 |
US $10.20 |
||
|
20
|
20
5FE-2151H-01-00 Label 5ＬＡＢＥＬ ５; ＥＮＧＬＩＳＨ |
5FE-2151H-01-00 |
from US $23.80 |
||
|
21
|
21
90267-32004-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32004-00 |
from US $2.13 |
||
|
22
|
22
90201-03008-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-03008-00 |
from US $1.70 |
||
|
23
|
23
4LB-2151H-02-00 Label 5ＬＡＢＥＬ ５; ＪＡＰＡＮＥＳＥ |
4LB-2151H-02-00 |
US $11.19 |
||
