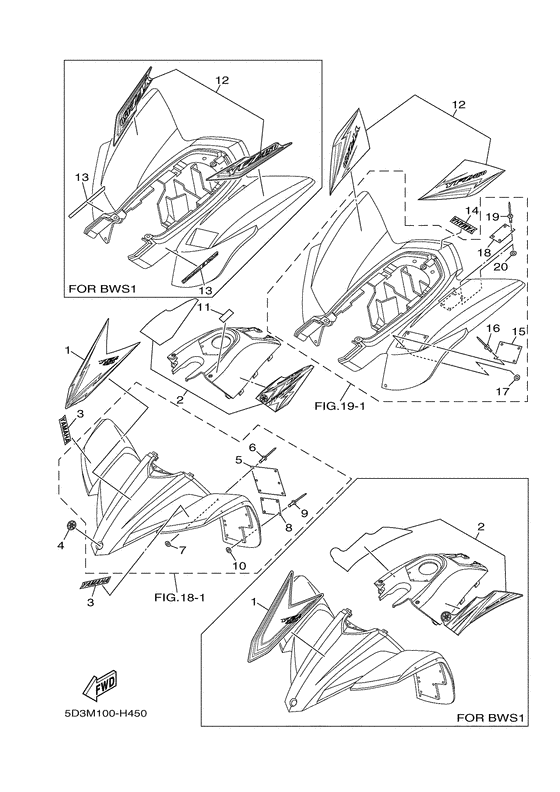

Emblem & label 2 Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5D3P
- Engine Capacity
- 449
- Year
- 2009
- Sales region
- Europe (General) (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5D3-21569-80-00 Graphic 1Ur for dpbse |
5D3-21569-80-00 |
from US $40.58 |
||
|
01
|
01
5D3-21569-90-00 Graphic, 1Ur for bws1 |
5D3-21569-90-00 |
from US $54.44 |
||
|
02
|
02
5D3-24250-80-00 Graphic Set 2Ur for dpbse |
5D3-24250-80-00 |
from US $74.86 |
||
|
02
|
02
5D3-24250-90-00 Graphic SetUr for bws1 |
5D3-24250-90-00 |
from US $83.72 |
||
|
03
|
03
3GD-2153E-00-00 Emblem, YamahaUr for dpbse |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
03
|
03
3GD-2153E-01-00 EMBLEM YAMAHAUr for dpbse |
3GD-2153E-01-00 |
from US $5.07 |
||
|
03
|
03
3GD-2153E-30-00
Emblem, Yamaha
Ur for bws1 |
3GD-2153E-30-00 |
— | ||
| replacement | |||||
|
03
|
03
3GD-2153E-31-00 EMBLEM, YAMAHAUr for bws1 |
3GD-2153E-31-00 |
from US $2.98 |
||
|
04
|
04
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $17.86 |
||
|
05
|
05
5FK-21568-00-00 Label, Warning |
5FK-21568-00-00 |
US $59.55 |
||
|
06
|
06
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
07
|
07
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
08
|
08
5FK-21697-00-00 Label, Caution 2 |
5FK-21697-00-00 |
US $47.11 |
||
|
09
|
09
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
10
|
10
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
11
|
11
5TG-2415E-00-00
Label, Caution
|
5TG-2415E-00-00 |
— | ||
|
12
|
12
5D3-2165A-80-00 Graphic Set, Rear FenderUr for dpbse |
5D3-2165A-80-00 |
from US $44.46 |
||
|
12
|
12
5D3-2165A-90-00 Graphic Set, Rear FenderUr for bws1 |
5D3-2165A-90-00 |
from US $34.99 |
||
|
13
|
13
5D3-2163G-20-00 Emblem 1For bws1 |
5D3-2163G-20-00 |
from US $3.30 |
||
|
14
|
14
4ES-2153E-20-00 Emblem, YamahaUr for bws1 |
4ES-2153E-20-00 |
from US $3.13 |
||
| replacement | |||||
|
14
|
14
4ES-2153E-21-00 Ur for bws1 |
4ES-2153E-21-00 |
US $4.64 |
||
|
14
|
14
4ES-2153E-40-00 Emblem, YamahaUr for dpbse |
4ES-2153E-40-00 |
from US $4.53 |
||
| replacement | |||||
|
14
|
14
4ES-2153E-41-00 Ur for dpbse |
4ES-2153E-41-00 |
US $4.46 |
||
|
15
|
15
5TG-21696-40-00
Label, Caution
|
5TG-21696-40-00 |
— | ||
|
16
|
16
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
17
|
17
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
18
|
18
5FK-2151H-00-00
Label 5
|
5FK-2151H-00-00 |
— | ||
|
19
|
19
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
20
|
20
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
