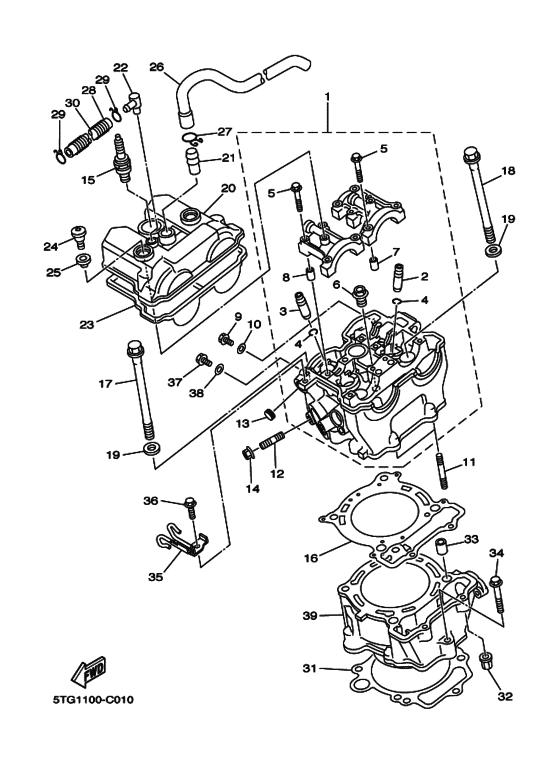

Cylinder Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TG1
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- Japan (030)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TA-11102-10-00 Cylinder Head AssyＣＹＬＩＮＤＥＲ ＨＥＡＤ ＡＳＳＹ; |
5TA-11102-10-00 |
US $1,701.61 |
||
|
2
|
2
5TA-11133-10-00 Guide, Valve 1．ＧＵＩＤＥ， ＶＡＬＶＥ １; |
5TA-11133-10-00 |
from US $34.14 |
||
|
3
|
3
5TA-11134-10-00 Guide, Valve 2．ＧＵＩＤＥ， ＶＡＬＶＥ ２; |
5TA-11134-10-00 |
from US $34.14 |
||
|
4
|
4
93440-10153-00 Circlip．ＣＩＲＣＬＩＰ; |
93440-10153-00 |
from US $1.66 |
||
|
5
|
5
90105-06027-00 Bolt, Flange．ＢＯＬＴ， ＦＬＡＮＧＥ; |
90105-06027-00 |
from US $1.34 |
||
|
6
|
6
90340-12112-00 Plug, Straight Screw．ＰＬＵＧ， ＳＴＲＡＩＧＨＴ ＳＣＲＥＷ; |
90340-12112-00 |
from US $4.11 |
||
|
7
|
7
918-08160-23-00 Pin, Dowel(3Xw)．ＰＩＮ， ＤＯＷＥＬ; |
918-08160-23-00 |
from US $1.34 |
||
|
8
|
8
918-08160-23-00 Pin, Dowel(3Xw)．ＰＩＮ， ＤＯＷＥＬ; |
918-08160-23-00 |
from US $1.34 |
||
|
9
|
9
950-27060-10-00 Bolt, Flange(4My)ＢＯＬＴ， ＦＬＡＮＧＥ; |
950-27060-10-00 |
from US $0.90 |
||
|
10
|
10
904-30060-14-00 Gasket (Copper washer)ＧＡＳＫＥＴ; |
904-30060-14-00 |
from US $1.28 |
||
|
11
|
11
95617-06635-00 Bolt, StudＢＯＬＴ， ＳＴＵＤ; |
95617-06635-00 |
from US $2.13 |
||
|
12
|
12
90116-08018-00 Bolt, StudＢＯＬＴ， ＳＴＵＤ; |
90116-08018-00 |
from US $5.38 |
||
|
13
|
13
90338-18064-00 PlugＰＬＵＧ; |
90338-18064-00 |
from US $3.40 |
||
|
14
|
14
957-07085-00-00
Nut, Flange
ＮＵＴ， ＦＬＡＮＧＥ; |
957-07085-00-00 |
— | ||
| replacement | |||||
|
14
|
14
90179-08491-00 Nut(55X)ＮＵＴ， ＦＬＡＮＧＥ; |
90179-08491-00 |
from US $1.28 |
||
|
15
|
15
947-03004-11-00 Plug, Spark (NGK CR8E)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ Ｒ ＣＲ８Ｅ |
947-03004-11-00 |
US $9.92 |
||
|
16
|
16
5TA-11181-00-00 Gasket, Cylinder Head 1ＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ ＨＥＡＤ １; |
5TA-11181-00-00 |
from US $39.51 |
||
|
17
|
17
901-05104-A7-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
901-05104-A7-00 |
from US $9.92 |
||
|
18
|
18
901-05106-A3-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
901-05106-A3-00 |
from US $5.24 |
||
|
19
|
19
90201-10025-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-10025-00 |
from US $4.39 |
||
|
20
|
20
5TA-11191-00-00 Cover, Cylinder Head 1ＣＯＶＥＲ， ＣＹＬＩＮＤＥＲ ＨＥＡＤ １; |
5TA-11191-00-00 |
US $286.47 |
||
| replacement | |||||
|
20
|
20
5TA-11191-10-00 Cover, Cylinder Head 1ＣＯＶＥＲ， ＣＹＬＩＮＤＥＲ ＨＥＡＤ １; |
5TA-11191-10-00 |
US $286.47 |
||
|
21
|
21
371-11167-01-00 Pipe, Breather 2ＰＩＰＥ， ＢＲＥＡＴＨＥＲ ２; |
371-11167-01-00 |
from US $8.36 |
||
|
22
|
22
5TG-11167-00-00
Pipe, Breather 2
ＰＩＰＥ， ＢＲＥＡＴＨＥＲ ２; |
5TG-11167-00-00 |
— | ||
| replacement | |||||
|
22
|
22
5D3-11167-00-00 Pipe, Breather 2ＰＩＰＥ， ＢＲＥＡＴＨＥＲ ２; |
5D3-11167-00-00 |
from US $16.72 |
||
|
23
|
23
5TA-11193-00-00 Gasket, Head Cover 1ＧＡＳＫＥＴ， ＨＥＡＤ ＣＯＶＥＲ １; |
5TA-11193-00-00 |
from US $27.77 |
||
|
24
|
24
90109-066F0-00 BoltＢＯＬＴ; |
90109-066F0-00 |
from US $3.32 |
||
|
25
|
25
4KG-1111G-00-00
Rubber, Mount 1
ＲＵＢＢＥＲ， ＭＯＵＮＴ １; |
4KG-1111G-00-00 |
— | ||
| replacement | |||||
|
25
|
25
5EA-1111G-00-00 Rubber, Mount 1ＲＵＢＢＥＲ， ＭＯＵＮＴ １; |
5EA-1111G-00-00 |
from US $7.28 |
||
|
26
|
26
5TG-11166-00-00 Pipe, Breather 1ＰＩＰＥ， ＢＲＥＡＴＨＥＲ １; |
5TG-11166-00-00 |
from US $19.27 |
||
|
27
|
27
90467-14015-00 ClipＣＬＩＰ; |
90467-14015-00 |
from US $1.70 |
||
|
28
|
28
904-45111-82-00
Hose (L)
ＨＯＳＥ ; Ｌ３００ |
904-45111-82-00 |
— | ||
| replacement | |||||
|
28
|
28
90445-112E1-00 Hose (L)ＨＯＳＥ ; Ｌ３００ |
90445-112E1-00 |
from US $6.66 |
||
|
29
|
29
90467-11106-00 ClipＣＬＩＰ; |
90467-11106-00 |
from US $1.28 |
||
|
30
|
30
90501-08728-00 Spring, CompressionＳＰＲＩＮＧ， ＣＯＭＰＲＥＳＳＩＯＮ; |
90501-08728-00 |
from US $8.93 |
||
|
31
|
31
5TA-11351-00-00 Gasket, CylinderＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ; |
5TA-11351-00-00 |
from US $7.51 |
||
|
32
|
32
90179-06500-00 NutＮＵＴ; |
90179-06500-00 |
from US $2.13 |
||
|
33
|
33
93612-16254-00 Pin, DowelＰＩＮ， ＤＯＷＥＬ; |
93612-16254-00 |
from US $3.32 |
||
|
34
|
34
95027-06035-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95027-06035-00 |
from US $1.42 |
||
| replacement | |||||
|
34
|
34
90105-06X19-00 Bolt, FlangeBolt, washer based ＢＯＬＴ， ＦＬＡＮＧＥ; |
90105-06X19-00 |
US $2.81 |
||
|
35
|
35
5TG-11395-00-00
Holder
ＨＯＬＤＥＲ; |
5TG-11395-00-00 |
— | ||
| replacement | |||||
|
35
|
35
5D3-11395-00-00 HolderＨＯＬＤＥＲ; |
5D3-11395-00-00 |
from US $15.30 |
||
|
36
|
36
95827-06014-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
36
|
36
95817-06014-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95817-06014-00 |
from US $1.07 |
||
|
37
|
37
90109-06418-00 BoltＢＯＬＴ; |
90109-06418-00 |
from US $1.70 |
||
|
38
|
38
904-30060-14-00 Gasket (Copper washer)ＧＡＳＫＥＴ; |
904-30060-14-00 |
from US $1.28 |
||
|
39
|
39
5TA-11311-01-00
Cylinder 1
ＣＹＬＩＮＤＥＲ １; 参照 |
5TA-11311-01-00 |
— | ||
| replacement | |||||
|
39
|
39
5TA-11311-12-00 Cylinder 1ＣＹＬＩＮＤＥＲ １; 参照 |
5TA-11311-12-00 |
from US $464.50 |
||
