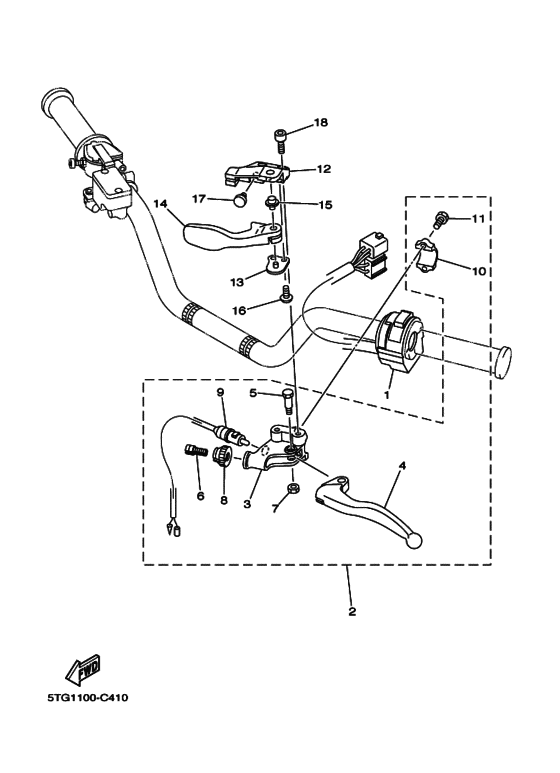

Handle switch & lever Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TG3
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- Europe (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TG-83973-00-00 Switch, Handle 3 |
5TG-83973-00-00 |
from US $167.17 |
||
| replacement | |||||
|
1
|
1
5TG-83973-09-00 Switch, Handle 3 |
5TG-83973-09-00 |
from US $176.76 |
||
|
2
|
2
5TG-82910-00-00 Lever Holder Assy (L |
5TG-82910-00-00 |
from US $160.27 |
||
| replacements | |||||
|
2
|
2
5TG-82910-02-00 Lever Holder Assy (Left) |
5TG-82910-02-00 |
from US $121.76 |
||
|
2
|
2
5TG-82910-03-00 |
5TG-82910-03-00 |
US $157.77 |
||
|
3
|
3
5TG-82911-00-00 Holder, Lever 1 |
5TG-82911-00-00 |
from US $24.68 |
||
| replacement | |||||
|
3
|
3
5TG-82911-01-00 Holder, Lever 1 |
5TG-82911-01-00 |
from US $30.74 |
||
|
4
|
4
5TJ-83912-00-00 Lever 1 |
5TJ-83912-00-00 |
from US $23.94 |
||
| replacement | |||||
|
4
|
4
5TJ-83912-01-00 Lever 1 |
5TJ-83912-01-00 |
from US $17.54 |
||
|
5
|
5
90109-06027-00 Bolt |
90109-06027-00 |
from US $5.24 |
||
|
6
|
6
5TA-26337-00-00 Bolt, Adjusting |
5TA-26337-00-00 |
from US $9.26 |
||
|
7
|
7
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
8
|
8
5HD-83951-00-00 Bolt, Cable Adjusting |
5HD-83951-00-00 |
from US $27.91 |
||
|
9
|
9
1UY-82917-00-00 Front Stop Switch Assy |
1UY-82917-00-00 |
from US $47.27 |
||
| replacement | |||||
|
9
|
9
1YW-83980-00-00 Front Stop Switch Assy |
1YW-83980-00-00 |
from US $60.38 |
||
|
10
|
10
5TG-82913-00-00 Holder, Lever Lower 1 |
5TG-82913-00-00 |
from US $7.23 |
||
|
11
|
11
97007-05016-00 Bolt, Hex. Head |
97007-05016-00 |
from US $2.41 |
||
| replacement | |||||
|
11
|
11
97017-05016-00 Bolt, Hex. Head |
97017-05016-00 |
from US $2.41 |
||
|
12
|
12
5TG-25727-00-00 Bracket, Lever |
5TG-25727-00-00 |
from US $28.90 |
||
| replacement | |||||
|
12
|
12
5TG-25727-01-00 Bracket, Lever |
5TG-25727-01-00 |
from US $26.78 |
||
|
13
|
13
5TG-25689-00-00 Plate, Guide |
5TG-25689-00-00 |
from US $4.11 |
||
| replacement | |||||
|
13
|
13
5D3-25689-00-00 Plate, Guide |
5D3-25689-00-00 |
from US $3.64 |
||
|
14
|
14
5TG-25726-00-00 Lever, Brake |
5TG-25726-00-00 |
from US $26.49 |
||
| replacement | |||||
|
14
|
14
5TG-25726-01-00 Lever, Brake |
5TG-25726-01-00 |
from US $24.48 |
||
|
15
|
15
5TG-83923-00-00 Collar, Lever 2 |
5TG-83923-00-00 |
from US $7.62 |
||
|
16
|
16
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.56 |
||
|
17
|
17
90338-07007-00 Plug |
90338-07007-00 |
from US $1.84 |
||
|
18
|
18
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.56 |
||
