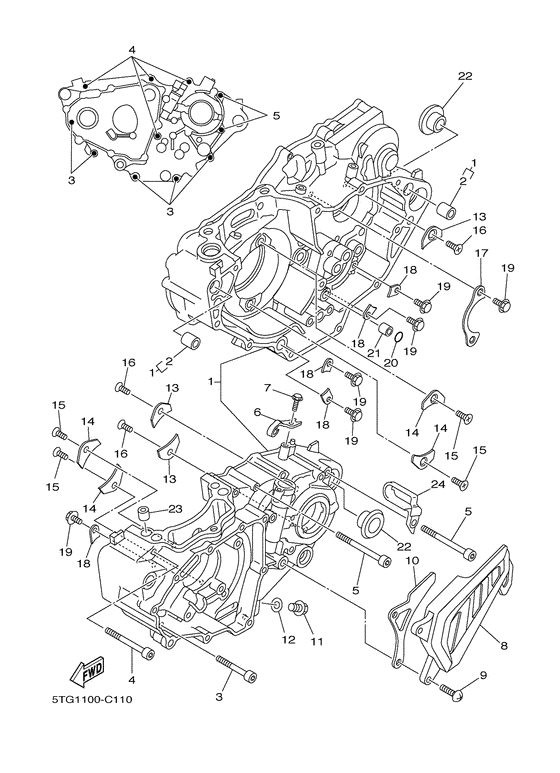

Crankcase Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TG4
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- Australia (020)
- Colour
- Black Metallic J (SMJ; 0906)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5TG-15100-00-00 Crankcase Assy |
5TG-15100-00-00 |
from US $755.80 |
||
| replacement | |||||
|
01
|
01
999-99035-08-00 Crankcase Set |
999-99035-08-00 |
from US $582.63 |
||
|
02
|
02
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
03
|
03
91317-06050-00 Bolt |
91317-06050-00 |
from US $1.07 |
||
|
04
|
04
91317-06060-00 Bolt |
91317-06060-00 |
from US $1.42 |
||
|
05
|
05
91317-06075-00 Bolt, Socket |
91317-06075-00 |
from US $1.50 |
||
|
06
|
06
5TG-15441-00-00 Holder, Clutch Cable |
5TG-15441-00-00 |
from US $5 |
||
|
07
|
07
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
07
|
07
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.41 |
||
|
08
|
08
5TA-15421-00-00 Cover, Crankcase 2 |
5TA-15421-00-00 |
from US $17.14 |
||
| replacement | |||||
|
08
|
08
5TA-15421-10-00 Cover, Crankcase 2 |
5TA-15421-10-00 |
from US $8.28 |
||
|
09
|
09
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
09
|
09
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
10
|
10
5TA-17466-00-00 Guide, Chain |
5TA-17466-00-00 |
from US $16.29 |
||
|
11
|
11
95027-10016-00 Bolt, Flange |
95027-10016-00 |
from US $1.56 |
||
|
12
|
12
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
13
|
13
4JT-15381-01-00 Plate, Bearing Cover |
4JT-15381-01-00 |
from US $7.65 |
||
|
14
|
14
5BE-15383-01-00 Plate, Bearing Cover |
5BE-15383-01-00 |
from US $8.50 |
||
|
15
|
15
90149-06126-00 Screw, Flathead (2H7) |
90149-06126-00 |
from US $1.98 |
||
|
16
|
16
90149-06326-00 Screw |
90149-06326-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
90151-06052-00 Screw |
90151-06052-00 |
from US $1.65 |
||
|
17
|
17
4L0-17471-00-00 Plate, Cover |
4L0-17471-00-00 |
from US $7.28 |
||
|
18
|
18
5DH-18562-00-00 Plate, Stopper 2 |
5DH-18562-00-00 |
from US $1.34 |
||
|
19
|
19
901-05065-53-00
Bolt, Flange
|
901-05065-53-00 |
— | ||
| replacement | |||||
|
19
|
19
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
20
|
20
93210-10197-00 O-Ring (371) |
93210-10197-00 |
from US $1.98 |
||
|
21
|
21
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
22
|
22
90387-164N2-00 Collar |
90387-164N2-00 |
from US $14.45 |
||
|
23
|
23
99530-10116-00 Pin, Dowel |
99530-10116-00 |
from US $0.90 |
||
|
24
|
24
90461-10003-00 Clamp |
90461-10003-00 |
from US $6.09 |
||
| replacement | |||||
|
24
|
24
90461-10011-00 Clamp |
90461-10011-00 |
from US $6.09 |
||
