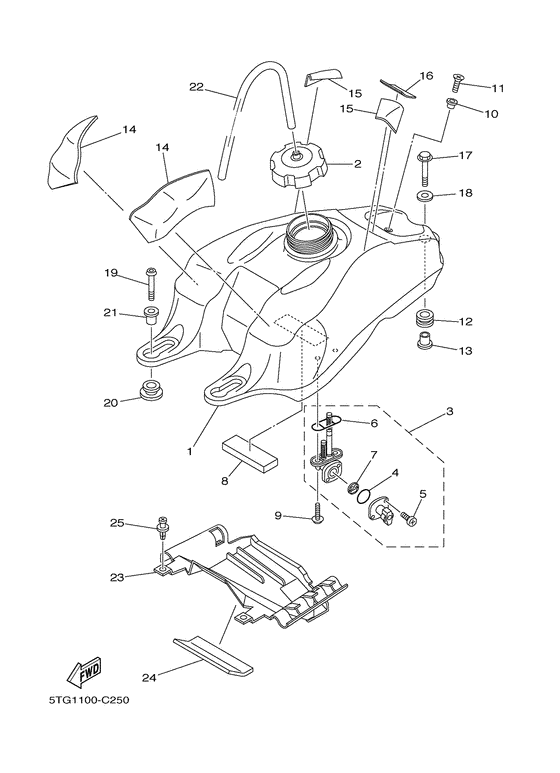

Fuel tank Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TG4
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- Australia (020)
- Colour
- Black Metallic J (SMJ; 0906)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5TG-24110-00-00 Fuel Tank Comp |
5TG-24110-00-00 |
from US $111.30 |
||
|
02
|
02
5KM-24610-00-00 Cap Assy |
5KM-24610-00-00 |
from US $41.17 |
||
|
03
|
03
5TG-24500-00-00 Fuel Cock Assy 1 |
5TG-24500-00-00 |
from US $37.44 |
||
| replacement | |||||
|
03
|
03
5TG-24500-10-00 Fuel Cock Assy 1 |
5TG-24500-10-00 |
from US $36.86 |
||
|
04
|
04
3AJ-24534-00-00
Seal, Cock
|
3AJ-24534-00-00 |
— | ||
| replacement | |||||
|
04
|
04
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.66 |
||
|
05
|
05
978-01030-08-00
Screw, Pan Head
|
978-01030-08-00 |
— | ||
| replacement | |||||
|
05
|
05
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
06
|
06
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
07
|
07
3AJ-24523-00-00
Valve Packing
|
3AJ-24523-00-00 |
— | ||
| replacement | |||||
|
07
|
07
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
08
|
08
5TG-24181-00-00 Damper, Locating 1 |
5TG-24181-00-00 |
from US $1.98 |
||
|
09
|
09
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
10
|
10
4EW-2412F-00-00 Bracket, Seat |
4EW-2412F-00-00 |
from US $5.81 |
||
|
11
|
11
98707-06025-00 Screw, Flat Head |
98707-06025-00 |
from US $1.42 |
||
|
12
|
12
90480-18290-00 Grommet |
90480-18290-00 |
from US $1.70 |
||
|
13
|
13
90387-066J1-00 Collar |
90387-066J1-00 |
from US $4.53 |
||
|
14
|
14
12R-21747-00-00 Seat, Battery |
12R-21747-00-00 |
from US $5.24 |
||
| replacement | |||||
|
14
|
14
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
15
|
15
M12-T133A-00-00 Seat, Damper A |
M12-T133A-00-00 |
from US $0.79 |
||
|
16
|
16
22F-2139X-00-00 Damper |
22F-2139X-00-00 |
from US $2.55 |
||
|
17
|
17
95827-06030-00 Bolt, Flange |
95827-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
18
|
18
90201-06071-00 Washer, Plate |
90201-06071-00 |
from US $2.38 |
||
| replacement | |||||
|
18
|
18
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
19
|
19
92017-06025-00 Bolt, Button Head |
92017-06025-00 |
from US $1.56 |
||
|
20
|
20
90480-18004-00 Grommet |
90480-18004-00 |
from US $3.40 |
||
|
21
|
21
90387-066J1-00 Collar |
90387-066J1-00 |
from US $4.53 |
||
|
22
|
22
90445-083J4-00 Hose (L460) |
90445-083J4-00 |
from US $4.39 |
||
| replacement | |||||
|
22
|
22
90445-083J5-00 Hose (L460) |
90445-083J5-00 |
from US $3.32 |
||
|
23
|
23
5TG-2414H-00-00 Damper, Plate 1 |
5TG-2414H-00-00 |
from US $19.27 |
||
|
24
|
24
12R-21747-00-00 Seat, Battery |
12R-21747-00-00 |
from US $5.24 |
||
| replacement | |||||
|
24
|
24
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
25
|
25
902-69060-02-00 Rivet |
902-69060-02-00 |
from US $1.66 |
||
