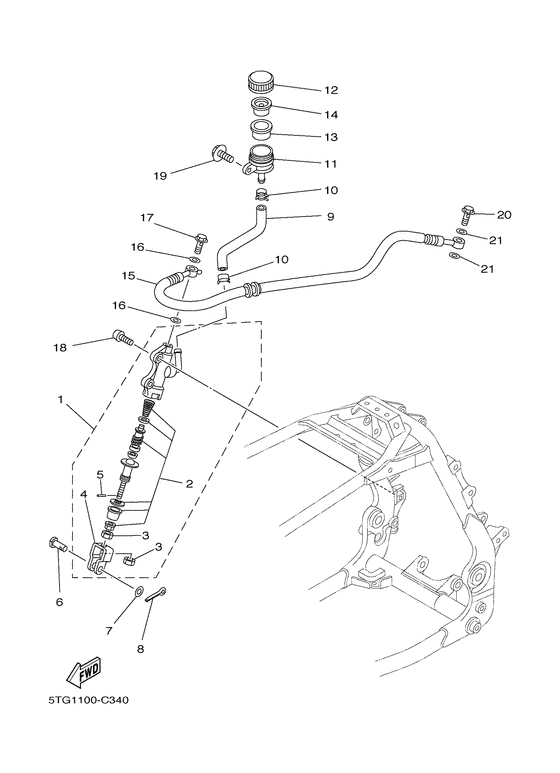

Rear master cylinder Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TG4
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- Australia (020)
- Colour
- Black Metallic J (SMJ; 0906)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5TG-2580E-00-00 Rear Master Cylinder Assy |
5TG-2580E-00-00 |
from US $122.69 |
||
|
02
|
02
5TG-W0042-50-00 Cylinder Kit, Master |
5TG-W0042-50-00 |
from US $82.89 |
||
|
03
|
03
4SS-27218-00-00 Nut |
4SS-27218-00-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.56 |
||
|
04
|
04
2YK-27222-00-00 Joint |
2YK-27222-00-00 |
from US $7.65 |
||
|
05
|
05
3KW-27234-00-00 Pin, Brake Rod |
3KW-27234-00-00 |
from US $4.11 |
||
|
06
|
06
90240-08124-00 Pin, Clevis |
90240-08124-00 |
from US $1.84 |
||
|
07
|
07
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
08
|
08
914-01160-12-00
Pin, Cotter
|
914-01160-12-00 |
— | ||
| replacement | |||||
|
08
|
08
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
09
|
09
5TG-25895-00-00 Hose, Reservoir |
5TG-25895-00-00 |
from US $8.23 |
||
|
10
|
10
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
11
|
11
2VN-25894-00-00 Tank, Reservoir |
2VN-25894-00-00 |
from US $11.90 |
||
|
12
|
12
4PX-25852-00-00 Cap, Reservoir |
4PX-25852-00-00 |
from US $22.24 |
||
|
13
|
13
2VN-25854-00-00 Diaphragm, Reservoir |
2VN-25854-00-00 |
from US $7.94 |
||
|
14
|
14
2VN-25855-00-00 Bush,diaphragm |
2VN-25855-00-00 |
from US $6.52 |
||
|
15
|
15
5TG-25874-00-00 Hose, Brake |
5TG-25874-00-00 |
from US $53.21 |
||
|
16
|
16
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
17
|
17
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
18
|
18
92017-08025-00 Bolt, Button Head |
92017-08025-00 |
from US $1.56 |
||
|
19
|
19
90105-06690-00 Bolt, Flange |
90105-06690-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
20
|
20
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
21
|
21
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
