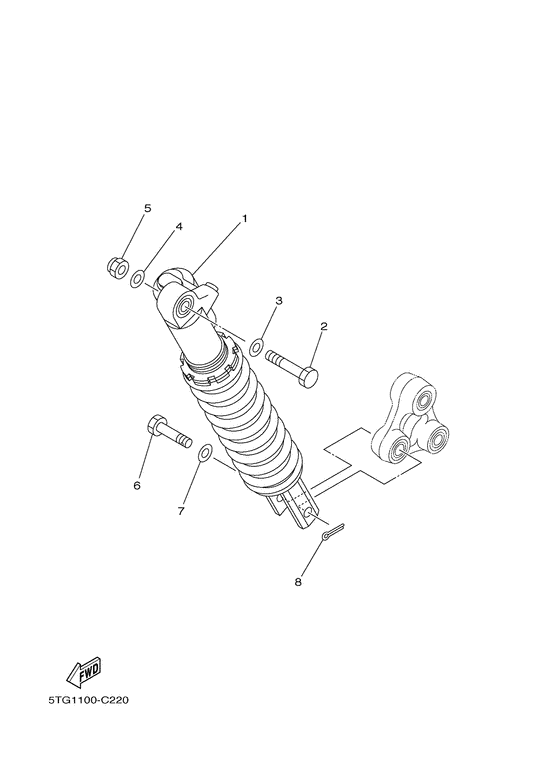

Rear suspension Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TG4
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- Australia (020)
- Colour
- Black Metallic J (SMJ; 0906)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5TG-22210-A0-00
Shock absorber assy, rear
|
5TG-22210-A0-00 |
— | ||
|
02
|
02
90101-12012-00 Bolt |
90101-12012-00 |
from US $5.47 |
||
| replacement | |||||
|
02
|
02
90101-12024-00 Bolt |
90101-12024-00 |
from US $7.08 |
||
|
03
|
03
90201-12016-00 Washer, Plate |
90201-12016-00 |
from US $3.40 |
||
| replacement | |||||
|
03
|
03
90201-12033-00 Washer, Plate |
90201-12033-00 |
from US $3.40 |
||
|
04
|
04
90201-124G9-00 Washer, Plate |
90201-124G9-00 |
from US $5.38 |
||
|
05
|
05
90185-12134-00 Nut, Self-Locking |
90185-12134-00 |
from US $6.30 |
||
|
06
|
06
90102-12002-00 Bolt, With Hole |
90102-12002-00 |
from US $9.49 |
||
|
07
|
07
90201-12699-00 Washer, Plate |
90201-12699-00 |
from US $1.70 |
||
|
08
|
08
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
08
|
08
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
