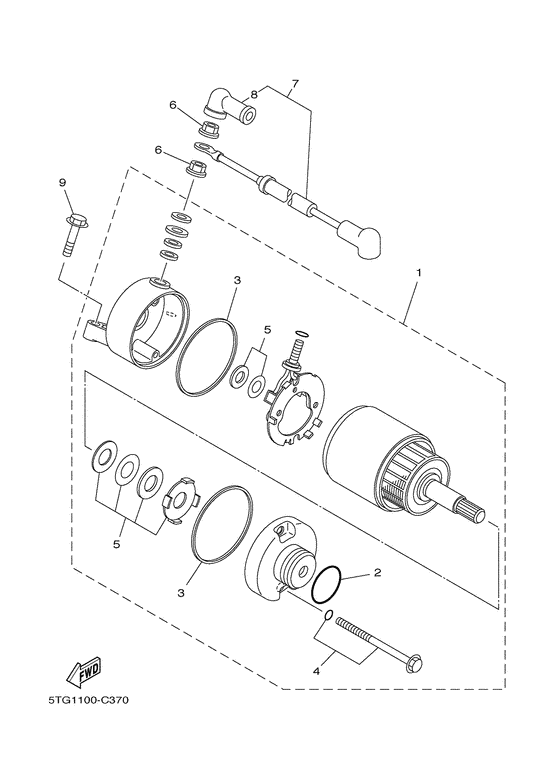

Starting motor Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TG4
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- Australia (020)
- Colour
- Black Metallic J (SMJ; 0906)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5TG-81890-00-00 Motor Assy |
5TG-81890-00-00 |
from US $500.59 |
||
|
02
|
02
1FK-81847-00-00
O-Ring
|
1FK-81847-00-00 |
— | ||
| replacement | |||||
|
02
|
02
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.98 |
||
|
03
|
03
4WP-81844-00-00 Gasket |
4WP-81844-00-00 |
from US $8.78 |
||
|
04
|
04
4WP-81826-00-00 Bolt |
4WP-81826-00-00 |
from US $16.29 |
||
|
05
|
05
3AJ-81809-00-00 Washer Kit |
3AJ-81809-00-00 |
from US $6.52 |
||
|
06
|
06
4XV-8182A-00-00 Nut |
4XV-8182A-00-00 |
from US $1.98 |
||
|
07
|
07
5TG-81815-00-00 Cord, Starter Motor |
5TG-81815-00-00 |
from US $80.55 |
||
|
08
|
08
4G0-81871-00-00 Cap |
4G0-81871-00-00 |
US $31.73 |
||
| replacement | |||||
|
08
|
08
5H0-81871-00-00
Cover Terminal
|
5H0-81871-00-00 |
— | ||
|
09
|
09
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $1.98 |
||
