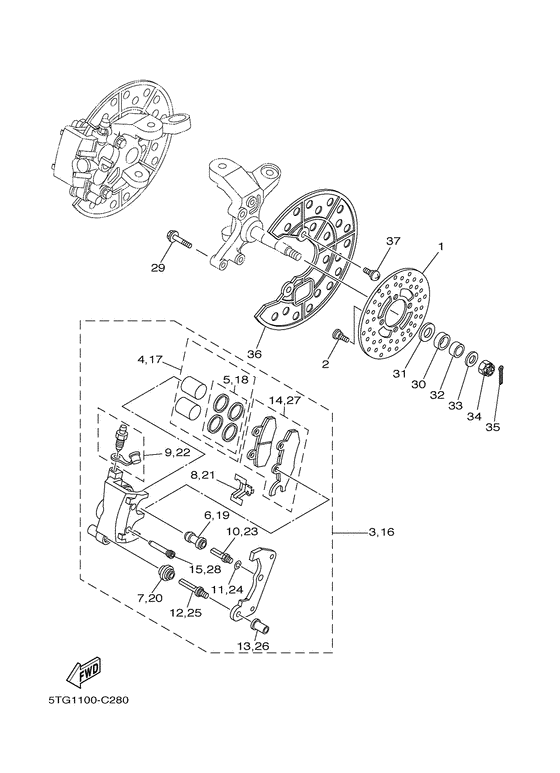

Front brake caliper Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TG6
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- France (010)
- Colour
- Black Metallic J (SMJ; 0906)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GD-2582T-00-00 Disc, Brake (Left) |
3GD-2582T-00-00 |
from US $166.63 |
||
| replacement | |||||
|
01
|
01
3GD-2582T-10-00 Disc, Brake (Left) |
3GD-2582T-10-00 |
from US $74.40 |
||
|
02
|
02
90149-08268-00 Bolt |
90149-08268-00 |
from US $1.84 |
||
| replacement | |||||
|
02
|
02
901-09080-87-00 Bolt |
901-09080-87-00 |
from US $1.84 |
||
|
03
|
03
5TG-2580T-00-00 Caliper Assy (Left) |
5TG-2580T-00-00 |
from US $271.07 |
||
|
04
|
04
5TG-W0057-00-00 Piston Assy, Caliper |
5TG-W0057-00-00 |
from US $54.30 |
||
|
05
|
05
3LC-W0047-50-00 Caliper Seal Kit |
3LC-W0047-50-00 |
from US $35.72 |
||
|
06
|
06
1UY-25937-51-00 Boot 2 |
1UY-25937-51-00 |
from US $5.10 |
||
|
07
|
07
3JD-25917-00-00 Boot, Caliper |
3JD-25917-00-00 |
from US $2 |
||
|
08
|
08
3JD-25919-00-00 Support, Pad |
3JD-25919-00-00 |
from US $18.56 |
||
|
09
|
09
1UY-W0048-50-00
Bleed Screw Kit
|
1UY-W0048-50-00 |
— | ||
| replacement | |||||
|
09
|
09
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $4.64 |
||
|
10
|
10
1UY-25926-51-00 Bolt |
1UY-25926-51-00 |
from US $2.69 |
||
|
11
|
11
1UY-25938-51-00 Washer, Spring |
1UY-25938-51-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
3JD-25926-00-00 Bolt |
3JD-25926-00-00 |
from US $3.12 |
||
|
13
|
13
3JD-25961-00-00 Nut |
3JD-25961-00-00 |
from US $8.93 |
||
|
14
|
14
5TG-W0045-00-00 Brake Pad Kit |
5TG-W0045-00-00 |
from US $43.49 |
||
|
15
|
15
5TG-25924-00-00 Pin, Pad |
5TG-25924-00-00 |
from US $9.26 |
||
|
16
|
16
5TG-2580U-00-00 Caliper Assy (Right) |
5TG-2580U-00-00 |
from US $271.07 |
||
|
17
|
17
5TG-W0057-00-00 Piston Assy, Caliper |
5TG-W0057-00-00 |
from US $54.30 |
||
|
18
|
18
3LC-W0047-50-00 Caliper Seal Kit |
3LC-W0047-50-00 |
from US $35.72 |
||
|
19
|
19
1UY-25937-51-00 Boot 2 |
1UY-25937-51-00 |
from US $5.10 |
||
|
20
|
20
3JD-25917-00-00 Boot, Caliper |
3JD-25917-00-00 |
from US $2 |
||
|
21
|
21
3JD-25919-00-00 Support, Pad |
3JD-25919-00-00 |
from US $18.56 |
||
|
22
|
22
1UY-W0048-50-00
Bleed Screw Kit
|
1UY-W0048-50-00 |
— | ||
| replacement | |||||
|
22
|
22
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $4.64 |
||
|
23
|
23
1UY-25926-51-00 Bolt |
1UY-25926-51-00 |
from US $2.69 |
||
|
24
|
24
1UY-25938-51-00 Washer, Spring |
1UY-25938-51-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
3JD-25926-00-00 Bolt |
3JD-25926-00-00 |
from US $3.12 |
||
|
26
|
26
3JD-25961-00-00 Nut |
3JD-25961-00-00 |
from US $8.93 |
||
|
27
|
27
5TG-W0045-10-00 Brake Pad Kit |
5TG-W0045-10-00 |
from US $43.49 |
||
|
28
|
28
5TG-25924-00-00 Pin, Pad |
5TG-25924-00-00 |
from US $9.26 |
||
|
29
|
29
90105-08520-00 Bolt, Washer Based |
90105-08520-00 |
from US $2.55 |
||
|
30
|
30
90387-20005-00 Collar |
90387-20005-00 |
from US $7.93 |
||
|
31
|
31
90201-204R5-00 Washer, Plate |
90201-204R5-00 |
from US $1.28 |
||
| replacement | |||||
|
31
|
31
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
32
|
32
90387-150R1-00 Collar |
90387-150R1-00 |
from US $2.69 |
||
|
33
|
33
90201-14586-00 Washer, Plate |
90201-14586-00 |
from US $1.56 |
||
| replacement | |||||
|
33
|
33
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
34
|
34
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
34
|
34
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
35
|
35
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
35
|
35
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
36
|
36
5TG-2514A-00-00 Ring, Wheel 1 |
5TG-2514A-00-00 |
from US $7.65 |
||
|
37
|
37
90154-06014-00 Screw, Binding |
90154-06014-00 |
from US $2.13 |
||
