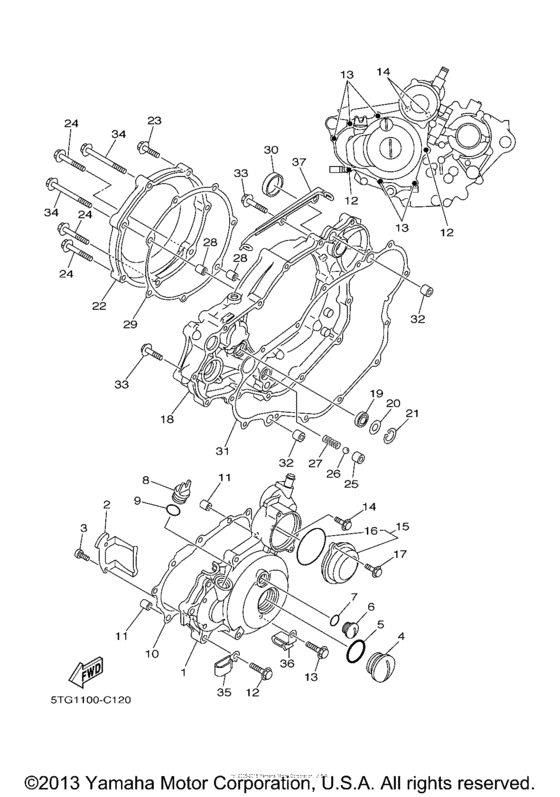

Crankcase cover (1) Diagram Yamaha YFZ450 YFZ450R Limited Edition
- Model code
- YFZ450LES
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- USA
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Limited Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TG-15411-00-00 Cover, Crankcase 1 |
5TG-15411-00-00 |
from US $180.71 |
||
|
2
|
2
90465-10017-00 Clamp |
90465-10017-00 |
from US $1.84 |
||
|
3
|
3
91317-05012-00 Bolt |
91317-05012-00 |
from US $1.07 |
||
|
4
|
4
903-40270-02-00 Plug, Straight Screw |
903-40270-02-00 |
from US $16.31 |
||
|
5
|
5
932-10273-70-00
O-Ring
|
932-10273-70-00 |
— | ||
| replacement | |||||
|
5
|
5
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $3.64 |
||
|
6
|
6
90340-14128-00 Plug, Straight Screw(3Rw) |
90340-14128-00 |
from US $11.05 |
||
|
7
|
7
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.70 |
||
|
8
|
8
3Y1-15363-00-00
Plug, Oil
|
3Y1-15363-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $17.14 |
||
|
9
|
9
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.70 |
||
|
10
|
10
5TG-15451-00-00 Gasket, Crankcase Cover 1 |
5TG-15451-00-00 |
from US $4.30 |
||
|
11
|
11
995-30080-16-00
Pin, Dowel
|
995-30080-16-00 |
— | ||
| replacement | |||||
|
11
|
11
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
12
|
12
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.28 |
||
|
13
|
13
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
|
14
|
14
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
15
|
15
5TG-1549B-00-00 Cover Assy 2 |
5TG-1549B-00-00 |
from US $60.77 |
||
|
16
|
16
93210-60426-00 O-Ring |
93210-60426-00 |
from US $6.09 |
||
|
17
|
17
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
17
|
17
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.41 |
||
|
18
|
18
5XD-15431-00-00
Cover, Crankcase 3
|
5XD-15431-00-00 |
— | ||
|
19
|
19
93101-14164-00 Oil Seal |
93101-14164-00 |
from US $5.64 |
||
|
20
|
20
90201-15701-00 Washer, Plate (T=1.0) |
90201-15701-00 |
from US $1.84 |
||
|
21
|
21
99009-22500-00 Circlip |
99009-22500-00 |
from US $1.56 |
||
|
22
|
22
5TA-15415-01-00 Cover, Clutch |
5TA-15415-01-00 |
from US $123.37 |
||
| replacement | |||||
|
22
|
22
5TA-15415-10-00 Cover, Clutch |
5TA-15415-10-00 |
from US $146.45 |
||
|
23
|
23
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
|
24
|
24
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.28 |
||
|
25
|
25
583-13113-00-00 Seat, Check Ball |
583-13113-00-00 |
from US $3.64 |
||
|
26
|
26
935-03080-07-00 Ball |
935-03080-07-00 |
from US $1.84 |
||
|
27
|
27
90501-043E0-00 Spring, Compression |
90501-043E0-00 |
from US $1.70 |
||
|
28
|
28
995-30080-16-00
Pin, Dowel
|
995-30080-16-00 |
— | ||
| replacement | |||||
|
28
|
28
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
29
|
29
5TA-15453-00-00 Gasket |
5TA-15453-00-00 |
from US $9.26 |
||
|
30
|
30
90338-30096-00 Plug |
90338-30096-00 |
from US $7.51 |
||
|
31
|
31
5TA-15462-00-00 Gasket, Crankcase Cover 3 |
5TA-15462-00-00 |
from US $15.54 |
||
|
32
|
32
91812-16001-00 Pin, Dowel(J38) |
91812-16001-00 |
from US $3.83 |
||
|
33
|
33
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
|
34
|
34
95027-06080-00 Bolt, Flange |
95027-06080-00 |
from US $1.34 |
||
|
35
|
35
90465-08125-00 Clamp |
90465-08125-00 |
from US $2.41 |
||
| replacement | |||||
|
35
|
35
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
36
|
36
90462-10025-00 Clamp |
90462-10025-00 |
from US $6.05 |
||
|
37
|
37
5TG-15484-00-00 Clamp 2 |
5TG-15484-00-00 |
from US $20.35 |
||
| replacement | |||||
|
37
|
37
5TG-15484-10-00 Clamp 2 |
5TG-15484-10-00 |
from US $20.35 |
||
