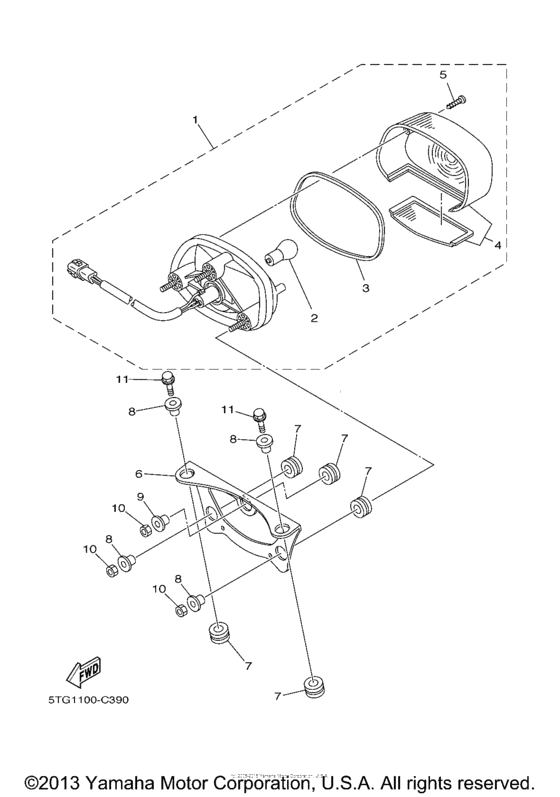

Taillight Diagram Yamaha YFZ450 YFZ450R Limited Edition
- Model code
- YFZ450LES
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- USA
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Limited Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5LP-84700-10-00 Taillight Assy |
5LP-84700-10-00 |
from US $81.49 |
||
| replacement | |||||
|
1
|
1
5LP-84700-11-00 Taillight Assy |
5LP-84700-11-00 |
from US $101.41 |
||
|
2
|
2
256-84714-60-00 Bulb (12V-21/5W)12V-27/8W |
256-84714-60-00 |
US $6.09 |
||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
from US $4.53 |
||
|
3
|
3
4TR-84723-00-00
Gasket, Tail Lens
|
4TR-84723-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4TX-84723-00-00 Gasket, Tail Lens |
4TX-84723-00-00 |
from US $6.80 |
||
|
4
|
4
4TR-84733-00-00 Lens, Taillight |
4TR-84733-00-00 |
from US $24.17 |
||
|
5
|
5
97702-40620-00 Screw, Tapping |
97702-40620-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
97780-40120-00 Ybs83-420 Screw,panh,tapping |
97780-40120-00 |
from US $1.42 |
||
|
6
|
6
5TG-84702-00-00 Bracket, Taillight |
5TG-84702-00-00 |
US $12.89 |
||
|
7
|
7
90480-14555-00 Grommet |
90480-14555-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.66 |
||
|
8
|
8
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
9
|
9
903-87063-E6-00
Collar
|
903-87063-E6-00 |
— | ||
| replacement | |||||
|
9
|
9
90387-06158-00 Collar |
90387-06158-00 |
from US $1.56 |
||
|
10
|
10
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
11
|
11
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
11
|
11
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
11
|
11
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
