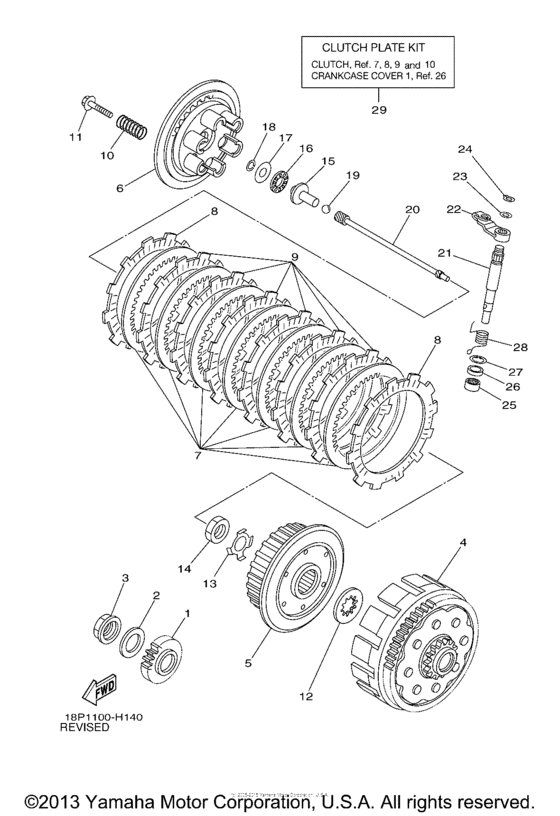

Clutch Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- YFZ450RSEZ
- Engine Capacity
- 449
- Year
- 2010
- Sales region
- USA
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2S2-16111-60-00 Gear, Primary Drive |
2S2-16111-60-00 |
from US $65.06 |
||
|
2
|
2
902-08250-45-00 Washer, Conical Spring |
902-08250-45-00 |
from US $9.35 |
||
|
3
|
3
90179-20009-00 Nut |
90179-20009-00 |
from US $16.01 |
||
|
4
|
4
18P-16150-00-00 Primary Driven Gear Comp |
18P-16150-00-00 |
from US $380.56 |
||
|
5
|
5
5TA-16371-10-00 Boss, Clutch |
5TA-16371-10-00 |
from US $85.80 |
||
| replacement | |||||
|
5
|
5
5TA-16371-20-00 Boss, Clutch |
5TA-16371-20-00 |
from US $85.80 |
||
|
6
|
6
2S2-16351-00-00 Plate, Pressure 1 |
2S2-16351-00-00 |
from US $72.12 |
||
| replacement | |||||
|
6
|
6
2S2-16351-01-00 Plate, Pressure 1 |
2S2-16351-01-00 |
from US $72.12 |
||
|
7
|
7
4X7-16325-00-00 Plate, Clutch 2INCL. IN CLUTCH PLATE KIT |
4X7-16325-00-00 |
from US $8.28 |
||
| replacement | |||||
|
7
|
7
4X7-16325-10-00 PLATE CLUTCH 2INCL. IN CLUTCH PLATE KIT |
4X7-16325-10-00 |
from US $11.19 |
||
|
8
|
8
5TA-16321-00-00 Plate, Friction |
5TA-16321-00-00 |
from US $13.90 |
||
|
9
|
9
5VY-16321-00-00 Plate, Friction |
5VY-16321-00-00 |
from US $12.58 |
||
|
10
|
10
90501-231E9-00 Spring, Compression |
90501-231E9-00 |
from US $3.83 |
||
|
11
|
11
90159-06010-00 Screw, With Washer |
90159-06010-00 |
from US $1.56 |
||
|
12
|
12
5XD-16154-00-00 Plate, Thrust 1 |
5XD-16154-00-00 |
from US $10.91 |
||
|
13
|
13
90215-20005-00 Washer, Lock |
90215-20005-00 |
from US $3.32 |
||
|
14
|
14
90170-20327-00 Nut (34L) |
90170-20327-00 |
from US $6.94 |
||
|
15
|
15
5TG-16356-00-00 Rod, Push 1 |
5TG-16356-00-00 |
from US $30.32 |
||
|
16
|
16
93340-21505-00 Bearing |
93340-21505-00 |
from US $9.60 |
||
|
17
|
17
90201-125L6-00 Washer, Plate(1Re) |
90201-125L6-00 |
from US $1.84 |
||
|
18
|
18
93440-10085-00 Circlip |
93440-10085-00 |
from US $1.70 |
||
|
19
|
19
93515-32029-00 Ball |
93515-32029-00 |
from US $1.66 |
||
|
20
|
20
18P-16357-00-00 Rod, Push 2 |
18P-16357-00-00 |
from US $25.22 |
||
| replacement | |||||
|
20
|
20
18P-16357-01-00 Rod, Push 2 |
18P-16357-01-00 |
from US $25.22 |
||
|
21
|
21
18P-16382-00-00 Axle, Push Lever |
18P-16382-00-00 |
from US $54.02 |
||
|
22
|
22
18P-16342-00-00 Lever, Push |
18P-16342-00-00 |
from US $14.73 |
||
|
23
|
23
90201-10032-00 Washer, Plate |
90201-10032-00 |
from US $1.66 |
||
|
24
|
24
99009-10400-00 Circlip |
99009-10400-00 |
from US $1.34 |
||
|
25
|
25
93317-11287-00 Bearing |
93317-11287-00 |
from US $9.35 |
||
|
26
|
26
931-02122-24-00 Oil Seal |
931-02122-24-00 |
from US $4.30 |
||
|
27
|
27
99009-20500-00 Circlip |
99009-20500-00 |
from US $1.56 |
||
|
28
|
28
905-08160-61-00 Spring, Torsion |
905-08160-61-00 |
from US $2.55 |
||
|
29
|
29
18P-W001G-00-00 Clutch Plate Kit |
18P-W001G-00-00 |
from US $238.81 |
||
