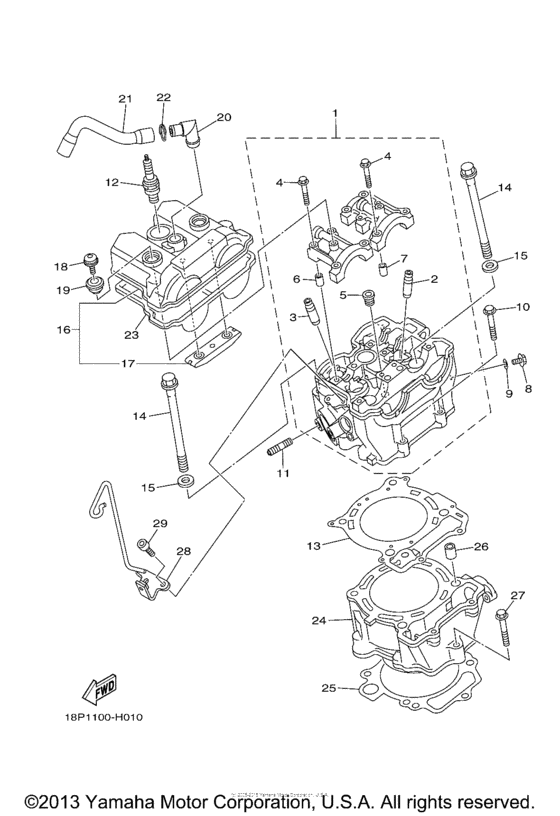

Cylinder Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- YFZ450RSEZ
- Engine Capacity
- 449
- Year
- 2010
- Sales region
- USA
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18P-11102-00-00 Cylinder Head Assy |
18P-11102-00-00 |
from US $1,110.85 |
||
| replacement | |||||
|
1
|
1
18P-11101-19-00 Cylinder Head Assy |
18P-11101-19-00 |
from US $1,203.84 |
||
|
2
|
2
5TA-11133-10-00 Guide, Valve 1 |
5TA-11133-10-00 |
from US $34.14 |
||
|
3
|
3
5TA-11134-10-00 Guide, Valve 2 |
5TA-11134-10-00 |
from US $34.14 |
||
|
4
|
4
90105-06027-00 Bolt, Flange |
90105-06027-00 |
from US $1.34 |
||
|
5
|
5
90340-12007-00 Plug, Straight Screw |
90340-12007-00 |
from US $3.68 |
||
|
6
|
6
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
7
|
7
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
8
|
8
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.34 |
||
|
9
|
9
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
10
|
10
95022-06035-00 Bolt, Flange |
95022-06035-00 |
from US $1.42 |
||
|
11
|
11
90116-08022-00 Bolt, Stud |
90116-08022-00 |
from US $5.38 |
||
|
12
|
12
NGK-CR8E0-00-00 Plug, Spark (Ngk Cr8E)10 PACK |
NGK-CR8E0-00-00 |
US $46.20 |
||
| replacement | |||||
|
12
|
12
CR8-E0000-00-00 Plug, Spark (Ngk Cr8E)10 PACK |
CR8-E0000-00-00 |
US $42.92 |
||
|
13
|
13
2S2-11181-00-00 Gasket, Cylinder Head 1INCL. IN TOP END GASKET KIT |
2S2-11181-00-00 |
from US $25.80 |
||
|
14
|
14
90105-10163-00 Bolt, Flange |
90105-10163-00 |
from US $8.50 |
||
|
15
|
15
90201-10025-00 Washer, Plate |
90201-10025-00 |
from US $4.39 |
||
|
16
|
16
2S2-11190-20-00 Cover, Cylinder Head 1 |
2S2-11190-20-00 |
from US $107.21 |
||
| replacement | |||||
|
16
|
16
2S2-11190-21-00 |
2S2-11190-21-00 |
from US $107.21 |
||
|
17
|
17
5BE-12241-00-00
Guide, Stopper 2
|
5BE-12241-00-00 |
— | ||
| replacement | |||||
|
17
|
17
5BE-12241-01-00 GUIDE STOPPER 2 |
5BE-12241-01-00 |
from US $14.22 |
||
|
18
|
18
90109-06203-00 Bolt |
90109-06203-00 |
from US $1.84 |
||
|
19
|
19
5VY-1111G-00-00 Rubber, Mount 1INCL. IN TOP END GASKET KIT |
5VY-1111G-00-00 |
from US $3.68 |
||
|
20
|
20
18P-11167-00-00 Pipe, Breather 2 |
18P-11167-00-00 |
from US $10.63 |
||
|
21
|
21
18P-11166-00-00 Pipe, Breather 1 |
18P-11166-00-00 |
from US $12.47 |
||
|
22
|
22
904-68100-A1-00 Clip |
904-68100-A1-00 |
from US $1.42 |
||
|
23
|
23
2S2-11193-00-00 Gasket, Head Cover 1INCL. IN TOP END GASKET KIT |
2S2-11193-00-00 |
from US $24.65 |
||
|
24
|
24
2S2-11311-10-00 Cylinder 1 |
2S2-11311-10-00 |
from US $543.74 |
||
| replacement | |||||
|
24
|
24
2S2-11311-11-00 Cylinder 1 |
2S2-11311-11-00 |
from US $499.54 |
||
|
25
|
25
2S2-11351-00-00 Gasket, Cylinder |
2S2-11351-00-00 |
from US $13.24 |
||
|
26
|
26
93612-16254-00 Pin, Dowel |
93612-16254-00 |
from US $3.32 |
||
|
27
|
27
95022-06035-00 Bolt, Flange |
95022-06035-00 |
from US $1.42 |
||
|
28
|
28
18P-11395-00-00 Holder |
18P-11395-00-00 |
from US $20.97 |
||
|
29
|
29
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
