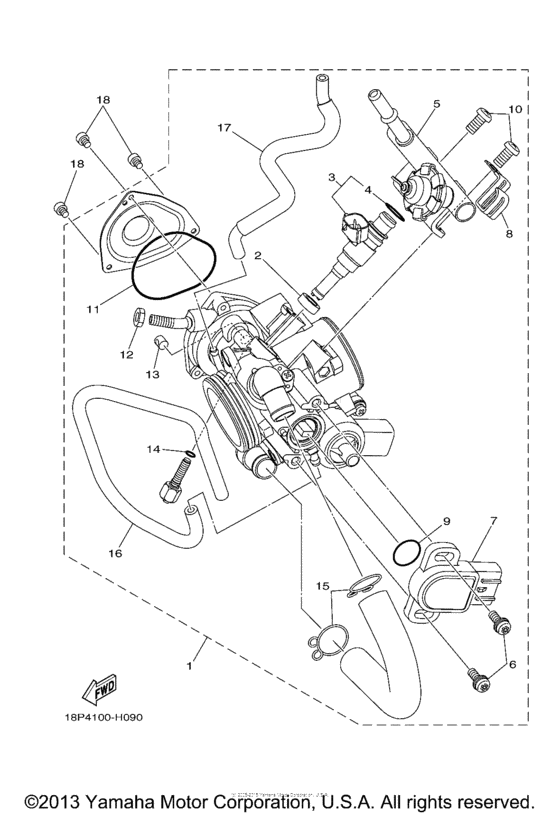

Throttle body assy (1) Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- YFZ450RSEZ
- Engine Capacity
- 449
- Year
- 2010
- Sales region
- USA
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18P-13750-00-00 Throttle Body Assy |
18P-13750-00-00 |
from US $1,090.32 |
||
| replacement | |||||
|
1
|
1
18P-13750-01-00 Throttle Body Assy |
18P-13750-01-00 |
US $1,192.96 |
||
|
2
|
2
8FP-13556-00-00 Rubber, Injector |
8FP-13556-00-00 |
from US $4.53 |
||
|
3
|
3
3B4-13761-00-00 Injector |
3B4-13761-00-00 |
from US $176.84 |
||
|
4
|
4
5PS-14147-00-00 O-Ring |
5PS-14147-00-00 |
from US $10.06 |
||
|
5
|
5
18P-13160-00-00 Delivery Pipe Assy 1 |
18P-13160-00-00 |
from US $204.48 |
||
|
6
|
6
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
7
|
7
3B4-85885-00-00 Throttle Sensor Assy |
3B4-85885-00-00 |
from US $89.11 |
||
| replacement | |||||
|
7
|
7
3B4-85885-01-00 THROTTLE SENSOR ASSY |
3B4-85885-01-00 |
from US $81.81 |
||
|
8
|
8
5JW-14945-00-00 Plate |
5JW-14945-00-00 |
from US $2.98 |
||
|
9
|
9
5YP-14562-00-00 O-Ring |
5YP-14562-00-00 |
from US $5.10 |
||
|
10
|
10
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
11
|
11
5LP-14147-00-00 O-Ring |
5LP-14147-00-00 |
from US $7.51 |
||
|
12
|
12
1S3-14161-00-00 Nut, Cable Adjusting |
1S3-14161-00-00 |
from US $1.84 |
||
|
13
|
13
1UY-14155-00-00 Guide, Cable |
1UY-14155-00-00 |
from US $9.49 |
||
|
14
|
14
2H0-14147-00-00 O-Ring |
2H0-14147-00-00 |
from US $5.87 |
||
|
15
|
15
8FP-14137-00-00 Clip |
8FP-14137-00-00 |
from US $3.83 |
||
|
16
|
16
18P-13543-00-00 Hose, Air |
18P-13543-00-00 |
from US $19.41 |
||
|
17
|
17
18P-14348-00-00 Pipe 1 |
18P-14348-00-00 |
from US $31.31 |
||
|
18
|
18
91312-04006-00 Bolt |
91312-04006-00 |
from US $1.56 |
||
