Front fender Diagram Yamaha YFZ450 YFZ450R Special Edition

Model code
1TDG
Engine Capacity
449
Year
2015
Sales region
USA
Базовая модель
YFZ450RSFB
Colour
Yb
2WD/4WD/AWD
2WD
Model
YFZ450R Special Edition

Difficulties in parts search?

Parts list

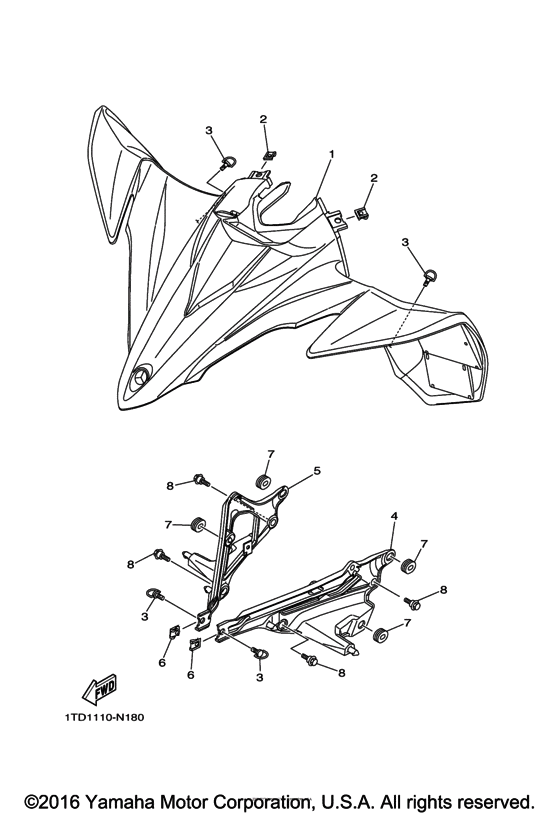

Front fender

Difficulties in parts search?

Front fender
Description OEM Part # Price
1
1

1TD-F1500-90-00

Front Fender Assy

1TD-F1500-90-00

US $419.22

2
2

4XV-2177L-01-00

Plate, Spring

4XV-2177L-01-00

from US $7.23

3
3

8HG-28386-00-00

Head

8HG-28386-00-00

from US $18.20

4
4

1TD-F1513-00-00

Stay, Fender 1

1TD-F1513-00-00

from US $21.82

5
5

1TD-F1514-00-00

Stay, Fender 2

1TD-F1514-00-00

from US $21.82

6
6

4XV-2177L-01-00

Plate, Spring

4XV-2177L-01-00

from US $7.23

7
7

90480-01559-00

Grommet

90480-01559-00

from US $4.39

8
8

90109-06199-00

Bolt

90109-06199-00

from US $1.84

Front fender Diagram Yamaha YFZ450 YFZ450R Special Edition Yb USA 15288270-828861
