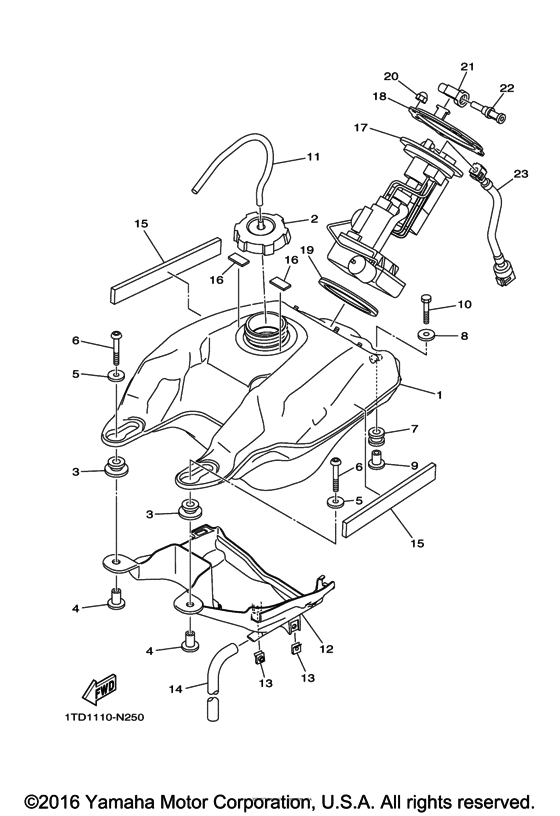

Fuel tank Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- 1TDG
- Engine Capacity
- 449
- Year
- 2015
- Sales region
- USA
- Базовая модель
- YFZ450RSFB
- Colour
- Yb
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TD-F4110-00-00 Fuel Tank Comp |
1TD-F4110-00-00 |
US $234.67 |
||
|
2
|
2
5KM-24610-00-00 Cap Assy |
5KM-24610-00-00 |
from US $41.17 |
||
|
3
|
3
904-80180-16-00 Grommet |
904-80180-16-00 |
from US $2.55 |
||
|
4
|
4
90387-066H4-00 Collar |
90387-066H4-00 |
from US $5.81 |
||
|
5
|
5
90201-064K6-00 Washer, Plate(1Jk) |
90201-064K6-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90201-06816-00
Washer, Plate
|
90201-06816-00 |
— | ||
|
6
|
6
92012-06040-00 Bolt, Button Head |
92012-06040-00 |
from US $1.42 |
||
|
7
|
7
90480-18290-00 Grommet |
90480-18290-00 |
from US $1.70 |
||
|
8
|
8
90201-064K6-00 Washer, Plate(1Jk) |
90201-064K6-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
90201-06816-00
Washer, Plate
|
90201-06816-00 |
— | ||
|
9
|
9
90387-066J1-00 Collar |
90387-066J1-00 |
from US $4.53 |
||
|
10
|
10
95812-06030-00 Bolt, Flange |
95812-06030-00 |
from US $1.42 |
||
|
11
|
11
904-45080-08-00
Hose
|
904-45080-08-00 |
— | ||
| replacement | |||||
|
11
|
11
904-45086-84-00 Hose (L340) |
904-45086-84-00 |
from US $5.10 |
||
|
12
|
12
1TD-F414H-00-00 Damper, Plate 1 |
1TD-F414H-00-00 |
US $21.53 |
||
|
13
|
13
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
13
|
13
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
14
|
14
18P-2247A-00-00 Hose 1 |
18P-2247A-00-00 |
from US $9.07 |
||
|
15
|
15
905-20080-01-00 Damper, Plate |
905-20080-01-00 |
from US $2.69 |
||
|
16
|
16
4RR-21485-00-00 Damper, Rubber 1 |
4RR-21485-00-00 |
from US $2.13 |
||
|
17
|
17
18P-13907-10-00 Fuel Pump Comp |
18P-13907-10-00 |
from US $431.02 |
||
| replacements | |||||
|
17
|
17
18P-13907-11-00 Fuel Pump Comp. |
18P-13907-11-00 |
from US $431.02 |
||
|
17
|
17
18P-13907-12-00 FUEL PUMP COMP |
18P-13907-12-00 |
from US $431.02 |
||
|
18
|
18
18P-24491-00-00 Bracket, Fuel Pump |
18P-24491-00-00 |
from US $11.33 |
||
|
19
|
19
1S3-24486-00-00 O-Ring |
1S3-24486-00-00 |
from US $6.30 |
||
|
20
|
20
95302-06800-00 Nut |
95302-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
21
|
21
18P-2464V-00-00 Case, Cap |
18P-2464V-00-00 |
from US $4.96 |
||
|
22
|
22
18P-2467E-00-00 Cap |
18P-2467E-00-00 |
from US $2.13 |
||
|
23
|
23
18P-13971-00-00 Pipe, Fuel 1 |
18P-13971-00-00 |
from US $65.63 |
||
