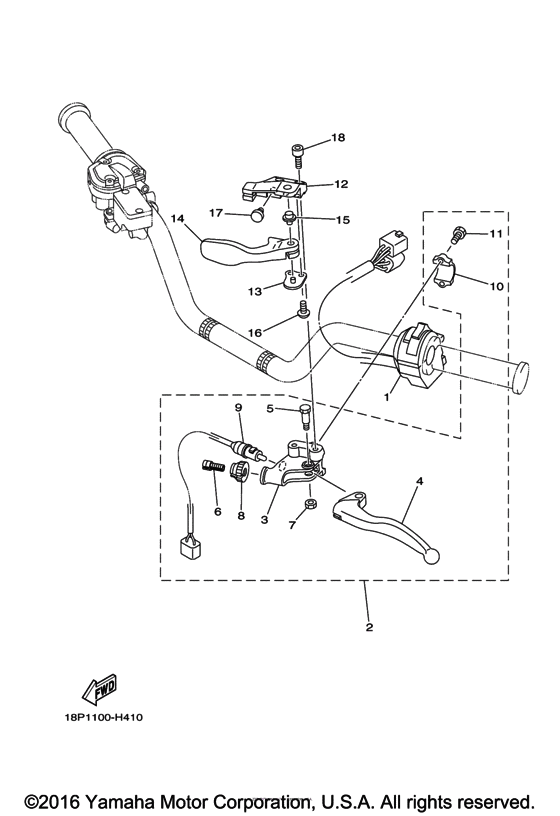

Handle switch & lever Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- 1TDG
- Engine Capacity
- 449
- Year
- 2015
- Sales region
- USA
- Базовая модель
- YFZ450RSFB
- Colour
- Yb
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1S3-83973-11-00 Switch, Handle 3 |
1S3-83973-11-00 |
from US $95.33 |
||
| replacement | |||||
|
1
|
1
1S3-83973-12-00 SWITCH HANDLE 3 |
1S3-83973-12-00 |
from US $68.12 |
||
|
2
|
2
18P-82910-02-00 Lever Holder Assy (Left) |
18P-82910-02-00 |
from US $140.92 |
||
| replacement | |||||
|
2
|
2
18P-82910-03-00 Lever Holder Assy |
18P-82910-03-00 |
from US $140.92 |
||
|
3
|
3
5TG-82911-01-00 Holder, Lever 1 |
5TG-82911-01-00 |
from US $30.74 |
||
|
4
|
4
5TJ-83912-01-00 Lever 1 |
5TJ-83912-01-00 |
from US $17.54 |
||
|
5
|
5
90109-06034-00 Bolt |
90109-06034-00 |
from US $1.98 |
||
|
6
|
6
5TA-26337-00-00 Bolt, Adjusting |
5TA-26337-00-00 |
from US $9.26 |
||
|
7
|
7
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
7
|
7
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
8
|
8
5HD-83951-00-00 Bolt, Cable Adjusting |
5HD-83951-00-00 |
from US $27.91 |
||
|
9
|
9
5KM-82917-00-00 Switch |
5KM-82917-00-00 |
from US $38.96 |
||
|
10
|
10
5TG-82913-00-00 Holder, Lever Lower 1 |
5TG-82913-00-00 |
from US $7.23 |
||
|
11
|
11
90101-05033-00 Bolt |
90101-05033-00 |
from US $1.70 |
||
|
12
|
12
5TG-25727-01-00 Bracket, Lever |
5TG-25727-01-00 |
from US $26.78 |
||
|
13
|
13
5D3-25689-00-00 Plate, Guide |
5D3-25689-00-00 |
from US $3.64 |
||
|
14
|
14
5TG-25726-01-00 Lever, Brake |
5TG-25726-01-00 |
from US $24.48 |
||
|
15
|
15
5TG-83923-00-00 Collar, Lever 2 |
5TG-83923-00-00 |
from US $7.62 |
||
|
16
|
16
92012-06014-00 Bolt, Button Head |
92012-06014-00 |
from US $1.56 |
||
|
17
|
17
90338-07007-00 Plug |
90338-07007-00 |
from US $1.84 |
||
|
18
|
18
92012-06016-00 Bolt, Button Head |
92012-06016-00 |
from US $1.56 |
||
