Headlight Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- 1TDG
- Engine Capacity
- 449
- Year
- 2015
- Sales region
- USA
- Базовая модель
- YFZ450RSFB
- Colour
- Yb
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?

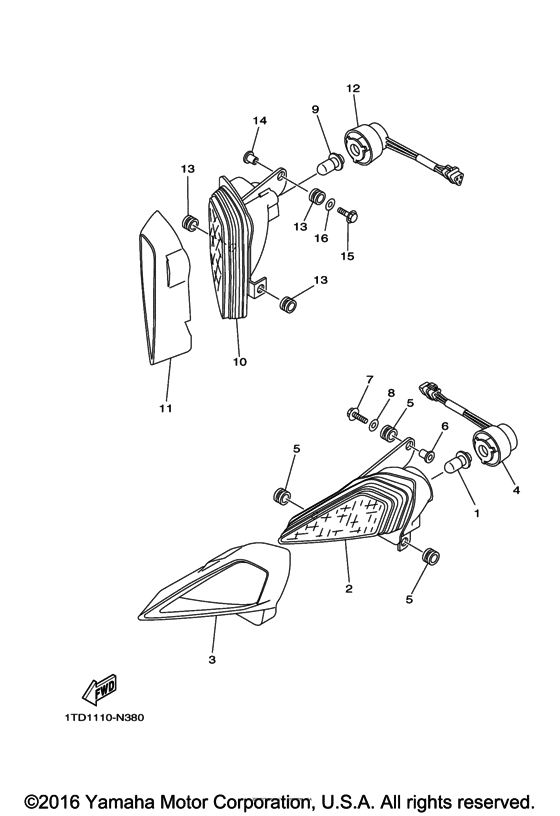

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KB-84314-01-00 Bulb (12V-30/30W) |
4KB-84314-01-00 |
from US $20.84 |
||
|
2
|
2
5TG-84110-03-00 Headlight Unit Assy |
5TG-84110-03-00 |
from US $47.62 |
||
|
3
|
3
5TG-84165-01-00 Rim, Headlight Cover 1 |
5TG-84165-01-00 |
from US $11.92 |
||
|
4
|
4
5TG-84140-01-00 Socket Cord Assy |
5TG-84140-01-00 |
from US $27.44 |
||
|
5
|
5
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
5
|
5
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
6
|
6
90387-06136-00 Collar |
90387-06136-00 |
from US $1.98 |
||
|
7
|
7
958-02060-25-00
Bolt, Flange
|
958-02060-25-00 |
— | ||
| replacements | |||||
|
7
|
7
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
7
|
7
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
8
|
8
90201-06078-00 Washer, Plate |
90201-06078-00 |
from US $1.70 |
||
|
9
|
9
4KB-84314-01-00 Bulb (12V-30/30W) |
4KB-84314-01-00 |
from US $20.84 |
||
|
10
|
10
5TG-84310-03-00 Headlight Unit Assy |
5TG-84310-03-00 |
from US $47.94 |
||
|
11
|
11
5TG-84166-01-00 Rim, Headlight Cover 2 |
5TG-84166-01-00 |
from US $11.92 |
||
|
12
|
12
5TG-84340-01-00 Socket Cord Assy 1 |
5TG-84340-01-00 |
from US $27.77 |
||
|
13
|
13
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
13
|
13
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
14
|
14
90387-06136-00 Collar |
90387-06136-00 |
from US $1.98 |
||
|
15
|
15
958-02060-25-00
Bolt, Flange
|
958-02060-25-00 |
— | ||
| replacements | |||||
|
15
|
15
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
15
|
15
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
16
|
16
90201-06078-00 Washer, Plate |
90201-06078-00 |
from US $1.70 |
||
