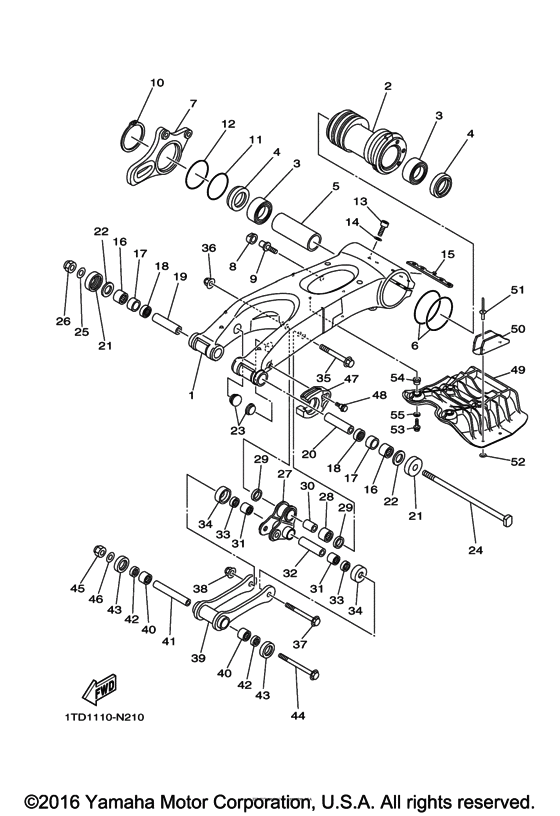

Rear arm & suspension Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- 1TDG
- Engine Capacity
- 449
- Year
- 2015
- Sales region
- USA
- Базовая модель
- YFZ450RSFB
- Colour
- Yb
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18P-22110-00-00 Rear Arm Comp |
18P-22110-00-00 |
from US $954.36 |
||
|
2
|
2
5TG-25311-21-00 Hub, Rear |
5TG-25311-21-00 |
from US $225.20 |
||
|
3
|
3
933-04208-12-00 Bearing |
933-04208-12-00 |
from US $71.76 |
||
|
4
|
4
931-06480-01-00 Oil Seal |
931-06480-01-00 |
from US $9.35 |
||
|
5
|
5
5TG-25317-01-00 Spacer, Bearing |
5TG-25317-01-00 |
from US $25.80 |
||
|
6
|
6
1S3-23147-01-00 O-Ring |
1S3-23147-01-00 |
from US $6.38 |
||
|
7
|
7
5TG-25721-30-00 Bracket, Caliper |
5TG-25721-30-00 |
from US $158.88 |
||
|
8
|
8
90387-16014-00 Collar |
90387-16014-00 |
from US $7.62 |
||
|
9
|
9
90110-12001-00 Bolt, Hexagon Socket |
90110-12001-00 |
from US $5.38 |
||
| replacement | |||||
|
9
|
9
901-10120-02-00 Bolt, Hexagon Socket Head |
901-10120-02-00 |
from US $4.41 |
||
|
10
|
10
93410-67085-00 Circlip |
93410-67085-00 |
from US $8.28 |
||
|
11
|
11
93210-71001-00 O-Ring |
93210-71001-00 |
from US $2.55 |
||
|
12
|
12
93210-66001-00 O-Ring |
93210-66001-00 |
from US $2 |
||
|
13
|
13
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
|
14
|
14
92903-08600-00 Washer, Plate |
92903-08600-00 |
from US $1.56 |
||
| replacements | |||||
|
14
|
14
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
14
|
14
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
15
|
15
5TG-22475-00-00 Seal, Dust |
5TG-22475-00-00 |
from US $6.09 |
||
|
16
|
16
933-17222-37-00 Bearing |
933-17222-37-00 |
from US $17.14 |
||
| replacement | |||||
|
16
|
16
933-17322-31-00 Bearing |
933-17322-31-00 |
from US $24.48 |
||
|
17
|
17
90380-22111-00 Bush, Solid |
90380-22111-00 |
from US $7.51 |
||
|
18
|
18
93106-22019-00 Oil Seal (Dc 22-28-8) |
93106-22019-00 |
from US $6.09 |
||
|
19
|
19
903-87160-27-00 Collar |
903-87160-27-00 |
from US $14.45 |
||
|
20
|
20
90387-160W1-00 Bush 2 |
90387-160W1-00 |
from US $30.59 |
||
| replacement | |||||
|
20
|
20
2XJ-22124-00-00 Bush 2 |
2XJ-22124-00-00 |
from US $32.65 |
||
|
21
|
21
4X7-22129-00-00 Cover, Thrust 2 |
4X7-22129-00-00 |
from US $14.31 |
||
|
22
|
22
3YF-22149-00-00 Washer |
3YF-22149-00-00 |
from US $4.30 |
||
|
23
|
23
90338-23004-00 Plug |
90338-23004-00 |
from US $3.68 |
||
|
24
|
24
18P-22141-00-00 Shaft, Pivot |
18P-22141-00-00 |
from US $43.52 |
||
|
25
|
25
90201-16018-00 Washer, Plate |
90201-16018-00 |
from US $1.98 |
||
|
26
|
26
90185-16002-00 Nut, Self-Locking |
90185-16002-00 |
from US $6.38 |
||
|
27
|
27
1TD-F217A-00-00 Arm, Relay |
1TD-F217A-00-00 |
from US $106.60 |
||
|
28
|
28
93315-32056-00 Bearing |
93315-32056-00 |
from US $22.81 |
||
|
29
|
29
93109-20001-00 Oil Seal |
93109-20001-00 |
from US $3.68 |
||
|
30
|
30
903-87120-43-00 Collar |
903-87120-43-00 |
from US $10.06 |
||
|
31
|
31
93315-31758-00 Bearing |
93315-31758-00 |
from US $14.22 |
||
|
32
|
32
903-87120-41-00 Collar |
903-87120-41-00 |
from US $9.49 |
||
|
33
|
33
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $2.98 |
||
|
34
|
34
55K-22129-00-00 Cover, Thrust 2 |
55K-22129-00-00 |
from US $7.79 |
||
|
35
|
35
901-05120-64-00 Bolt, Flange |
901-05120-64-00 |
from US $6.52 |
||
|
36
|
36
95602-12200-00 Nut, Self-Locking |
95602-12200-00 |
from US $3.12 |
||
|
37
|
37
901-05120-65-00 Bolt, Flange |
901-05120-65-00 |
from US $7.51 |
||
|
38
|
38
95602-12200-00 Nut, Self-Locking |
95602-12200-00 |
from US $3.12 |
||
|
39
|
39
1TD-F217F-00-00 Rod, Connecting 1 |
1TD-F217F-00-00 |
US $53.98 |
||
|
40
|
40
93315-31758-00 Bearing |
93315-31758-00 |
from US $14.22 |
||
|
41
|
41
903-87120-42-00 Collar |
903-87120-42-00 |
from US $14.17 |
||
|
42
|
42
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $2.98 |
||
|
43
|
43
55K-22129-00-00 Cover, Thrust 2 |
55K-22129-00-00 |
from US $7.79 |
||
|
44
|
44
901-05120-66-00 Bolt, Flange |
901-05120-66-00 |
from US $9.35 |
||
|
45
|
45
95612-12100-00 Nut, U |
95612-12100-00 |
from US $2.98 |
||
|
46
|
46
90201-12032-00 Washer, Plate |
90201-12032-00 |
from US $3.40 |
||
|
47
|
47
18P-22151-10-00 Seal, Guard |
18P-22151-10-00 |
from US $20.50 |
||
|
48
|
48
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.34 |
||
|
49
|
49
18P-22361-00-00 Guard 1 |
18P-22361-00-00 |
from US $34.71 |
||
|
50
|
50
5TG-22153-10-00 Guard, Chain |
5TG-22153-10-00 |
from US $18.42 |
||
|
51
|
51
90267-47187-00 Rivet, Blind (4.7X16.4 Black) |
90267-47187-00 |
from US $1.28 |
||
|
52
|
52
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
53
|
53
95812-06025-00 Bolt, Flange |
95812-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
53
|
53
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
53
|
53
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
54
|
54
90387-06151-00 Collar |
90387-06151-00 |
from US $6.09 |
||
|
55
|
55
90201-06033-00 Washer, Plate |
90201-06033-00 |
from US $1.70 |
||
