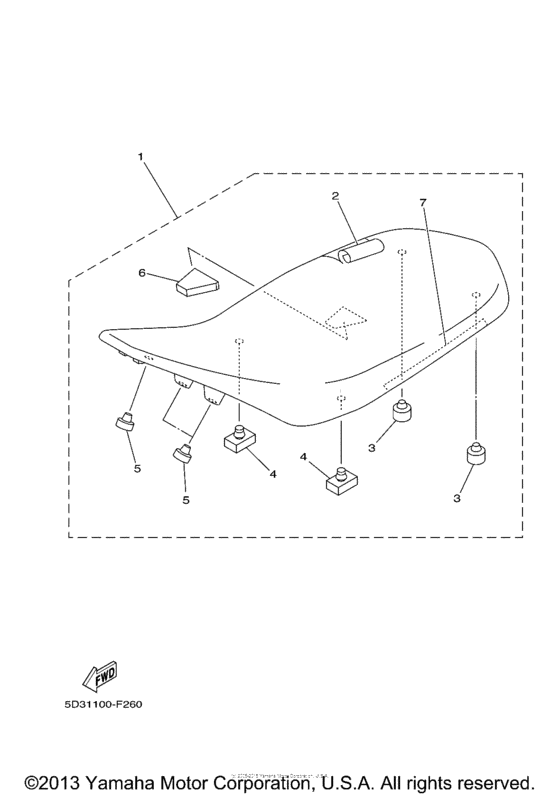

Seat Diagram Yamaha YFZ450 YFZ450R Special Edition 2
- Model code
- YFZ450SE2W
- Engine Capacity
- 449
- Year
- 2007
- Sales region
- USA
- Colour
- Black Flames
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition 2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5D3-24710-20-00 Single Seat Assy |
5D3-24710-20-00 |
from US $219.44 |
||
|
2
|
2
5TG-2470F-50-00 Seat Cover Comp |
5TG-2470F-50-00 |
US $170.41 |
||
|
3
|
3
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
4
|
4
214-24724-00-00 Damper, Seat |
214-24724-00-00 |
from US $7.65 |
||
|
5
|
5
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2 |
||
|
6
|
6
5TG-24725-00-00 Spacer 1 |
5TG-24725-00-00 |
from US $3.68 |
||
|
7
|
7
5D3-24737-00-00 Damper, Seat |
5D3-24737-00-00 |
from US $8.36 |
