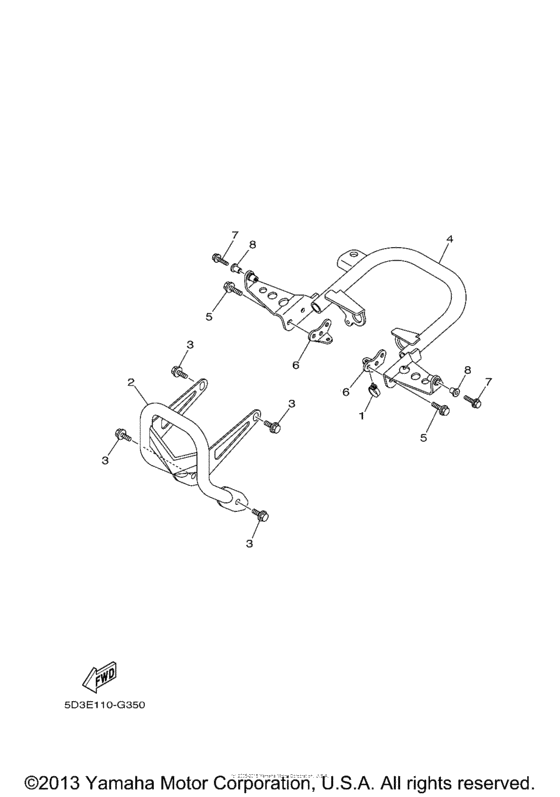

Guard Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- YFZ450SPX
- Engine Capacity
- 449
- Year
- 2008
- Sales region
- USA
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90464-20181-00 Clamp |
90464-20181-00 |
from US $1.70 |
||
|
2
|
2
5TG-2845N-00-00 Bar, Carry Front |
5TG-2845N-00-00 |
from US $73.44 |
||
|
3
|
3
95812-08014-00 Bolt, Flange |
95812-08014-00 |
US $1.56 |
||
| replacement | |||||
|
3
|
3
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
|
4
|
4
5D3-2845R-40-00 Bar, Carry Rear |
5D3-2845R-40-00 |
from US $245.92 |
||
|
5
|
5
95812-08020-00 Bolt, Flange |
95812-08020-00 |
from US $1.34 |
||
|
6
|
6
5TG-28215-00-00 Washer, Special |
5TG-28215-00-00 |
from US $5.81 |
||
|
7
|
7
958-02060-20-00
Bolt, Flange
|
958-02060-20-00 |
— | ||
| replacement | |||||
|
7
|
7
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
8
|
8
90387-06153-00 Collar |
90387-06153-00 |
from US $1.84 |
||
