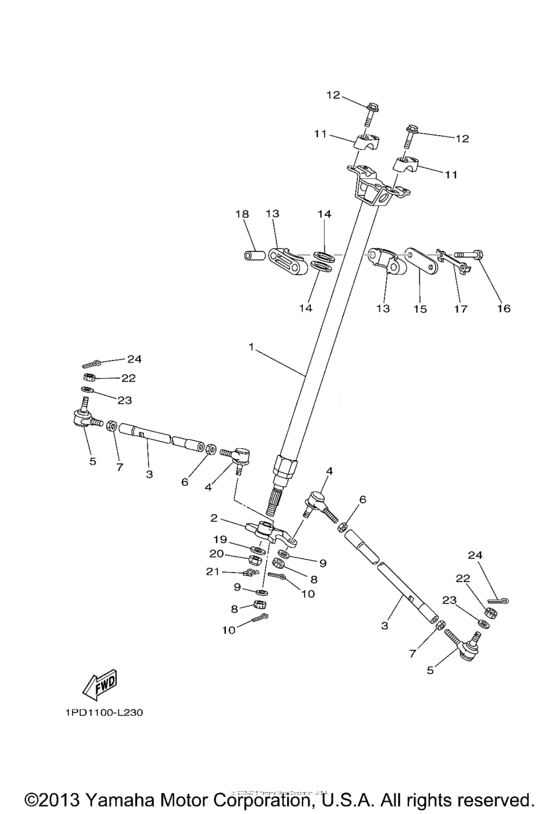

Steering Diagram Yamaha YFZ450 YFZ450R
- Model code
- YFZ45BB
- Engine Capacity
- 449
- Year
- 2012
- Sales region
- USA
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1S3-23813-10-00 Column, Steering 2 |
1S3-23813-10-00 |
from US $141.84 |
||
|
2
|
2
5TG-23816-10-00 Arm, Pitman |
5TG-23816-10-00 |
from US $67.97 |
||
|
3
|
3
1PD-23831-00-00 Rod, Tie |
1PD-23831-00-00 |
from US $30.04 |
||
|
4
|
4
1S3-23841-20-00 Joint, Universal 1 |
1S3-23841-20-00 |
from US $30.10 |
||
|
5
|
5
1S3-23845-20-00 Joint, Universal 2 |
1S3-23845-20-00 |
from US $31.08 |
||
|
6
|
6
90170-12055-00 Nut |
90170-12055-00 |
from US $2.13 |
||
| replacement | |||||
|
6
|
6
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.13 |
||
|
7
|
7
90170-12054-00 Nut |
90170-12054-00 |
from US $1.70 |
||
|
8
|
8
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
9
|
9
90209-10229-00 Washer |
90209-10229-00 |
from US $1.34 |
||
|
10
|
10
91402-20020-00 Pin, Cotter |
91402-20020-00 |
US $1.56 |
||
| replacement | |||||
|
10
|
10
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
11
|
11
8K1-23814-00-00 Holder, Handle |
8K1-23814-00-00 |
from US $19.19 |
||
| replacement | |||||
|
11
|
11
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
12
|
12
95822-08030-00 Bolt, Flange |
95822-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
|
13
|
13
1UY-23812-00-00 Bearing, Steering |
1UY-23812-00-00 |
from US $6.80 |
||
|
14
|
14
93112-31011-00 Oil Seal |
93112-31011-00 |
from US $2.98 |
||
|
15
|
15
1UY-23868-01-00 Bracket, Steering Lower |
1UY-23868-01-00 |
from US $9.14 |
||
| replacement | |||||
|
15
|
15
3GD-23868-01-00 Bracket, Steering Lower |
3GD-23868-01-00 |
from US $11.62 |
||
|
16
|
16
97022-08060-00 Bolt, Hexagon |
97022-08060-00 |
from US $2.41 |
||
| replacement | |||||
|
16
|
16
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
17
|
17
1UY-23894-01-00 Washer, Lock 1 |
1UY-23894-01-00 |
from US $1.70 |
||
|
18
|
18
90387-090R0-00 Collar (903-87090-R0-00)903-87090-R0-00 |
90387-090R0-00 |
from US $12.64 |
||
| replacement | |||||
|
18
|
18
903-87106-T4-00 Collar (903-87090-R0-00)903-87090-R0-00 |
903-87106-T4-00 |
from US $13.77 |
||
|
19
|
19
90201-14021-00 Washer, Plate |
90201-14021-00 |
from US $2.98 |
||
|
20
|
20
901-85140-09-00 Nut, Self-Locking |
901-85140-09-00 |
from US $7.79 |
||
|
21
|
21
91402-20025-00 Pin, Cotter (91401-20030-00)91401-20030-00 |
91402-20025-00 |
US $1.35 |
||
| replacement | |||||
|
21
|
21
914-90200-35-00 Pin, Cotter (91401-20030-00)91401-20030-00 |
914-90200-35-00 |
from US $2.27 |
||
|
22
|
22
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
23
|
23
90209-10229-00 Washer |
90209-10229-00 |
from US $1.34 |
||
|
24
|
24
91402-20020-00 Pin, Cotter |
91402-20020-00 |
US $1.56 |
||
| replacement | |||||
|
24
|
24
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
