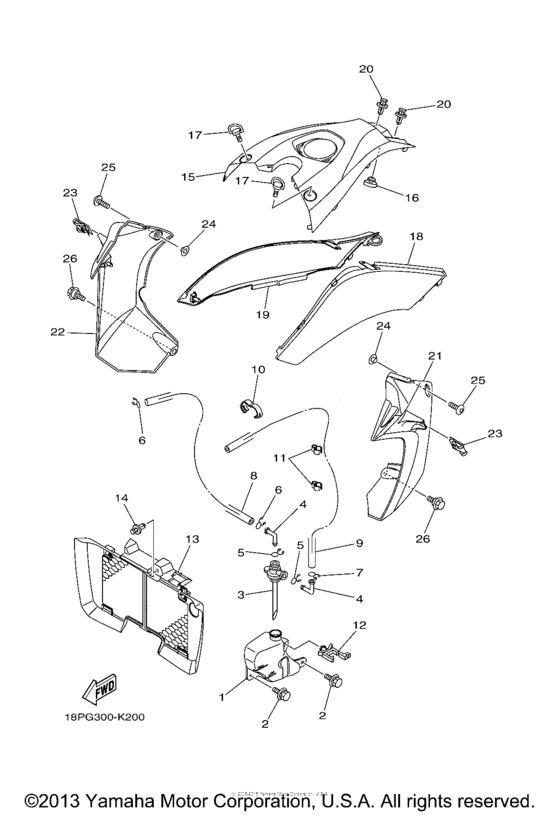

Side cover Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- YFZ45RSEB
- Engine Capacity
- 449
- Year
- 2012
- Sales region
- USA
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18P-21871-00-00 Tank, Recovery |
18P-21871-00-00 |
from US $22.24 |
||
|
2
|
2
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
3
|
3
20S-21875-10-00 Cap |
20S-21875-10-00 |
from US $7.62 |
||
|
4
|
4
26H-21828-00-00 Elbow |
26H-21828-00-00 |
from US $3.98 |
||
|
5
|
5
90467-11019-00 Clip |
90467-11019-00 |
US $1.70 |
||
| replacements | |||||
|
5
|
5
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.70 |
||
|
5
|
5
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
6
|
6
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
7
|
7
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
8
|
8
904-45092-51-00
Hose (L420)
|
904-45092-51-00 |
— | ||
| replacements | |||||
|
8
|
8
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
8
|
8
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
9
|
9
904-45091-23-00
Hose (L675)
|
904-45091-23-00 |
— | ||
| replacement | |||||
|
9
|
9
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
10
|
10
90464-16001-00 Clamp |
90464-16001-00 |
from US $1.84 |
||
|
11
|
11
90464-15065-00 Clamp |
90464-15065-00 |
from US $1.84 |
||
|
12
|
12
90464-15M08-00 Clamp |
90464-15M08-00 |
from US $1.84 |
||
|
13
|
13
18P-12467-00-00 Cover, Radiator |
18P-12467-00-00 |
from US $20.97 |
||
|
14
|
14
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.66 |
||
|
15
|
15
18P-2171A-20-00 Cover, Top |
18P-2171A-20-00 |
from US $40.20 |
||
|
16
|
16
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2 |
||
|
17
|
17
3FV-28386-00-00 Head |
3FV-28386-00-00 |
from US $20.84 |
||
|
18
|
18
18P-21711-00-00 Cover, Side 1 |
18P-21711-00-00 |
from US $35.23 |
||
|
19
|
19
18P-21721-00-00 Cover, Side 2 |
18P-21721-00-00 |
from US $35.23 |
||
|
20
|
20
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
21
|
21
18P-21731-60-00 Cover, Side 3 |
18P-21731-60-00 |
from US $23.94 |
||
|
22
|
22
18P-21741-60-00 Cover, Side 4 |
18P-21741-60-00 |
from US $23.94 |
||
|
23
|
23
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
24
|
24
90387-06170-00 Collar |
90387-06170-00 |
from US $1.98 |
||
|
25
|
25
90111-06084-00 Bolt,hex. Socket Button |
90111-06084-00 |
from US $1.70 |
||
|
26
|
26
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.34 |
||
