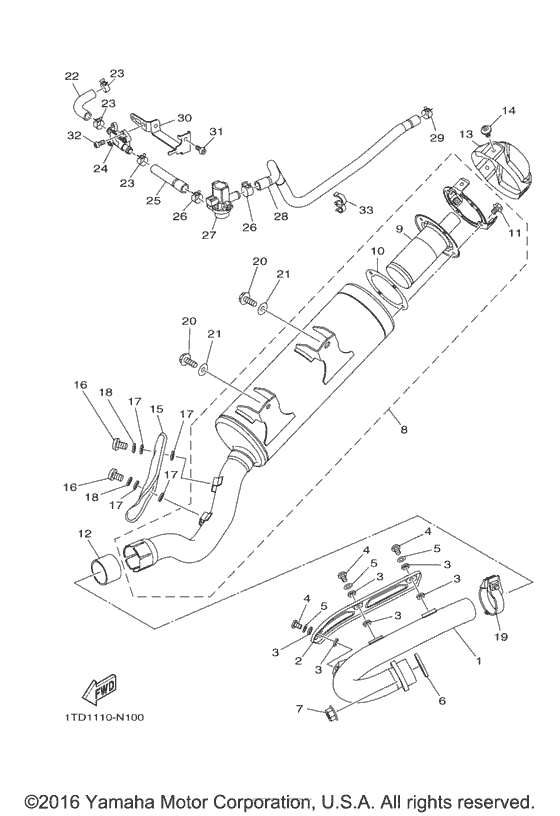

Exhaust Diagram Yamaha YFZ450 YFZ450R
- Model code
- 1TDL
- Engine Capacity
- 449
- Year
- 2016
- Sales region
- USA
- Базовая модель
- YFZ45YSXGL
- Colour
- Dpbse
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18P-14611-01-00 Pipe, Exhaust 1 |
18P-14611-01-00 |
from US $287.37 |
||
|
2
|
2
18P-14628-00-00 Protector, Exhaust Pipe |
18P-14628-00-00 |
from US $17.54 |
||
|
3
|
3
90201-05015-00 Washer, Plate |
90201-05015-00 |
from US $2.69 |
||
|
4
|
4
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.21 |
||
|
5
|
5
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
6
|
6
3VD-14613-01-00 Gasket, Exhaust PipeINCL. IN TOP END GASKET KIT |
3VD-14613-01-00 |
from US $4.64 |
||
|
7
|
7
957-02085-00-00
Nut, Flange
|
957-02085-00-00 |
— | ||
| replacements | |||||
|
7
|
7
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
7
|
7
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
7
|
7
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
8
|
8
1TD-E4703-00-00 Muffler Comp. 1 |
1TD-E4703-00-00 |
from US $406.26 |
||
|
9
|
9
1TD-E4780-00-00 Spark Arrester Assy |
1TD-E4780-00-00 |
US $67.64 |
||
|
10
|
10
2BG-E4755-00-00 Gasket, Silencer |
2BG-E4755-00-00 |
from US $23.11 |
||
|
11
|
11
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.07 |
||
|
12
|
12
1TD-E4714-00-00 Gasket, Muffler |
1TD-E4714-00-00 |
US $42.53 |
||
|
13
|
13
1TD-E4787-00-00 Cap, Silencer |
1TD-E4787-00-00 |
US $80.08 |
||
|
14
|
14
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.56 |
||
|
15
|
15
1TD-E4718-00-00 Protector, Muffler 1 |
1TD-E4718-00-00 |
from US $28.93 |
||
|
16
|
16
989-02060-10-00
Screw, Bind
|
989-02060-10-00 |
— | ||
| replacements | |||||
|
16
|
16
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.21 |
||
|
16
|
16
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
17
|
17
90201-05017-00 Washer, Plate |
90201-05017-00 |
from US $2.24 |
||
|
18
|
18
929-02062-00-00
Washer, Plain
|
929-02062-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
19
|
19
5BE-14788-00-00 Band, Silencer |
5BE-14788-00-00 |
from US $16.86 |
||
|
20
|
20
90105-08129-00 Bolt, Flange |
90105-08129-00 |
from US $1.70 |
||
|
21
|
21
90201-08048-00 Washer, Plate |
90201-08048-00 |
from US $1.70 |
||
|
22
|
22
1TD-14881-00-00 Hose, Bend 1 |
1TD-14881-00-00 |
US $26.33 |
||
|
23
|
23
90467-16063-00 Clip |
90467-16063-00 |
from US $1.35 |
||
| replacement | |||||
|
23
|
23
90467-16181-00 Clip |
90467-16181-00 |
from US $1.34 |
||
|
24
|
24
5GD-14803-00-00 Air Induction System Assy |
5GD-14803-00-00 |
from US $51.81 |
||
|
25
|
25
1TD-E4882-00-00 Hose, Bend 2 |
1TD-E4882-00-00 |
US $3.53 |
||
|
26
|
26
90467-170A0-00 Clip |
90467-170A0-00 |
from US $2.98 |
||
|
27
|
27
1TD-14840-00-00 Air Cut Valve Assy |
1TD-14840-00-00 |
US $119.68 |
||
|
28
|
28
1TD-14883-00-00 Hose, Bend 3 |
1TD-14883-00-00 |
US $51.77 |
||
|
29
|
29
90467-17089-00 Clip |
90467-17089-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
30
|
30
1TD-F117A-00-00 Stay |
1TD-F117A-00-00 |
US $6.52 |
||
|
31
|
31
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.56 |
||
|
32
|
32
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.56 |
||
|
33
|
33
904-64160-22-00 Clamp |
904-64160-22-00 |
US $4.10 |
||
