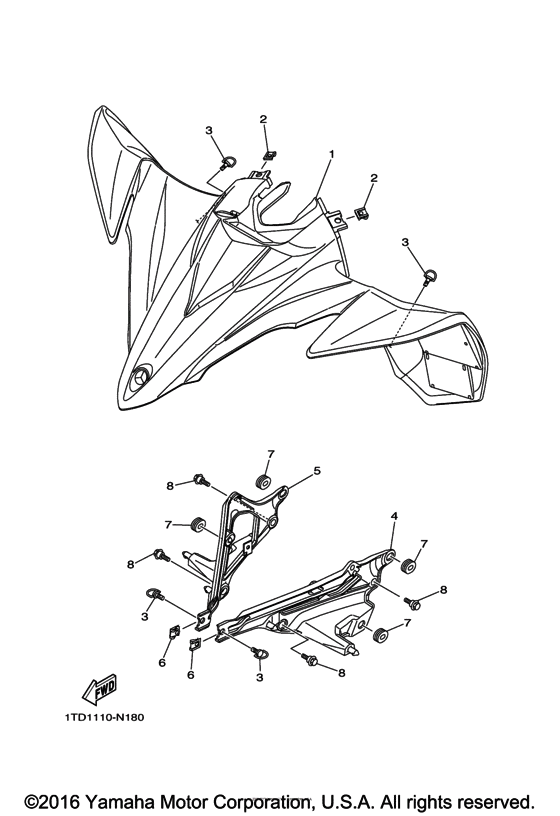

Front fender Diagram Yamaha YFZ450 YFZ450R
- Model code
- 1TDL
- Engine Capacity
- 449
- Year
- 2016
- Sales region
- USA
- Базовая модель
- YFZ45YSXGL
- Colour
- Dpbse
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TD-F1500-20-00 Front Fender Assy |
1TD-F1500-20-00 |
from US $139.73 |
||
|
2
|
2
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
3
|
3
8HG-28386-00-00 Head |
8HG-28386-00-00 |
from US $18.20 |
||
|
4
|
4
1TD-F1513-00-00 Stay, Fender 1 |
1TD-F1513-00-00 |
from US $21.82 |
||
|
5
|
5
1TD-F1514-00-00 Stay, Fender 2 |
1TD-F1514-00-00 |
from US $21.82 |
||
|
6
|
6
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
7
|
7
90480-01559-00 Grommet |
90480-01559-00 |
from US $4.39 |
||
|
8
|
8
90109-06199-00 Bolt |
90109-06199-00 |
from US $1.84 |
