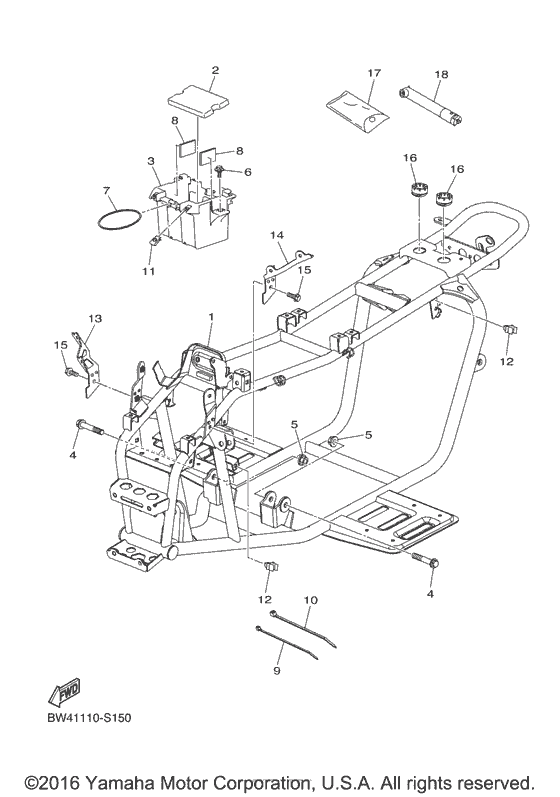

Frame Diagram Yamaha YFZ50
- Model code
- YFZ05YYXHL
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BW4-F1110-00-00 FRAME COMP. |
BW4-F1110-00-00 |
US $1,030.72 |
||
|
2
|
2
BW4-H2122-00-00 SEAT, BATTERY |
BW4-H2122-00-00 |
US $46.64 |
||
|
3
|
3
BW4-H212B-00-00 BOX, BATTERY 1 |
BW4-H212B-00-00 |
US $70.88 |
||
|
4
|
4
BW4-F6332-00-00 BOLT |
BW4-F6332-00-00 |
US $13.45 |
||
|
5
|
5
BD3-F1839-10-00 NUT |
BD3-F1839-10-00 |
US $7.83 |
||
|
6
|
6
BD3-F1632-10-00 BOLT 2 |
BD3-F1632-10-00 |
US $5.20 |
||
|
7
|
7
BD3-F4398-00-00 Band 1 |
BD3-F4398-00-00 |
US $11.09 |
||
|
8
|
8
BW4-F1639-00-00 DAMPER 2 |
BW4-F1639-00-00 |
US $3.04 |
||
|
9
|
9
BD3-F1646-00-00 Band |
BD3-F1646-00-00 |
US $2.63 |
||
|
10
|
10
BW4-F1647-00-00 BAND |
BW4-F1647-00-00 |
US $2.52 |
||
|
11
|
11
BW4-F1536-00-00 NUT 2 |
BW4-F1536-00-00 |
US $6.08 |
||
|
12
|
12
BD3-F15A3-00-00 Clamp |
BD3-F15A3-00-00 |
from US $2.02 |
||
|
13
|
13
BW4-H4119-00-00 STAY, HEADLIGHT 2 |
BW4-H4119-00-00 |
US $41.24 |
||
|
14
|
14
BW4-H4118-00-00 STAY, HEADLIGHT 1 |
BW4-H4118-00-00 |
US $41.24 |
||
|
15
|
15
BD3-H1452-10-00 BOLT |
BD3-H1452-10-00 |
US $3.13 |
||
|
16
|
16
BD3-F113B-00-00 Damper |
BD3-F113B-00-00 |
US $10.35 |
||
|
17
|
17
BD3-F8100-10-00 TOOL KIT |
BD3-F8100-10-00 |
US $182.95 |
||
|
18
|
18
BD3-F811A-10-00 GAUGE, AIR |
BD3-F811A-10-00 |
from US $29.96 |
