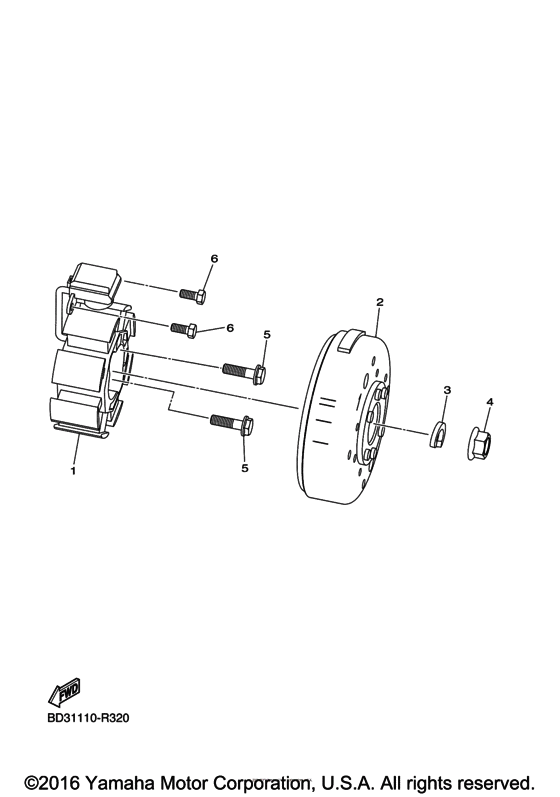

Generator Diagram Yamaha YFZ50
- Model code
- YFZ05YYXHL
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BW4-H1410-00-00 STATOR ASSY |
BW4-H1410-00-00 |
US $450.54 |
||
|
2
|
2
BD3-H1450-00-00 Rotor Assy |
BD3-H1450-00-00 |
from US $240.40 |
||
|
3
|
3
BD3-H1554-10-00 WASHER |
BD3-H1554-10-00 |
from US $1.56 |
||
|
4
|
4
BD3-H1353-10-00 NUT |
BD3-H1353-10-00 |
from US $2.98 |
||
|
5
|
5
BD3-E2157-10-00 BOLT |
BD3-E2157-10-00 |
from US $1.42 |
||
|
6
|
6
BD3-H1352-10-00 BOLT |
BD3-H1352-10-00 |
from US $2.38 |
