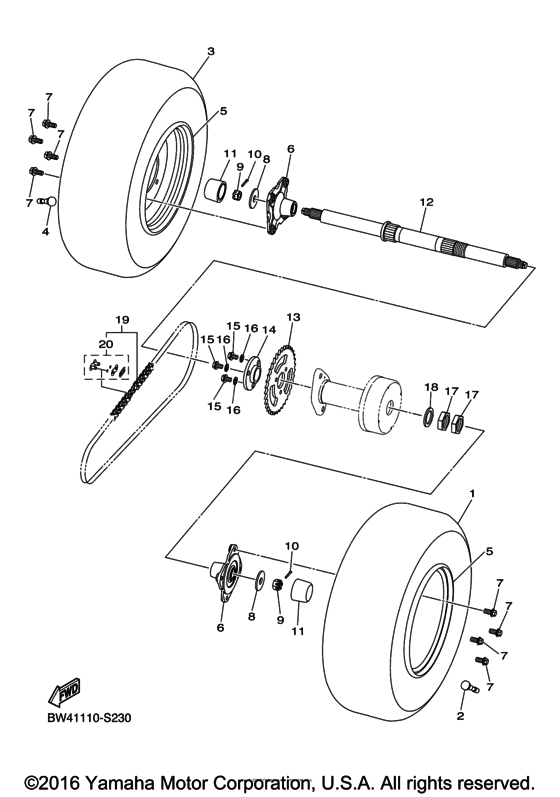

Rear Axle Wheel Diagram Yamaha YFZ50
- Model code
- YFZ05YYXHL
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BW4-F53P3-00-00 TIRE |
BW4-F53P3-00-00 |
US $361.75 |
||
|
2
|
2
BD3-F5170-00-00 Air Valve Assy |
BD3-F5170-00-00 |
from US $17.14 |
||
|
3
|
3
BW4-F53P3-00-00 TIRE |
BW4-F53P3-00-00 |
US $361.75 |
||
|
4
|
4
BD3-F5170-00-00 Air Valve Assy |
BD3-F5170-00-00 |
from US $17.14 |
||
|
5
|
5
BW4-F5390-00-00 REAR WHEEL COMP. |
BW4-F5390-00-00 |
US $263.79 |
||
|
6
|
6
BW4-F5377-00-00 COLLAR, WHEEL |
BW4-F5377-00-00 |
US $216.54 |
||
|
7
|
7
BD3-F4592-10-00 BOLT |
BD3-F4592-10-00 |
US $9.95 |
||
|
8
|
8
BW4-F2243-00-00 WASHER 1 |
BW4-F2243-00-00 |
US $14.85 |
||
|
9
|
9
BW4-F5382-00-00 NUT, AXLE |
BW4-F5382-00-00 |
US $10.31 |
||
|
10
|
10
BD3-F112N-10-00 PIN |
BD3-F112N-10-00 |
US $2.75 |
||
|
11
|
11
BD3-F512A-00-00 Cap, Wheel |
BD3-F512A-00-00 |
US $12.24 |
||
|
12
|
12
BW4-F5381-00-00 AXLE, WHEEL |
BW4-F5381-00-00 |
US $553.32 |
||
|
13
|
13
BW4-F5438-00-00 SPROCKET, DRIVEN (38 |
BW4-F5438-00-00 |
US $119.30 |
||
|
14
|
14
BD3-F5386-00-00 Collar, Sprocket Axle |
BD3-F5386-00-00 |
from US $83.16 |
||
|
15
|
15
BW4-F3459-00-00 BOLT |
BW4-F3459-00-00 |
from US $5.40 |
||
|
16
|
16
BD3-F2156-10-00 WASHER, PLATE |
BD3-F2156-10-00 |
from US $1.70 |
||
|
17
|
17
BD3-F1636-10-00 NUT |
BD3-F1636-10-00 |
US $52.18 |
||
|
18
|
18
BD3-F3737-00-00 Washer 1 |
BD3-F3737-00-00 |
US $23.98 |
||
|
19
|
19
BW4-F53C0-00-00 CHAIN |
BW4-F53C0-00-00 |
US $40.36 |
||
|
20
|
20
BW4-E6548-00-00 JOINT, CHAIN |
BW4-E6548-00-00 |
US $9.32 |
