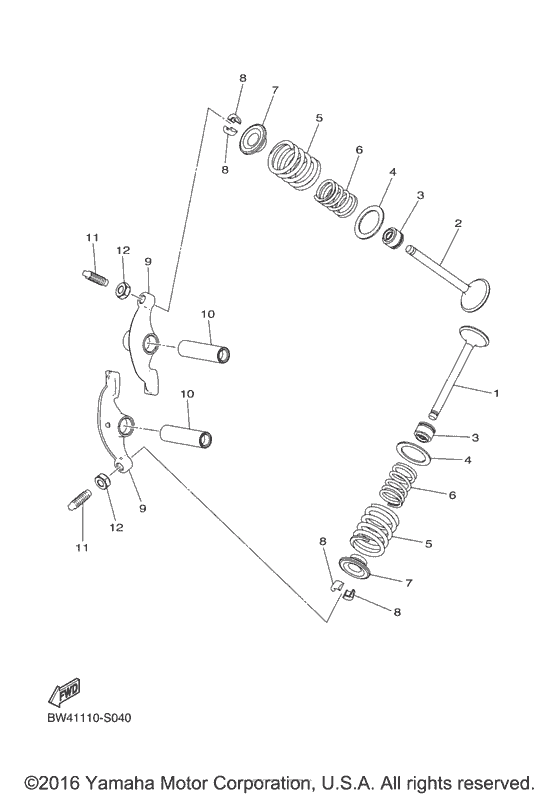

Valve Diagram Yamaha YFZ50
- Model code
- YFZ05YYXHL
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BW4-E2121-00-00 Valve, Exhaust |
BW4-E2121-00-00 |
US $89.23 |
||
|
2
|
2
BW4-E2111-00-00 Valve, Intake |
BW4-E2111-00-00 |
US $54.05 |
||
|
3
|
3
BD3-E2119-00-00 Seal, Valve Stem |
BD3-E2119-00-00 |
from US $6.74 |
||
|
4
|
4
BD3-E2116-00-00 Seat, Valve Spring |
BD3-E2116-00-00 |
US $2.77 |
||
|
5
|
5
BD3-E2113-00-00 Spring, Valve 1 |
BD3-E2113-00-00 |
US $10.85 |
||
|
6
|
6
BD3-E2114-00-00 Spring, Valve 2 |
BD3-E2114-00-00 |
US $11.05 |
||
|
7
|
7
BD3-E2117-00-00 Retainer, Valve Spring |
BD3-E2117-00-00 |
US $13.59 |
||
|
8
|
8
BD3-E2118-00-00 Lock, Valve Spring Retainer |
BD3-E2118-00-00 |
US $4.41 |
||
|
9
|
9
BD3-E2151-00-00 Arm, Valve Rocker |
BD3-E2151-00-00 |
from US $20.20 |
||
|
10
|
10
BD3-E2146-00-00 Shaft, Rocker |
BD3-E2146-00-00 |
US $9.50 |
||
|
11
|
11
BD3-E2159-00-00 Screw, Valve Adjusting |
BD3-E2159-00-00 |
from US $6.40 |
||
|
12
|
12
BD3-E2158-00-00 Nut, Lock |
BD3-E2158-00-00 |
from US $2.36 |
