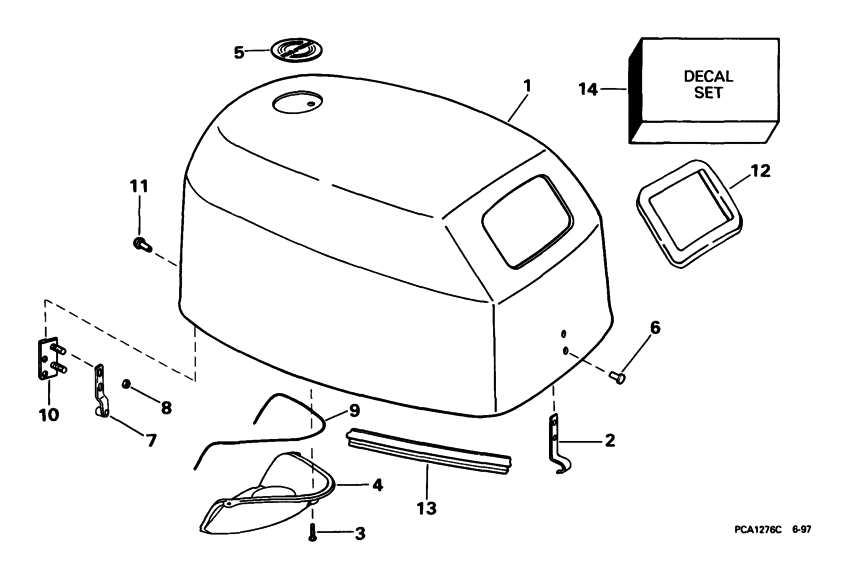

Engine Cover Diagram Bombardier 8
- Year
- 1999
- Model
- E8
- Model code
- RB4EEM
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0445131
Engine Cover Assy
|
0445131 |
— | ||
|
2
|
2
0446356
Hook Assy., Front
|
0446356 |
— | ||
|
3
|
3
0330838
Screw, Stop, W.o.t
|
0330838 |
— | ||
|
4
|
4
0446174
Baffle
|
0446174 |
— | ||
|
5
|
5
0213570
Lens, Four-Stroke
|
0213570 |
— | ||
|
6
|
6
0446339
Rivet
|
0446339 |
— | ||
|
7
|
7
0437119
Hook, Rear
|
0437119 |
— | ||
|
8
|
8
0341237
Nut, Cover To Bracket
|
0341237 |
— | ||
|
10
|
10
0437120
Bracket Assy
|
0437120 |
— | ||
|
11
|
11
0446338
Rivet, Rear
|
0446338 |
— | ||
|
12
|
12
0446256
Seal, Housing To Cover
|
0446256 |
— | ||
|
13
|
13
0446355
Seal, Upper To Lower Covers
|
0446355 |
— | ||
|
14
|
14
0449526
Decal Set
|
0449526 |
— |
