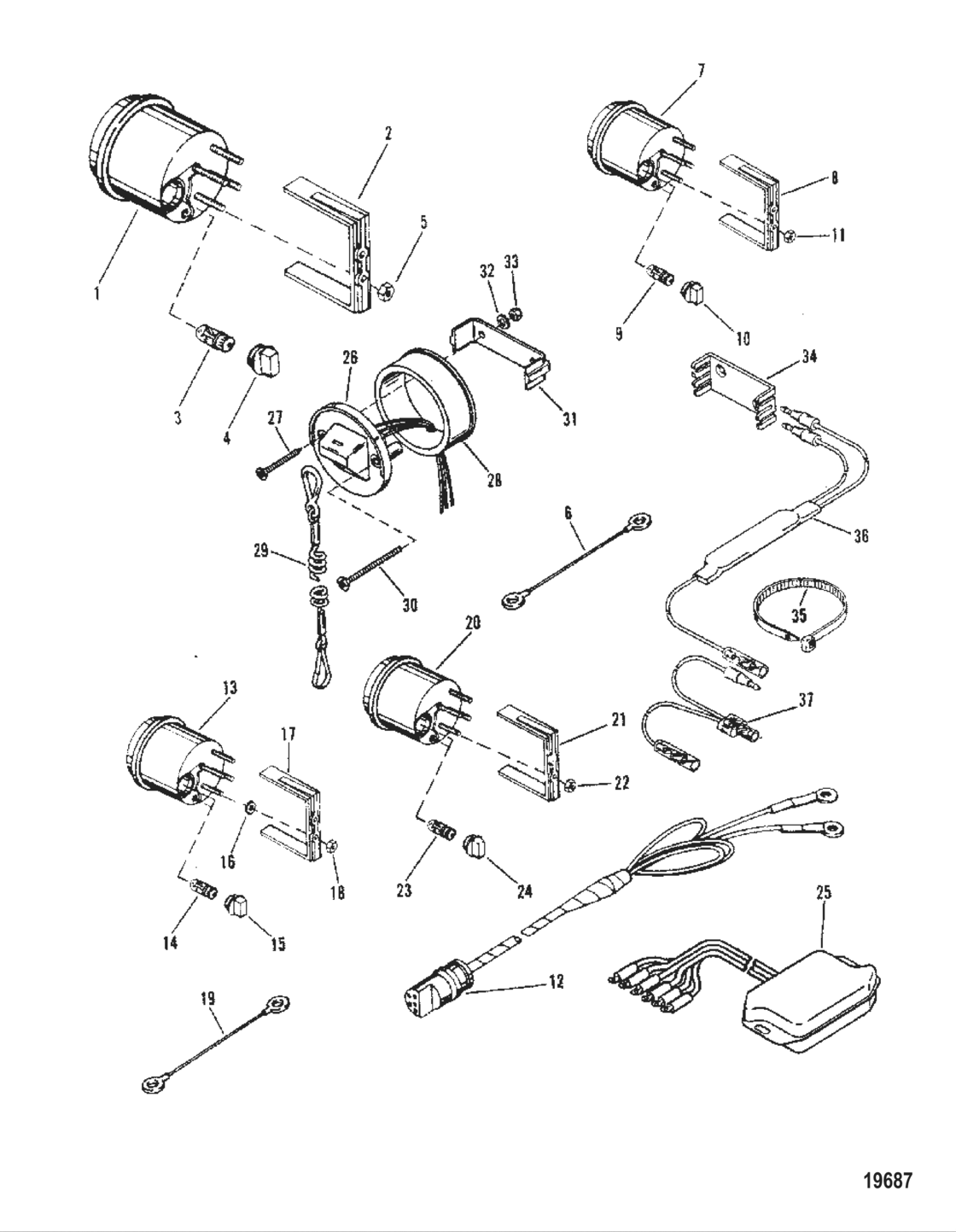

Instrumentation (Mercury And Mariner) Diagram Mercury-Mercruiser 135
- Power
- 135
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0C100861 THRU 0C239552
- Кол-в цилиндров
- 6
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15110A1 Tachometer |
15110A1 |
US $102.69 |
||
| replacement | |||||
|
1
|
1
895283Q43 Tachometer Kit (0-6000 Rpm) Black Face, Orange/white Graduations, Black Bezel |
895283Q43 |
US $102.69 |
||
|
2
|
2
79101
New Genuine Part
|
79101 |
— | ||
| replacement | |||||
|
2
|
2
79101T
New Genuine Part
|
79101T |
— | ||
|
3
|
3
72729 Light bulb, wedge base |
72729 |
US $5.10 |
||
|
4
|
4
79888 Socket, light bulb |
79888 |
US $5.46 |
||
|
5
|
5
26419 Nut, starter solenoid terminal |
26419 |
US $1.50 |
||
|
6
|
6
86322A7 Cable Assembly (1.50 Feet) Black |
86322A7 |
US $2.69 |
||
|
6
|
6
86323A5 Cable Assembly (1.50 Feet) Purple |
86323A5 |
US $2.69 |
||
|
7
|
7
15113A4 Trim gauge |
15113A4 |
US $31.70 |
||
| replacement | |||||
|
7
|
7
895292Q41 Gauge Power Trim Indicator, Black Face, Orange/white Graduations, Black Bezel |
895292Q41 |
US $31.70 |
||
|
8
|
8
79480
New Genuine Part
|
79480 |
— | ||
|
9
|
9
72729 Light bulb, wedge base |
72729 |
US $5.10 |
||
|
10
|
10
79888 Socket, light bulb |
79888 |
US $5.46 |
||
|
11
|
11
26419 Nut, starter solenoid terminal |
26419 |
US $1.50 |
||
|
12
|
12
86396A8 Harness Assembly Tachometer (5.00 Feet) |
86396A8 |
US $55.04 |
||
|
13
|
13
15166A1 Temperature gauge |
15166A1 |
US $49.30 |
||
| replacement | |||||
|
13
|
13
895287Q41 Water Temperature Gauge Kit (100-240 F) Black Face, Orange/white Graduations, Black Bezel |
895287Q41 |
US $49.30 |
||
|
14
|
14
72729 Light bulb, wedge base |
72729 |
US $5.10 |
||
|
15
|
15
79888 Socket, light bulb |
79888 |
US $5.46 |
||
|
16
|
16
26427
Washer, gauge terminal
|
26427 |
— | ||
|
17
|
17
79480
New Genuine Part
|
79480 |
— | ||
|
18
|
18
26419 Nut, starter solenoid terminal |
26419 |
US $1.50 |
||
|
19
|
19
86323A2
Cable assembly, purple
|
86323A2 |
— | ||
|
19
|
19
61600A16
Cable Assembly (17.00 Inches) Black
|
61600A16 |
— | ||
|
19
|
19
88824A4 Cable assembly, |
88824A4 |
US $6.58 |
||
|
20
|
20
15115A2 Synchronizer gauge(Counter Rotation) |
15115A2 |
US $140.82 |
||
| replacement | |||||
|
20
|
20
895294Q41 Gauge Dual Engine Synchronizer, Black Face, Orange/white Graduation, Black Bezel(Counter Rotation) |
895294Q41 |
US $140.82 |
||
|
21
|
21
79480
New Genuine Part
(Counter Rotation) |
79480 |
— | ||
|
22
|
22
26419 Nut, starter solenoid terminal(Counter Rotation) |
26419 |
US $1.50 |
||
|
23
|
23
72729 Light bulb, wedge base(Counter Rotation) |
72729 |
US $5.10 |
||
|
24
|
24
79888 Socket, light bulb(Counter Rotation) |
79888 |
US $5.46 |
||
|
25
|
25
14502
New Genuine Part
(Counter Rotation) |
14502 |
— | ||
| replacement | |||||
|
25
|
25
145022
New Genuine Part
(Counter Rotation) |
145022 |
— | ||
|
26
|
26
19674A1
Switch Assembly Lanyard
(Counter Rotation) |
19674A1 |
— | ||
|
27
|
27
18303 Screw, stainless steel(Counter Rotation) |
18303 |
US $4.29 |
||
|
28
|
28
813679 New Genuine Part(Counter Rotation) |
813679 |
US $15.10 |
||
|
29
|
29
15920A54
New Genuine Part
(Counter Rotation) |
15920A54 |
— | ||
| replacement | |||||
|
29
|
29
15920Q54
New Genuine Part
(Counter Rotation) |
15920Q54 |
— | ||
|
30
|
30
32866 Screw, inlet cover to boat(Counter Rotation) |
32866 |
US $2.78 |
||
|
31
|
31
18321 New Genuine Part(Counter Rotation) |
18321 |
US $6.85 |
||
|
32
|
32
24676 Washer, , control panel stud(Counter Rotation) |
24676 |
US $1.28 |
||
|
33
|
33
68219 Nut, stainless steel(Counter Rotation) |
68219 |
US $3.40 |
||
|
34
|
34
79146 New Genuine Part(Counter Rotation) |
79146 |
US $4.64 |
||
|
35
|
35
90077 Sta-strap, fuel tubing(Counter Rotation) |
90077 |
US $0.51 |
||
| replacement | |||||
|
35
|
35
816311T Tie Strap (8.00 Inches)(Counter Rotation) |
816311T |
US $0.51 |
||
|
36
|
36
812497A2
Diode kit-lanyard
(Counter Rotation) |
812497A2 |
— | ||
|
37
|
37
11149A2 Cable Assembly (6.00 Inches)(Counter Rotation) |
11149A2 |
US $7.73 |
||
