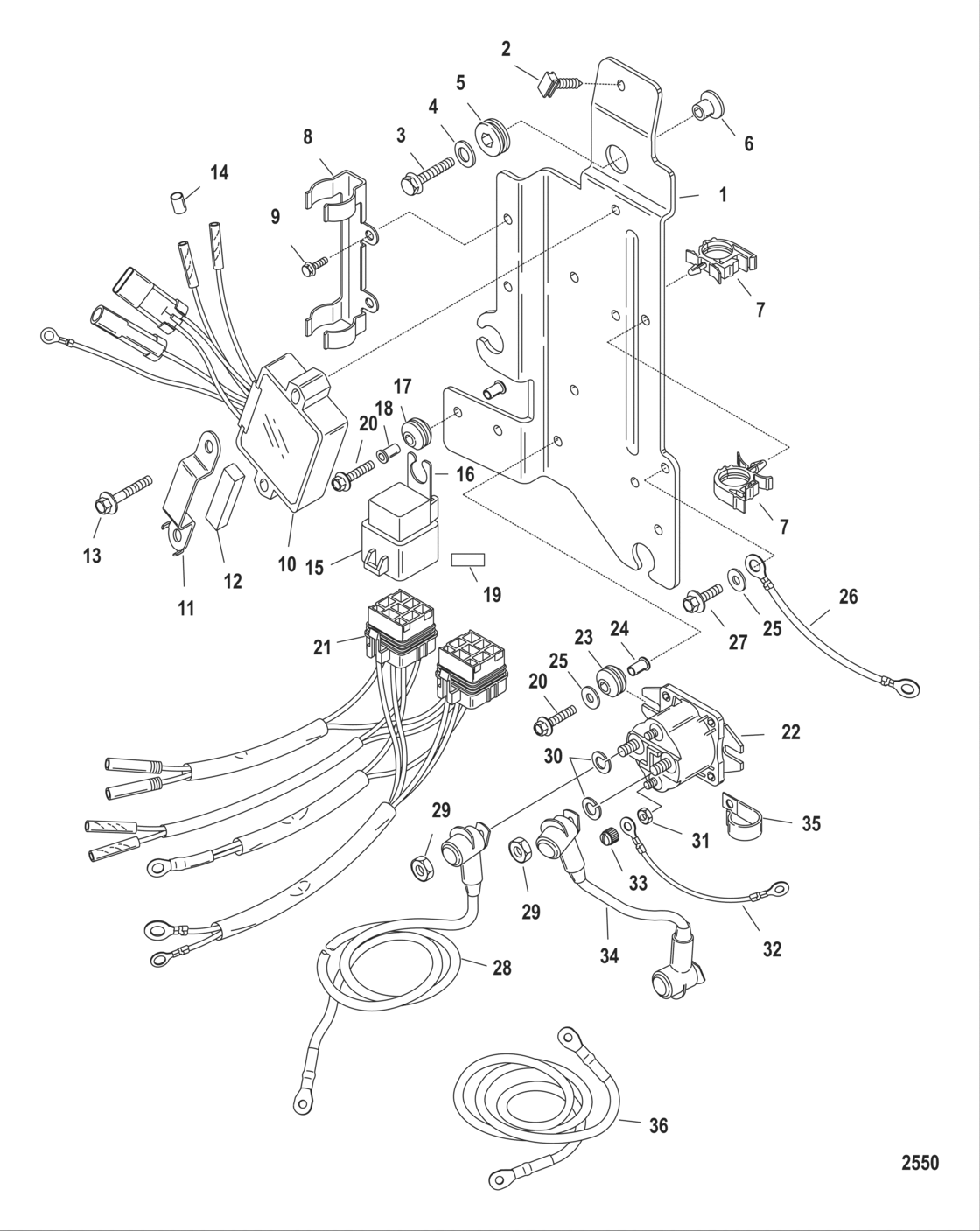

Solenoid Mounting Diagram Mercury-Mercruiser 140
- Power
- 140
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0T178500 THRU 1B226999
- Серия
- International
- Кол-в цилиндров
- 6
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8571641 New Genuine Part |
8571641 |
US $67.78 |
||
|
2
|
2
828991 Clip |
828991 |
US $4.40 |
||
| replacement | |||||
|
2
|
2
828991T Clip |
828991T |
US $4.40 |
||
|
3
|
3
60411 Screw |
60411 |
US $1.28 |
||
|
4
|
4
49436 Washer |
49436 |
US $0.69 |
||
|
5
|
5
833155 Grommet |
833155 |
US $3.71 |
||
|
6
|
6
8502341 Bushing |
8502341 |
US $2.54 |
||
|
7
|
7
828791 New Genuine Part |
828791 |
US $2.43 |
||
|
8
|
8
8261151 New Genuine Part |
8261151 |
US $21.79 |
||
|
9
|
9
82239312 Screw |
82239312 |
US $0.93 |
||
|
10
|
10
883072T2 New Genuine Part |
883072T2 |
US $380.78 |
||
|
11
|
11
858413 New Genuine Part |
858413 |
US $21.66 |
||
| replacement | |||||
|
11
|
11
893771 New Genuine Part |
893771 |
US $21.66 |
||
|
12
|
12
8308971 Pad-foam |
8308971 |
US $4.53 |
||
|
13
|
13
82129135 Screw |
82129135 |
US $3.14 |
||
|
14
|
14
13541 New Genuine Part |
13541 |
US $2.78 |
||
|
15
|
15
882751A1 Relay assy-trim |
882751A1 |
from US $31.43 |
||
| replacement | |||||
|
15
|
15
8M0207773 Relay assy-trim |
8M0207773 |
US $31.43 |
||
|
16
|
16
828102 New Genuine Part |
828102 |
US $4.18 |
||
|
17
|
17
818967 Grommet |
818967 |
US $2.78 |
||
|
18
|
18
818968 Bushing |
818968 |
US $2.43 |
||
|
19
|
19
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
20
|
20
82129125 Screw |
82129125 |
US $3.01 |
||
|
21
|
21
819514A11 Harness assembly, trim |
819514A11 |
US $74.67 |
||
|
22
|
22
817109A2 Starter solenoid |
817109A2 |
US $79.90 |
||
|
23
|
23
822179 Grommet |
822179 |
US $3.82 |
||
|
24
|
24
818968 Bushing |
818968 |
US $2.43 |
||
|
25
|
25
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
26
|
26
856583A3 Cable Assembly |
856583A3 |
US $27.33 |
||
|
27
|
27
82129114 Screw |
82129114 |
US $1.97 |
||
|
28
|
28
88439A34 Cable Assembly Positive - Battery |
88439A34 |
US $43.78 |
||
|
29
|
29
68292 Nut |
68292 |
US $3.36 |
||
|
30
|
30
26993 Lockwasher |
26993 |
US $1.62 |
||
|
31
|
31
45076 Nut, circuit breaker terminal |
45076 |
US $2.09 |
||
|
32
|
32
88807A16 Cable Assembly (4.00 Inches) Black |
88807A16 |
US $4.96 |
||
|
33
|
33
813938 Cap nut |
813938 |
US $3.14 |
||
|
34
|
34
93388A14 Cable Assembly Yellow/black |
93388A14 |
US $19.47 |
||
|
35
|
35
55098 J clip |
55098 |
US $4.40 |
||
|
36
|
36
88439A24 Cable Assembly Negative - Battery |
88439A24 |
US $36.67 |
||
