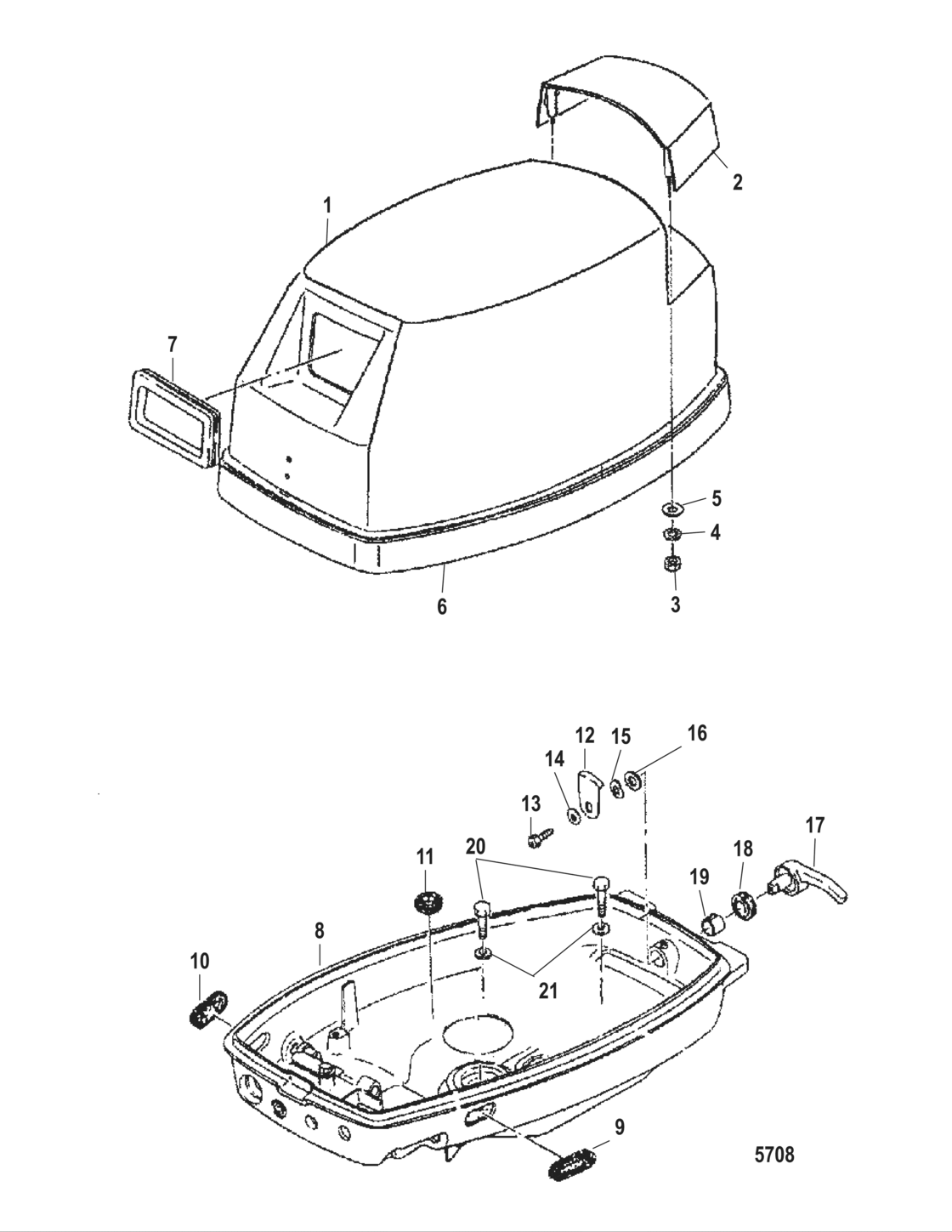

Cowling Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0N001590 THRU 0N055284
- Серия
- International
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
803792A1
Top Cowl Assembly (Black-Decaled)
|
803792A1 |
— | ||
| replacement | |||||
|
1
|
1
8M0073908
ORD 100-8M0074337
|
8M0073908 |
— | ||
|
1
|
1
803792A2
Top Cowl Assembly (Silver-Decaled
|
803792A2 |
— | ||
| replacement | |||||
|
1
|
1
8M0073909
TOP COWL-SILVER
|
8M0073909 |
— | ||
|
1
|
1
803792A10
Top Cowl Assembly Black - Without Decals
|
803792A10 |
— | ||
| replacement | |||||
|
1
|
1
8M0073908
ORD 100-8M0074337
|
8M0073908 |
— | ||
|
1
|
1
803792A11
Top Cowl Assembly Silver - Without Decals
|
803792A11 |
— | ||
| replacement | |||||
|
1
|
1
8M0073909
TOP COWL-SILVER
|
8M0073909 |
— | ||
|
2
|
2
803793
Cover-black
(Black) |
803793 |
— | ||
| replacement | |||||
|
2
|
2
8M0129134 TILT HANDLE(Black) |
8M0129134 |
US $105.03 |
||
|
2
|
2
8037931
Cap, cowl
(Silver) |
8037931 |
— | ||
| replacement | |||||
|
2
|
2
8M0128843
TILT HANDLE
(Silver) |
8M0128843 |
— | ||
|
3
|
3
400212 Nut, stainless steel |
400212 |
US $2.43 |
||
|
4
|
4
400256 Lockwasher |
400256 |
US $1.62 |
||
|
5
|
5
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
6
|
6
803794
Seal
|
803794 |
— | ||
| replacement | |||||
|
6
|
6
8M0065494
COWL SEAL
|
8M0065494 |
— | ||
|
7
|
7
162281
Seal, rubber
|
162281 |
— | ||
|
8
|
8
803791 Bottom cowl |
803791 |
US $380.78 |
||
|
9
|
9
162311 Grommet |
162311 |
US $14.90 |
||
|
10
|
10
162312 Grommet |
162312 |
US $4.78 |
||
|
11
|
11
8036675 Seal, oil |
8036675 |
US $9.74 |
||
|
12
|
12
162221 New Genuine Part |
162221 |
US $19.01 |
||
|
13
|
13
16223 Bolt |
16223 |
US $3.71 |
||
|
14
|
14
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
15
|
15
16221 Wave washer |
16221 |
US $3.14 |
||
|
16
|
16
953922 Washer |
953922 |
US $4.53 |
||
|
17
|
17
162186 New Genuine Part |
162186 |
US $15.65 |
||
|
18
|
18
16219 Seal |
16219 |
US $5.57 |
||
|
19
|
19
163365 Bushing |
163365 |
US $2.21 |
||
|
20
|
20
16705 Bolt |
16705 |
US $3.60 |
||
|
21
|
21
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
NI
|
NI
803663A99
Gasket Set Powerhead
(18) |
803663A99 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0065498 GASKET SET(18) |
8M0065498 |
US $355.78 |
||
|
NI
|
NI
803663A01
Gasket Set Powerhead
(15) |
803663A01 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0065497 GASKET SET(15) |
8M0065497 |
US $213.22 |
||
