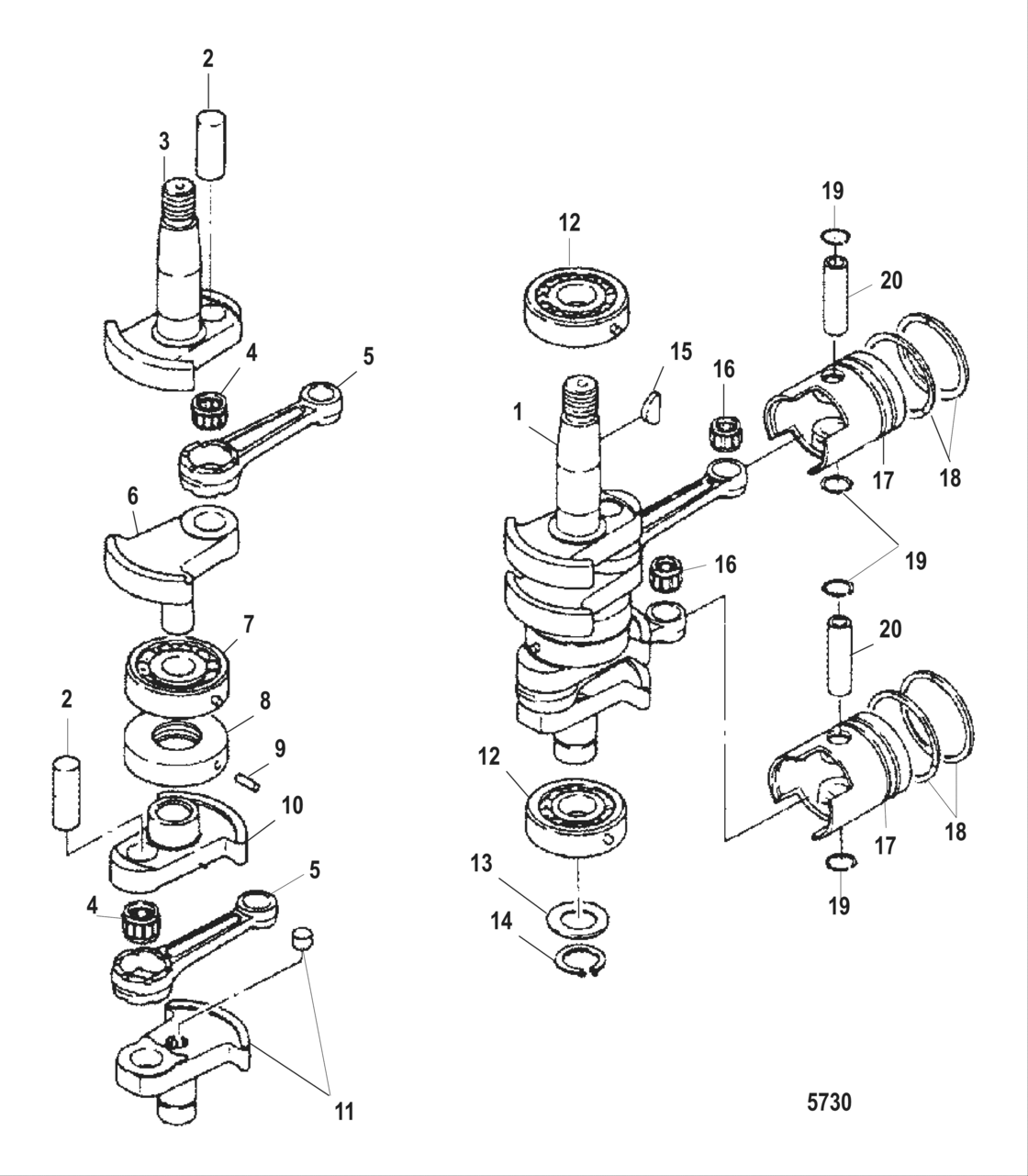

Crankshaft Pistons And Conecting Rods Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0N001590 THRU 0N055284
- Серия
- International
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
803672A1
Crankshaft Assembly
[0N046439] & Below |
803672A1 |
— | ||
| replacement | |||||
|
1
|
1
8M0047749 CRANKSHAFT[0N046439] & Below |
8M0047749 |
US $810.51 |
||
|
1
|
1
803672A04
Crankshaft kit
[0N046440] & Up |
803672A04 |
— | ||
| replacement | |||||
|
1
|
1
8M0047749 CRANKSHAFT[0N046440] & Up |
8M0047749 |
US $810.51 |
||
|
2
|
2
803673
Pin, crank
|
803673 |
— | ||
| replacement | |||||
|
2
|
2
8M0074253 CRANK PIN |
8M0074253 |
US $26.56 |
||
|
3
|
3
8036721
Crankshaft, a
|
8036721 |
— | ||
| replacement | |||||
|
3
|
3
803672A02 CRANKSHAFT KIT |
803672A02 |
US $293.55 |
||
|
4
|
4
803675 Bearing, needle |
803675 |
US $20.45 |
||
|
5
|
5
803674
Connecting rod
|
803674 |
— | ||
| replacement | |||||
|
5
|
5
803674T CONNECTING ROD |
803674T |
US $105.33 |
||
|
6
|
6
8036722
Crankshaft, b
|
8036722 |
— | ||
| replacement | |||||
|
6
|
6
8M0090845 CRANKSHAFT B |
8M0090845 |
US $229.33 |
||
|
7
|
7
160494 Bearing, ball |
160494 |
US $38.85 |
||
|
8
|
8
8036672 Seal |
8036672 |
US $39.78 |
||
|
9
|
9
161791 Pin |
161791 |
US $1.97 |
||
|
10
|
10
8036723
Crankshaft, c
|
8036723 |
— | ||
| replacement | |||||
|
10
|
10
8M0090846 CRANKSHAFT C |
8M0090846 |
US $232.45 |
||
|
11
|
11
8036724 Crankshaft, d |
8036724 |
US $249.01 |
||
|
12
|
12
160494 Bearing, ball |
160494 |
US $38.85 |
||
|
13
|
13
853715 Spacer |
853715 |
US $3.23 |
||
|
14
|
14
803676
E-clip
|
803676 |
— | ||
| replacement | |||||
|
14
|
14
853714 C clip |
853714 |
US $3.23 |
||
|
15
|
15
160531 Key |
160531 |
US $17.20 |
||
|
16
|
16
16052 Bearing, roller |
16052 |
US $34.99 |
||
|
17
|
17
803677
Piston
(Standard)(18) |
803677 |
— | ||
| replacement | |||||
|
17
|
17
803677T
PISTON
(Standard)(18) |
803677T |
— | ||
|
17
|
17
8036771
Piston
(0.5 Oversize)(18) |
8036771 |
— | ||
| replacement | |||||
|
17
|
17
803677T01
PISTON
(0.5 Oversize)(18) |
803677T01 |
— | ||
|
17
|
17
803677002
Piston
(Standard)(15) |
803677002 |
— | ||
| replacement | |||||
|
17
|
17
803677T04
ORDER 8M0103788
(Standard)(15) |
803677T04 |
— | ||
|
17
|
17
803677003
Piston
(0.5 Oversize)(15) |
803677003 |
— | ||
|
18
|
18
803678A1
Ring Set Piston
(Standard)(18) |
803678A1 |
— | ||
|
18
|
18
803678A2
Ring Set Piston
(0.5 Oversize)(18) |
803678A2 |
— | ||
|
18
|
18
803678A07
Ring set, piston
(Standard)(15) |
803678A07 |
— | ||
|
18
|
18
803678A08
Ring Set Piston
(0.5 Oversize)(15) |
803678A08 |
— | ||
|
19
|
19
16057 Clip |
16057 |
US $2.55 |
||
|
20
|
20
803680
Pin, piston
(18) |
803680 |
— | ||
| replacement | |||||
|
20
|
20
803680002 PIN-PISTON(18) |
803680002 |
US $13.06 |
||
|
20
|
20
825713001 Pin, piston(15) |
825713001 |
US $14.96 |
||
| replacement | |||||
|
20
|
20
825713002 Pin, piston(15) |
825713002 |
US $14.96 |
||
|
NI
|
NI
803679A1
New Genuine Part
(18) [0N046439] & Below |
803679A1 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0046405
ORD 8M0069509
(18) [0N046439] & Below |
8M0046405 |
— | ||
|
NI
|
NI
803679A10
Powerhead Assembly
(18) [0N046440] & Up |
803679A10 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0046405
ORD 8M0069509
(18) [0N046440] & Up |
8M0046405 |
— | ||
|
NI
|
NI
803679A06
Powerhead Assembly
(15) [0N046439] & Below |
803679A06 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0047750
POWERHEAD
(15) [0N046439] & Below |
8M0047750 |
— | ||
|
NI
|
NI
803679A08
Powerhead Assembly
(15) [0N046440] & Up |
803679A08 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0047750
POWERHEAD
(15) [0N046440] & Up |
8M0047750 |
— | ||
