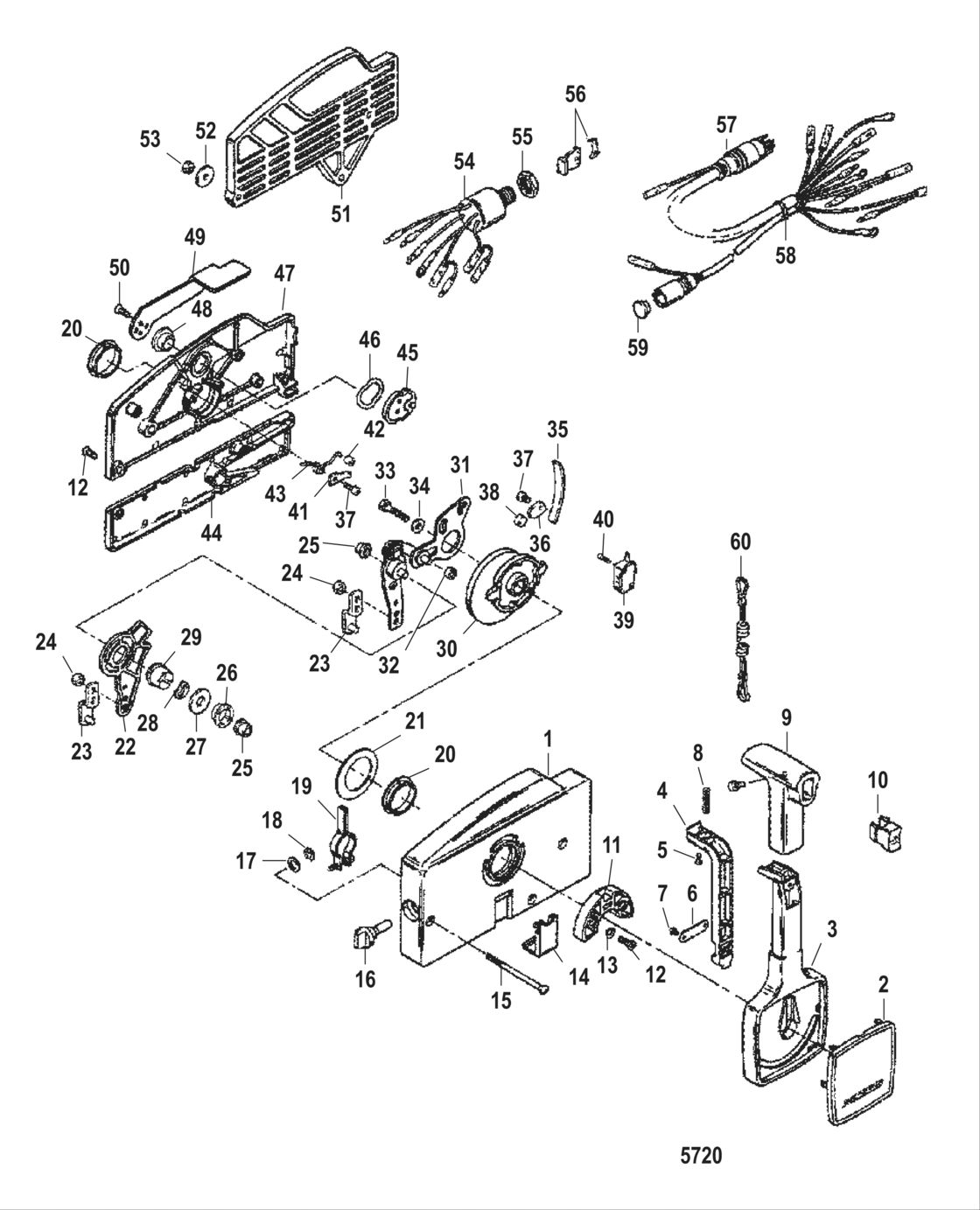

Remote Control Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0N001590 THRU 0N055284
- Серия
- International
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16910A1 New Genuine Part |
16910A1 |
US $60.91 |
||
|
2
|
2
16916A1
New Genuine Part
|
16916A1 |
— | ||
|
3
|
3
16913T
New Genuine Part
|
16913T |
— | ||
|
4
|
4
16915
New Genuine Part
|
16915 |
— | ||
|
5
|
5
40056105 Screw |
40056105 |
US $1.20 |
||
|
6
|
6
16921 New Genuine Part |
16921 |
US $2.29 |
||
|
7
|
7
4005685 Screw |
4005685 |
US $1.78 |
||
|
8
|
8
16924 Spring |
16924 |
US $1.68 |
||
|
9
|
9
16914
New Genuine Part
|
16914 |
— | ||
|
10
|
10
17016 New Genuine Part |
17016 |
US $2.86 |
||
|
11
|
11
16899 Holder |
16899 |
US $4.69 |
||
| replacement | |||||
|
11
|
11
16899T Holder Neutral Lock |
16899T |
US $5.14 |
||
|
12
|
12
40118107 Screw |
40118107 |
US $1.78 |
||
|
13
|
13
16923 Lockwasher, external |
16923 |
US $0.93 |
||
|
14
|
14
16917 New Genuine Part |
16917 |
US $6.40 |
||
|
15
|
15
40116110 Screw |
40116110 |
US $4.29 |
||
| replacement | |||||
|
15
|
15
40116110T Screw (M6 X 110) |
40116110T |
US $4.29 |
||
|
16
|
16
16920 New Genuine Part |
16920 |
US $8.30 |
||
|
17
|
17
16896 Washer |
16896 |
US $0.93 |
||
|
18
|
18
13194 E-ring |
13194 |
US $1.20 |
||
|
19
|
19
16895 New Genuine Part |
16895 |
US $12.91 |
||
|
20
|
20
16875 Bearing |
16875 |
US $1.78 |
||
|
21
|
21
16874 Washer |
16874 |
US $1.54 |
||
|
22
|
22
16918A3 New Genuine Part |
16918A3 |
US $14.69 |
||
|
23
|
23
85899A1 Clip assembly |
85899A1 |
US $4.58 |
||
|
24
|
24
400633
Nut, fuel pump stud
|
400633 |
— | ||
| replacement | |||||
|
24
|
24
401385 Nut |
401385 |
US $4.18 |
||
|
25
|
25
16871 Bearing |
16871 |
US $2.22 |
||
|
26
|
26
16868 Bearing |
16868 |
US $2.22 |
||
|
27
|
27
16870 Washer |
16870 |
US $1.54 |
||
|
28
|
28
16872
Lockwasher
|
16872 |
— | ||
|
29
|
29
16869
Bearing
|
16869 |
— | ||
|
30
|
30
16892T
New Genuine Part
|
16892T |
— | ||
|
31
|
31
850723A2 New Genuine Part |
850723A2 |
US $58.18 |
||
|
32
|
32
16873 New Genuine Part |
16873 |
US $2.86 |
||
|
33
|
33
4007154 Screw |
4007154 |
US $2.93 |
||
|
34
|
34
12038 Washer |
12038 |
US $1.92 |
||
|
35
|
35
16882 Spring |
16882 |
US $2.22 |
||
|
36
|
36
16880 New Genuine Part |
16880 |
US $2.29 |
||
|
37
|
37
4005683 Screw |
4005683 |
US $1.20 |
||
|
38
|
38
16879 New Genuine Part |
16879 |
US $2.29 |
||
|
39
|
39
17277 Switch assembly |
17277 |
US $12.67 |
||
| replacement | |||||
|
39
|
39
17277T SWITCH-NEU SAFETY |
17277T |
US $12.67 |
||
|
40
|
40
4005647 Screw |
4005647 |
US $1.20 |
||
|
41
|
41
16886 New Genuine Part |
16886 |
US $2.86 |
||
|
42
|
42
16884 New Genuine Part |
16884 |
US $2.86 |
||
|
43
|
43
16888 Spring |
16888 |
US $2.22 |
||
|
44
|
44
16912T New Genuine Part |
16912T |
US $23.33 |
||
|
45
|
45
16883 New Genuine Part |
16883 |
US $14.06 |
||
|
46
|
46
16922 Wave washer |
16922 |
US $0.93 |
||
|
47
|
47
16911T New Genuine Part |
16911T |
US $38.70 |
||
|
48
|
48
16887 Bearing |
16887 |
US $2.22 |
||
|
49
|
49
16919A1 New Genuine Part |
16919A1 |
US $23.33 |
||
|
50
|
50
40118106 Screw |
40118106 |
US $1.78 |
||
|
51
|
51
17063T New Genuine Part |
17063T |
US $14.85 |
||
|
52
|
52
35280 Washer, base screw |
35280 |
US $2.78 |
||
|
53
|
53
401196 Nut |
401196 |
US $2.93 |
||
|
54
|
54
17009A5 New Genuine Part |
17009A5 |
US $67.81 |
||
|
55
|
55
93543 Nut, key switch |
93543 |
US $5.46 |
||
| replacement | |||||
|
55
|
55
879755 Nut, special - black nylon |
879755 |
US $5.46 |
||
|
56
|
56
90468A1 New Genuine Part |
90468A1 |
US $4.45 |
||
|
57
|
57
850731A2 Harness assembly |
850731A2 |
US $107.22 |
||
|
58
|
58
816311 Tie strap, |
816311 |
US $0.51 |
||
| replacement | |||||
|
58
|
58
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
59
|
59
11023 Plug |
11023 |
US $1.18 |
||
|
60
|
60
15920A54
New Genuine Part
|
15920A54 |
— | ||
| replacement | |||||
|
60
|
60
15920Q54
New Genuine Part
|
15920Q54 |
— | ||
|
NI
|
NI
16907A1 New Genuine Part |
16907A1 |
US $394.90 |
||
| replacement | |||||
|
NI
|
NI
881170A9 New Genuine Part |
881170A9 |
US $394.90 |
||
|
NI
|
NI
894911 New Genuine Part |
894911 |
US $5.49 |
||
|
NI
|
NI
894912 New Genuine Part |
894912 |
US $5.49 |
||
|
NI
|
NI
894913 New Genuine Part |
894913 |
US $5.49 |
||
|
NI
|
NI
894914 Key 1d 2 |
894914 |
US $5.49 |
||
|
NI
|
NI
894915 Key 1e 2 |
894915 |
US $5.49 |
||
|
NI
|
NI
894916 Key-1f 2 |
894916 |
US $5.49 |
||
|
NI
|
NI
894917 Key-2a 2 |
894917 |
US $5.49 |
||
|
NI
|
NI
894918 Key 2b 2 |
894918 |
US $5.49 |
||
|
NI
|
NI
894919 Key-2c 2 |
894919 |
US $5.49 |
||
|
NI
|
NI
8949110 New Genuine Part |
8949110 |
US $5.49 |
||
|
NI
|
NI
8949111 New Genuine Part |
8949111 |
US $5.49 |
||
|
NI
|
NI
8949112 KEY Ignition (2F) |
8949112 |
from US $5.49 |
||
