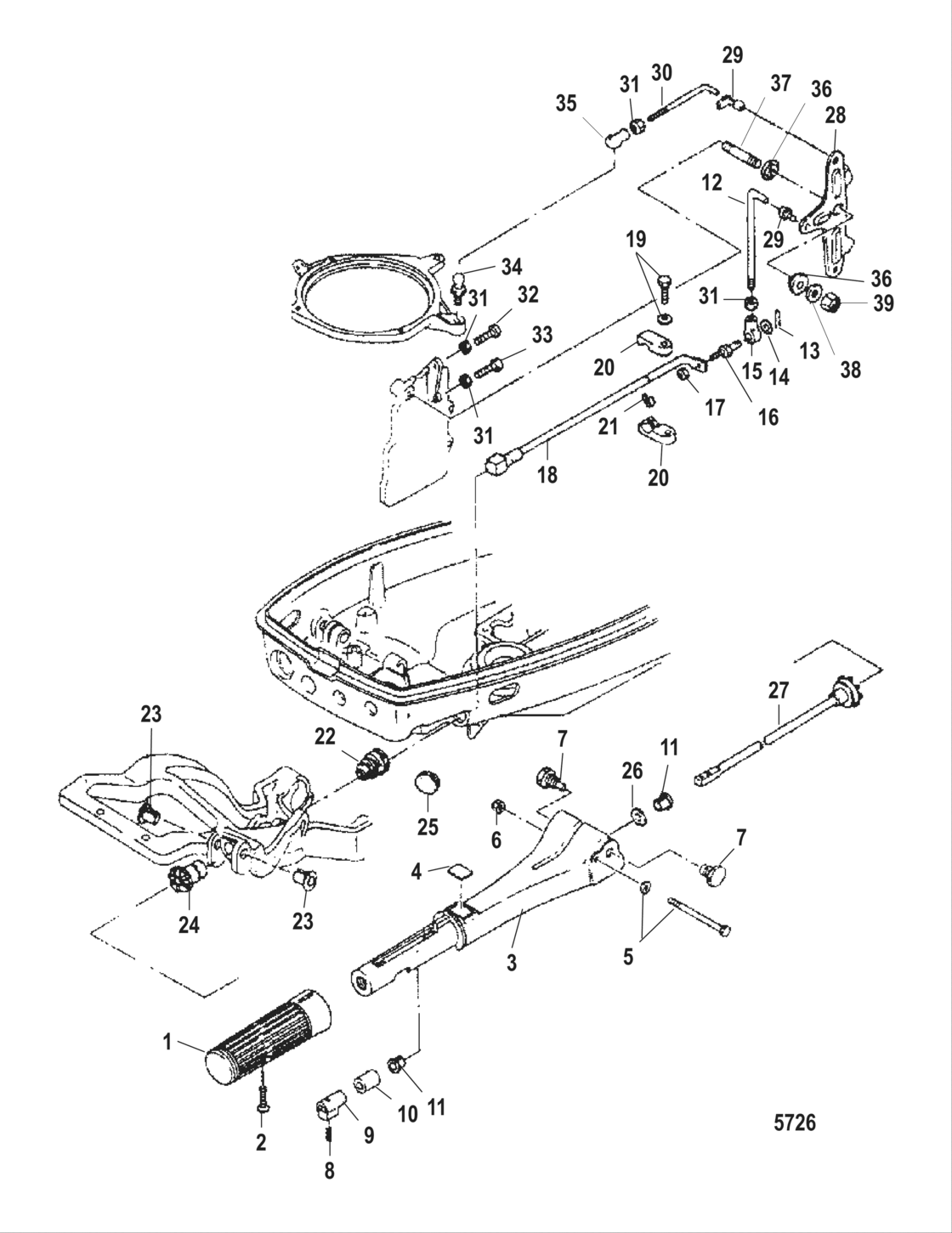

Throttle Linkage/steering Handle Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0N001590 THRU 0N055284
- Серия
- International
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
160861 New Genuine Part |
160861 |
US $47.01 |
||
|
2
|
2
8150461 Screw |
8150461 |
US $1.66 |
||
|
3
|
3
160752
New Genuine Part
|
160752 |
— | ||
| replacement | |||||
|
3
|
3
8M0055716
Handle Steering With Friction Control
|
8M0055716 |
— | ||
|
4
|
4
16090 Decal |
16090 |
US $1.10 |
||
| replacement | |||||
|
4
|
4
8M0097201 DECAL-RAB/TURTLE |
8M0097201 |
US $1.10 |
||
|
5
|
5
8230422
Bolt
|
8230422 |
— | ||
| replacement | |||||
|
5
|
5
8M0050498 BOLT |
8M0050498 |
US $7.34 |
||
|
6
|
6
8537227 Nut, nylon |
8537227 |
US $5.33 |
||
|
7
|
7
8129352
Bolt
|
8129352 |
— | ||
| replacement | |||||
|
7
|
7
8M0111108 BOLT |
8M0111108 |
US $6.78 |
||
|
8
|
8
8150263 Cotter pin |
8150263 |
US $3.82 |
||
|
9
|
9
8537152 Spacer |
8537152 |
US $3.01 |
||
|
10
|
10
16191 Spacer |
16191 |
US $5.46 |
||
|
11
|
11
16336 Bushing |
16336 |
US $5.36 |
||
| replacement | |||||
|
11
|
11
8M0130166 BUSHING |
8M0130166 |
US $4.99 |
||
|
12
|
12
803710
Link rod
|
803710 |
— | ||
| replacement | |||||
|
12
|
12
803710001 LINK ROD |
803710001 |
US $6.34 |
||
|
13
|
13
8150262 Cotter pin |
8150262 |
US $5.66 |
||
|
14
|
14
953925 Washer |
953925 |
US $7.82 |
||
|
15
|
15
8537451 Rod joint |
8537451 |
US $2.70 |
||
|
16
|
16
853749
Cable pin
|
853749 |
— | ||
| replacement | |||||
|
16
|
16
853749001 Pin |
853749001 |
US $23.01 |
||
|
17
|
17
8537226 Nut |
8537226 |
US $2.43 |
||
| replacement | |||||
|
17
|
17
400212 Nut, stainless steel |
400212 |
US $2.43 |
||
|
18
|
18
803712 Shaft, throttle |
803712 |
US $51.55 |
||
|
19
|
19
82304227 Bolt |
82304227 |
US $2.21 |
||
|
20
|
20
803715 Supporter |
803715 |
US $4.22 |
||
|
21
|
21
160572 E ring |
160572 |
US $5.78 |
||
|
22
|
22
16823 Grommet |
16823 |
US $9.39 |
||
|
23
|
23
952869 Collar |
952869 |
US $2.64 |
||
|
24
|
24
803711 Gear, pinion |
803711 |
US $12.11 |
||
|
25
|
25
16226 Grommet(Remote Control) |
16226 |
US $7.07 |
||
|
26
|
26
8537232 Wave washer |
8537232 |
US $3.60 |
||
|
27
|
27
160931 New Genuine Part |
160931 |
US $42.11 |
||
|
28
|
28
803709
Arm, advancer
|
803709 |
— | ||
|
29
|
29
853748 Rod snap |
853748 |
US $11.88 |
||
|
30
|
30
8036811
Link rod advancer
|
8036811 |
— | ||
| replacement | |||||
|
30
|
30
803681006
LINK ROD
|
803681006 |
— | ||
|
31
|
31
8537225 Nut |
8537225 |
US $4.99 |
||
| replacement | |||||
|
31
|
31
16081 Nut, stainless steel |
16081 |
US $4.99 |
||
|
32
|
32
8536991
Screw
|
8536991 |
— | ||
| replacement | |||||
|
32
|
32
888786 Screw |
888786 |
US $1.39 |
||
|
33
|
33
853699 Screw |
853699 |
US $3.01 |
||
| replacement | |||||
|
33
|
33
16123 Screw |
16123 |
US $3.01 |
||
|
34
|
34
853744
New Genuine Part
|
853744 |
— | ||
| replacement | |||||
|
34
|
34
853744001 Ball joint |
853744001 |
US $7.44 |
||
|
35
|
35
853745 New Genuine Part |
853745 |
US $8.40 |
||
|
36
|
36
853743 Bushing |
853743 |
US $3.78 |
||
|
37
|
37
8537181
Stud
|
8537181 |
— | ||
| replacement | |||||
|
37
|
37
879194297 STUD |
879194297 |
US $12.11 |
||
|
38
|
38
853701 Washer |
853701 |
US $4.53 |
||
| replacement | |||||
|
38
|
38
8M0135942 Washer |
8M0135942 |
US $4.53 |
||
|
39
|
39
815088 Nut |
815088 |
US $8.58 |
||
|
NI
|
NI
16075A3
New Genuine Part
|
16075A3 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0059950
HANDLE KIT
|
8M0059950 |
— | ||
|
NI
|
NI
16075A2
New Genuine Part
|
16075A2 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0133194
HANDLE ASSY
|
8M0133194 |
— | ||
