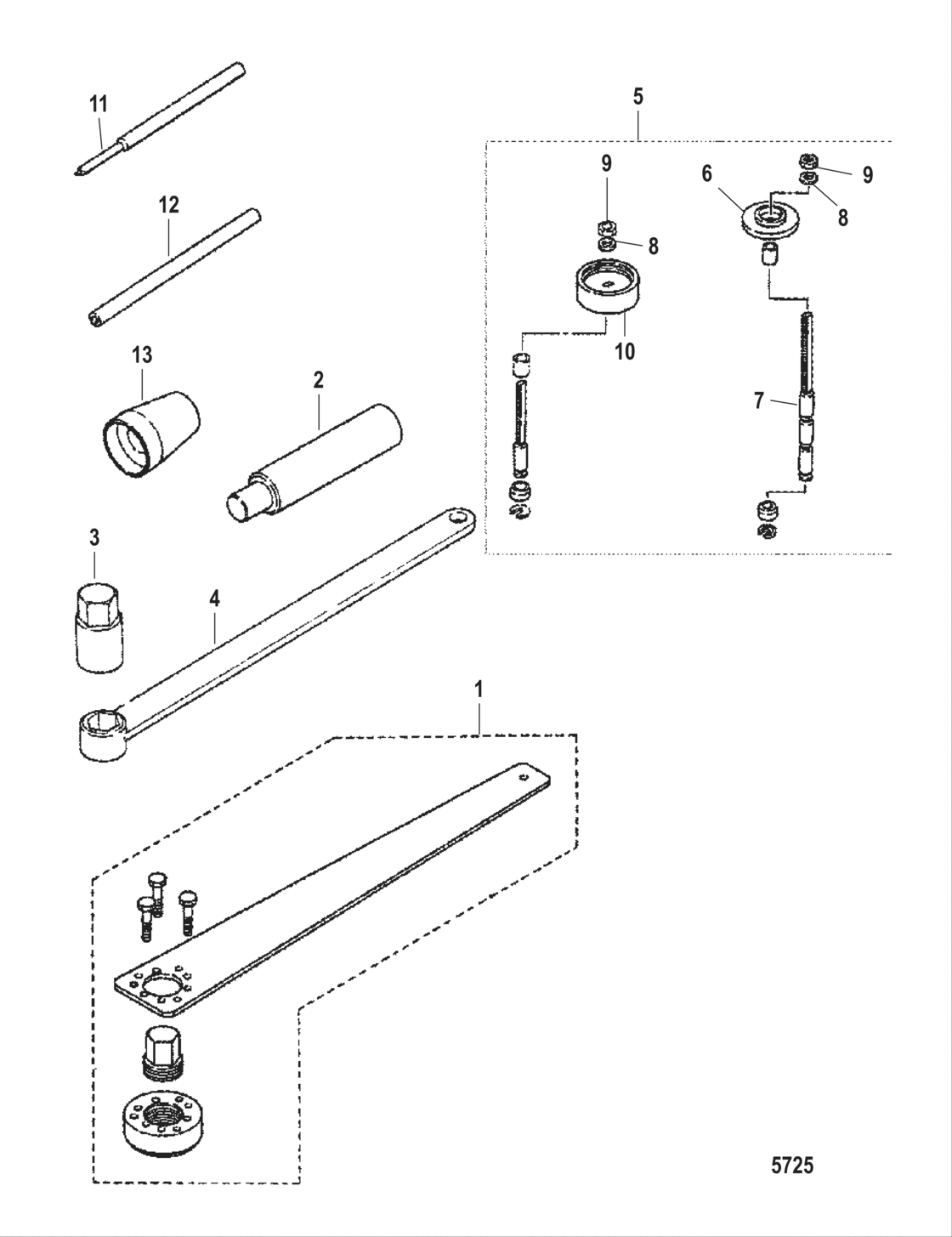

Tools Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0N001590 THRU 0N055284
- Серия
- International
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
853996 Puller assembly tool, flywheel |
853996 |
US $1,028.34 |
||
| replacement | |||||
|
1
|
1
8M0059838 PULLER/HOLDER-FLY |
8M0059838 |
US $1,234.13 |
||
|
2
|
2
804764 Installer/remover tool, piston pin |
804764 |
US $38.22 |
||
|
3
|
3
804762 Socket |
804762 |
US $180.56 |
||
|
4
|
4
85399612 Wrench tool |
85399612 |
US $566.38 |
||
|
5
|
5
85399620
Puller kit, needle roller bearing
|
85399620 |
— | ||
| replacement | |||||
|
5
|
5
895195A01 PULLER KIT-BRG |
895195A01 |
US $2,096.21 |
||
|
6
|
6
8031332 Flange |
8031332 |
US $247.28 |
||
|
7
|
7
8031333 Shaft |
8031333 |
US $252.99 |
||
|
8
|
8
1614010 Washer |
1614010 |
US $2.56 |
||
|
9
|
9
85372220 Nut |
85372220 |
US $90.45 |
||
|
10
|
10
8031336 Flange |
8031336 |
US $260.56 |
||
|
11
|
11
8539966 Tool |
8539966 |
US $38.48 |
||
|
12
|
12
8539968 Tool |
8539968 |
US $22.11 |
||
|
13
|
13
804763
Snap tool, clutch pin
|
804763 |
— | ||
|
NI
|
NI
895216003 Tool, backlash measuring collar(Not Shown) |
895216003 |
US $41.78 |
||
|
NI
|
NI
804552001
Tool, flywheel puller
(Not Shown) |
804552001 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0059838 PULLER/HOLDER-FLY(Not Shown) |
8M0059838 |
US $1,234.13 |
||
|
NI
|
NI
895220
Tool, flywheel stripper
(Not Shown) |
895220 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0059838 PULLER/HOLDER-FLY(Not Shown) |
8M0059838 |
US $1,234.13 |
||
