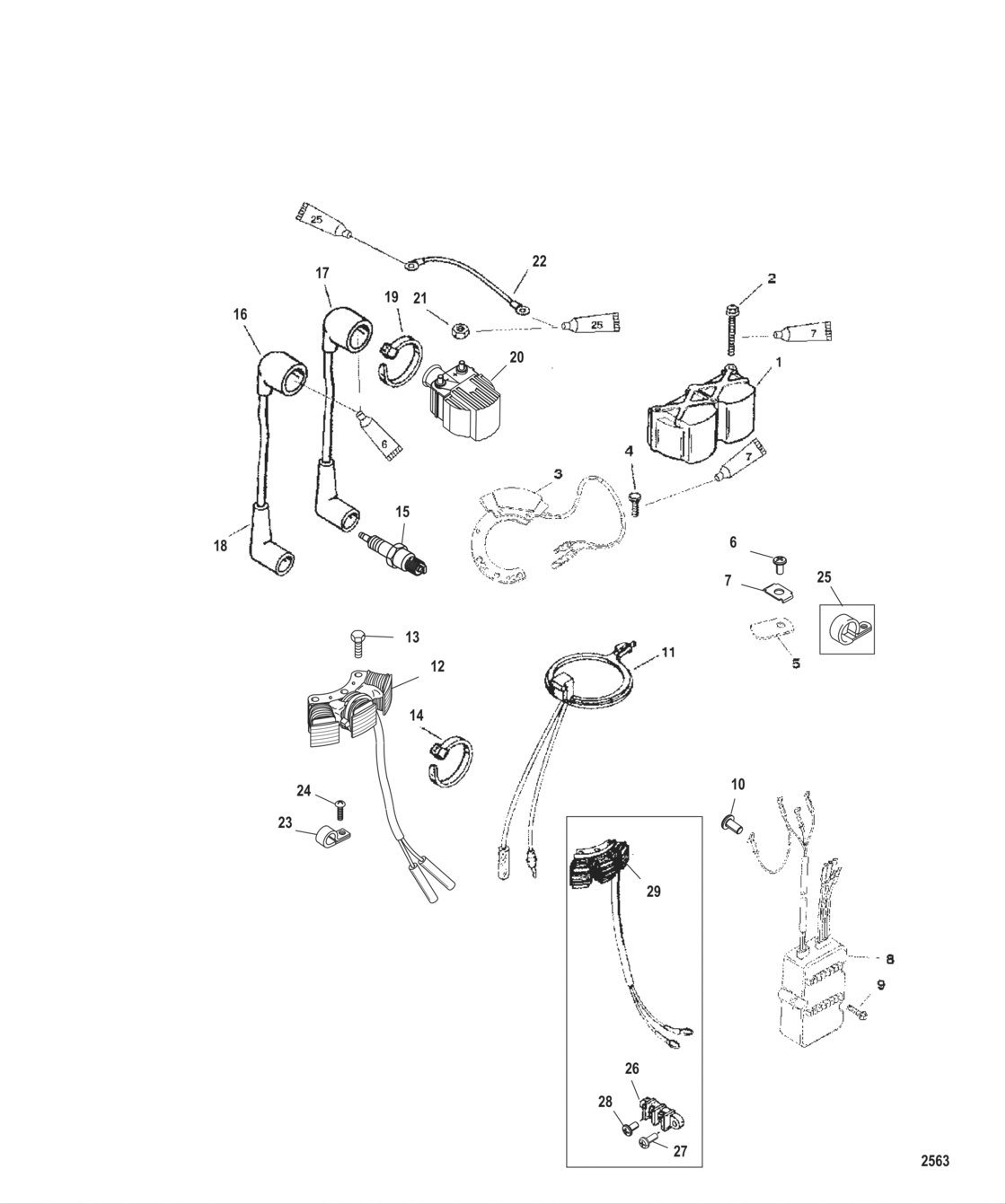

Ignition/electrical Components Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- Belgium
- Серийный номер
- 0P017000 THRU 0P325499
- Серия
- Mariner XD
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
997621 New Genuine Part |
997621 |
US $14.61 |
||
|
2
|
2
1994155 Screw |
1994155 |
US $1.62 |
||
|
3
|
3
855721A4 Stator |
855721A4 |
US $243.01 |
||
| replacement | |||||
|
3
|
3
855721T8 Stator assy |
855721T8 |
from US $294 |
||
|
4
|
4
4013930 Screw |
4013930 |
US $2.43 |
||
|
4
|
4
4013910 Screw |
4013910 |
US $1.62 |
||
|
5
|
5
856999 Strap(Design II) |
856999 |
US $1.86 |
||
|
6
|
6
62568 Screw, , switch retainer to control panel |
62568 |
US $0.93 |
||
|
7
|
7
69205 C washer |
69205 |
US $0.93 |
||
| replacement | |||||
|
7
|
7
8M0084613 C-Washer |
8M0084613 |
US $0.93 |
||
|
8
|
8
855713A4 SWITCHBOX ASSEMBLY(Non-Commercial) |
855713A4 |
from US $501.16 |
||
|
8
|
8
855713A3 New Genuine Part(Commercial/Jet 20) |
855713A3 |
from US $355.66 |
||
|
9
|
9
40019111 Screw, rest to starter housing |
40019111 |
US $0.93 |
||
|
10
|
10
62568 Screw, , switch retainer to control panel |
62568 |
US $0.93 |
||
|
11
|
11
98450A10 Trigger |
98450A10 |
US $104.11 |
||
|
12
|
12
86704T11 New Genuine Part[0T409000/0P153500] & Up |
86704T11 |
US $310.11 |
||
|
13
|
13
4013930 Screw |
4013930 |
US $2.43 |
||
|
14
|
14
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
15
|
15
8167372 Spark Plug(NGK #BP8H-N-10) |
8167372 |
US $6.80 |
||
| replacement | |||||
|
15
|
15
816737Q Spark Plug(NGK #BP8H-N-10) |
816737Q |
US $6.97 |
||
|
15
|
15
8168372 Spark plug BPZ8H-N-10(NGK #BPZ8H-N-10) (CAN/BELG.) |
8168372 |
US $18.04 |
||
| replacement | |||||
|
15
|
15
816837Q NGKBPZ8HN-10@10(NGK #BPZ8H-N-10) (CAN/BELG.) |
816837Q |
US $13.91 |
||
|
16
|
16
813715A2 Cable Set High Tension (5 And 8.25 Inch) High Tension |
813715A2 |
US $40 |
||
|
17
|
17
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
18
|
18
63709A1 SPARK PLUG CAP |
63709A1 |
US $8.60 |
||
|
19
|
19
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
20
|
20
832757A4 Coil kit |
832757A4 |
US $109.44 |
||
|
21
|
21
45076 Nut, circuit breaker terminal |
45076 |
US $2.09 |
||
|
22
|
22
88807A10 Wire assembly, ground |
88807A10 |
US $10.21 |
||
|
23
|
23
24836 Clip |
24836 |
US $3.71 |
||
|
24
|
24
48408 Screw, exhaust relief cover |
48408 |
US $2.22 |
||
|
25
|
25
22740 Clip(Design I) |
22740 |
US $4.40 |
||
|
26
|
26
638131
Terminal block
[0T408999/0P153499] & Below |
638131 |
— | ||
|
27
|
27
48409 Screw, stainless steel[0T408999/0P153499] & Below |
48409 |
US $1.97 |
||
|
28
|
28
62568 Screw, , switch retainer to control panel[0T408999/0P153499] & Below |
62568 |
US $0.93 |
||
|
29
|
29
86704A10 STATOR[0T408999/0P153499] & Below |
86704A10 |
US $306.11 |
||
|
NS
|
NS
13541 New Genuine Part |
13541 |
US $2.78 |
||
|
NS
|
NS
13540 New Genuine Part |
13540 |
US $2.78 |
||
