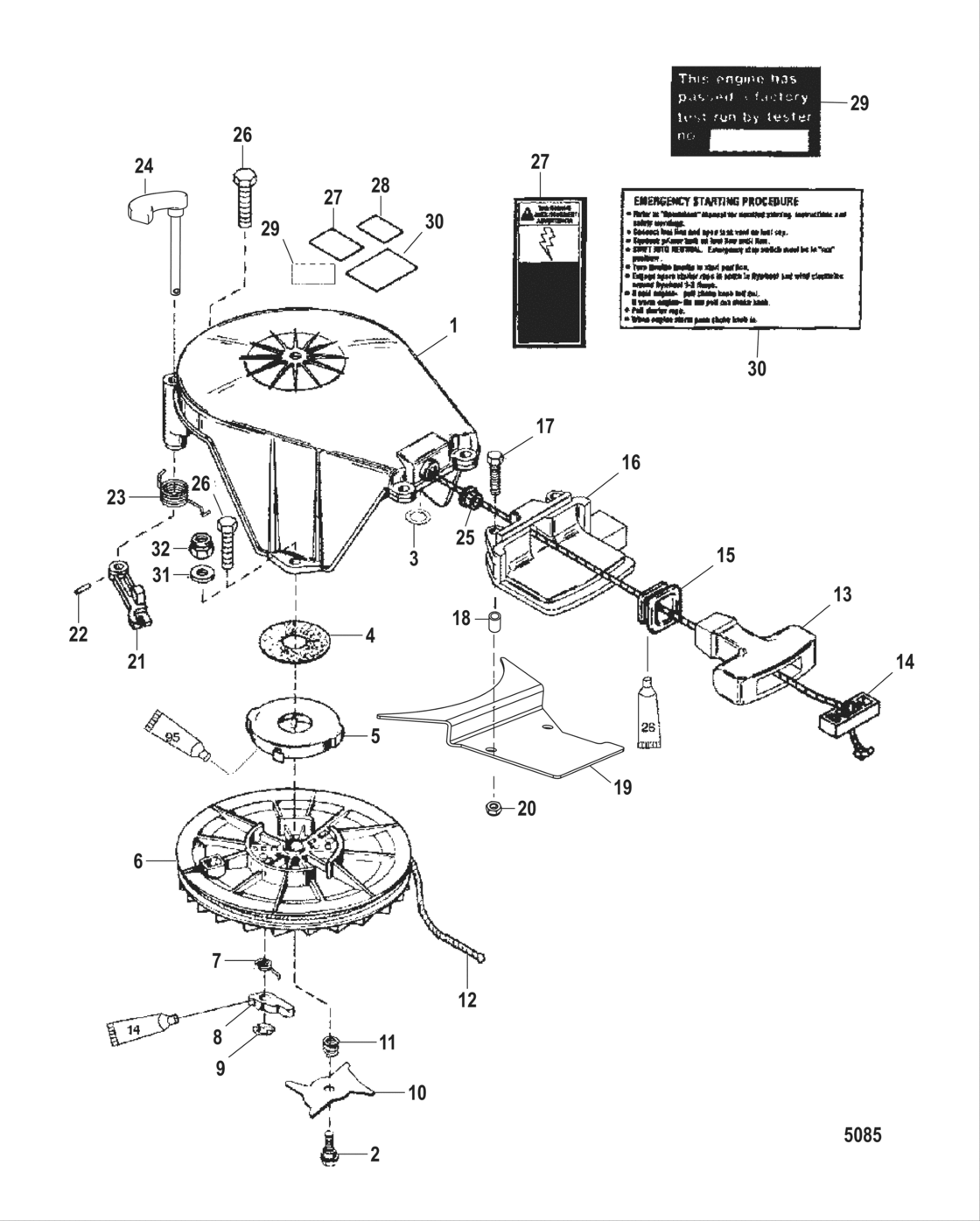

Starter Assembly (Manual) Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- Belgium
- Серийный номер
- 0P017000 THRU 0P325499
- Серия
- Mariner XD
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86689A5
New Genuine Part
|
86689A5 |
— | ||
|
2
|
2
826253 Screw |
826253 |
US $3.62 |
||
|
3
|
3
818853 Retaining ring |
818853 |
US $1.80 |
||
|
4
|
4
833161 Pad-felt |
833161 |
US $4.40 |
||
| replacement | |||||
|
4
|
4
833161T Pad-felt |
833161T |
US $4.40 |
||
|
5
|
5
868571 Spring |
868571 |
US $55.34 |
||
| replacement | |||||
|
5
|
5
86857T01 SPRING |
86857T01 |
US $55.34 |
||
|
6
|
6
825269A1 Sheave Starter |
825269A1 |
US $82.94 |
||
| replacement | |||||
|
6
|
6
825269T01 SHEAVE STARTR ASU |
825269T01 |
US $82.94 |
||
|
7
|
7
868512 Spring |
868512 |
US $4.35 |
||
| replacement | |||||
|
7
|
7
86851T02 SPRING @2 |
86851T02 |
US $4.35 |
||
|
8
|
8
868501 Dog-cam |
868501 |
US $20.85 |
||
|
9
|
9
868491 Ring, retaining |
868491 |
US $4.18 |
||
| replacement | |||||
|
9
|
9
86849T01 RING @2 |
86849T01 |
US $4.66 |
||
|
10
|
10
868531 New Genuine Part |
868531 |
US $7.78 |
||
| replacement | |||||
|
10
|
10
86853T01 Cam |
86853T01 |
US $8.61 |
||
|
11
|
11
868523 Spring |
868523 |
US $6.67 |
||
|
12
|
12
12066Q9 Rope |
12066Q9 |
US $10.43 |
||
| replacement | |||||
|
12
|
12
12066Q10 ROPE-STARTR @2 |
12066Q10 |
US $13.91 |
||
|
13
|
13
85174A1 Handle assy-start |
85174A1 |
US $32.98 |
||
|
14
|
14
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
15
|
15
44180 BUSHING Rope |
44180 |
US $14.98 |
||
|
16
|
16
426264 Rest-starter hdl |
426264 |
US $24.17 |
||
|
17
|
17
40019111 Screw, rest to starter housing |
40019111 |
US $0.93 |
||
|
18
|
18
309772 Spacer, rest screw |
309772 |
US $4.18 |
||
|
19
|
19
856154 New Genuine Part |
856154 |
US $8.46 |
||
| replacement | |||||
|
19
|
19
856154T01 New Genuine Part |
856154T01 |
US $8.46 |
||
|
20
|
20
401385 Nut |
401385 |
US $4.18 |
||
|
21
|
21
938762 New Genuine Part |
938762 |
US $9.97 |
||
| replacement | |||||
|
21
|
21
93876T02 New Genuine Part |
93876T02 |
US $9.97 |
||
|
22
|
22
38489 Roll pin, latch handle to crank |
38489 |
US $4.40 |
||
|
23
|
23
823778 Spring, upper lock lever |
823778 |
US $4.75 |
||
|
24
|
24
94019 New Genuine Part |
94019 |
US $41.33 |
||
| replacement | |||||
|
24
|
24
858925 Lever-lock, upper |
858925 |
US $41.33 |
||
|
25
|
25
42690 BUSHING |
42690 |
US $10.40 |
||
| replacement | |||||
|
25
|
25
8M0183792 BUSHING |
8M0183792 |
US $10.40 |
||
|
26
|
26
1993735 Screw[0G845348/0P038444] & Up |
1993735 |
US $3.14 |
||
|
26
|
26
40011128 Screw, starter housing attaching[0G845347/0P038443] & Below |
40011128 |
US $3.94 |
||
| replacement | |||||
|
26
|
26
8M4503518 Screw (M6 X 1.0 X 20)[0G845347/0P038443] & Below |
8M4503518 |
US $4.98 |
||
|
27
|
27
8272822 Decal, warning, high voltage |
8272822 |
US $12.18 |
||
|
28
|
28
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
29
|
29
881865 Decal, caution-start in gear(Start In Gear) (Remote Control) |
881865 |
US $10.21 |
||
|
30
|
30
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
31
|
31
69056 Washer(Commercial Engines) |
69056 |
US $1.62 |
||
|
32
|
32
8268336
Nut
(Commercial Engines) |
8268336 |
— | ||
| replacement | |||||
|
32
|
32
401386 Nut, stainless steel(Commercial Engines) |
401386 |
US $5.22 |
||
|
NI
|
NI
90906A21 New Genuine Part[0G845347/0P038443] & Below |
90906A21 |
US $436.11 |
||
| replacement | |||||
|
NI
|
NI
90906A23
New Genuine Part
[0G845347/0P038443] & Below |
90906A23 |
— | ||
|
NI
|
NI
90906A23
New Genuine Part
[0G845348/0P0384444] & Up |
90906A23 |
— | ||
