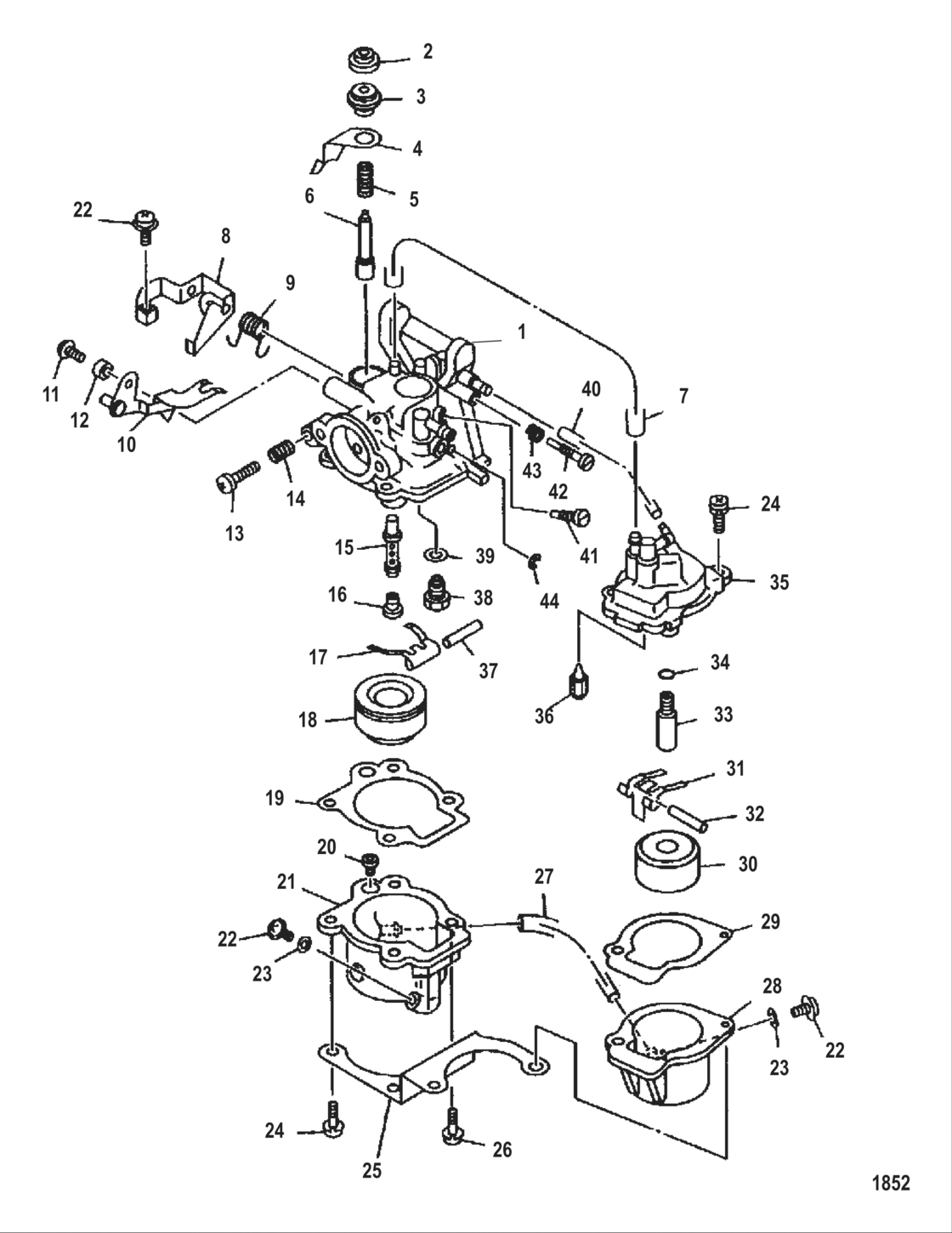

Carburetor Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 65G-602581 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
852806T1
Carburetor Assembly
|
852806T1 |
— | ||
| replacement | |||||
|
1
|
1
852806A02
Carburetor Assembly
|
852806A02 |
— | ||
|
2
|
2
80196M
New Genuine Part
|
80196M |
— | ||
|
3
|
3
852811
New Genuine Part
|
852811 |
— | ||
| replacement | |||||
|
3
|
3
80197M
New Genuine Part
|
80197M |
— | ||
|
4
|
4
80199M
New Genuine Part
|
80199M |
— | ||
|
5
|
5
80194M
Spring
|
80194M |
— | ||
|
6
|
6
80195M
New Genuine Part
|
80195M |
— | ||
|
7
|
7
8527921
Hose
|
8527921 |
— | ||
|
8
|
8
852807
Lever-throttle
|
852807 |
— | ||
|
9
|
9
80574M
Spring
|
80574M |
— | ||
|
10
|
10
811245M
New Genuine Part
|
811245M |
— | ||
|
11
|
11
83112M
Screw
|
83112M |
— | ||
|
12
|
12
83115M
New Genuine Part
|
83115M |
— | ||
|
13
|
13
827147M
Screw
|
827147M |
— | ||
|
14
|
14
80193M
Spring
|
80193M |
— | ||
|
15
|
15
8112431
Nozzle-main
|
8112431 |
— | ||
|
16
|
16
8112441
Jet-main
|
8112441 |
— | ||
|
17
|
17
80203M
N.l.a.
|
80203M |
— | ||
|
18
|
18
80450M
New Genuine Part
|
80450M |
— | ||
|
19
|
19
80740M
Gasket
|
80740M |
— | ||
|
20
|
20
811246M
N.l.a.
|
811246M |
— | ||
|
21
|
21
94735M
New Genuine Part
|
94735M |
— | ||
|
22
|
22
8527873
Screw
|
8527873 |
— | ||
| replacement | |||||
|
22
|
22
811248M
Screw
|
811248M |
— | ||
|
23
|
23
80737M
Gasket
|
80737M |
— | ||
| replacement | |||||
|
23
|
23
13999M
Gasket
|
13999M |
— | ||
|
24
|
24
8527872
Screw
|
8527872 |
— | ||
|
25
|
25
852809
New Genuine Part
|
852809 |
— | ||
|
26
|
26
81758M Screw |
81758M |
US $2.78 |
||
|
27
|
27
94746M
Hose
|
94746M |
— | ||
|
28
|
28
94744M
New Genuine Part
|
94744M |
— | ||
|
29
|
29
94691M
Gasket
|
94691M |
— | ||
|
30
|
30
94696M
New Genuine Part
|
94696M |
— | ||
|
31
|
31
94697M
New Genuine Part
|
94697M |
— | ||
|
32
|
32
811249M
Pin Float
|
811249M |
— | ||
|
33
|
33
8112511
New Genuine Part
|
8112511 |
— | ||
|
34
|
34
94695M
O-Ring
|
94695M |
— | ||
|
35
|
35
852808
New Genuine Part
|
852808 |
— | ||
| replacement | |||||
|
35
|
35
852808T
COVER
|
852808T |
— | ||
|
36
|
36
95430M
New Genuine Part
|
95430M |
— | ||
|
37
|
37
80451M
Pin, float
|
80451M |
— | ||
|
38
|
38
11930M New Genuine Part |
11930M |
US $41.55 |
||
|
39
|
39
80205M
Gasket
|
80205M |
— | ||
|
40
|
40
97591M
Hose
|
97591M |
— | ||
|
41
|
41
91746M
New Genuine Part
|
91746M |
— | ||
|
42
|
42
80573M
Screw
|
80573M |
— | ||
|
43
|
43
8095791 Spring |
8095791 |
US $2.78 |
||
|
44
|
44
94722M
Circlip
|
94722M |
— | ||
|
NI
|
NI
811252A1
Repair Kit Carburetor
|
811252A1 |
— | ||
| replacement | |||||
|
NI
|
NI
811252T1
New Genuine Part
|
811252T1 |
— | ||
|
NI
|
NI
852783A1
Gasket Set Powerhead
|
852783A1 |
— | ||
