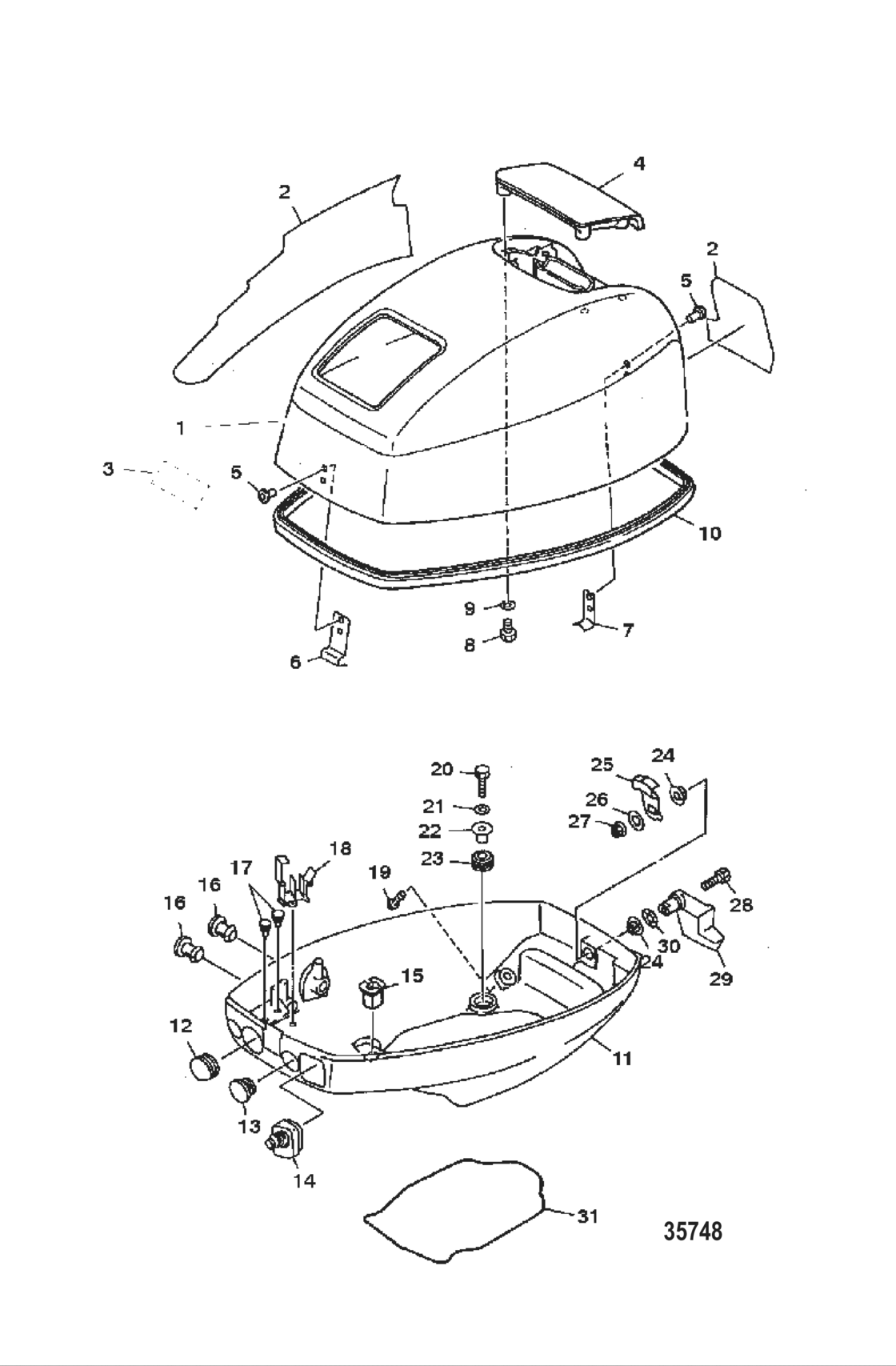

Cowling Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 65G-602581 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
852762A1
Top Cowl Assembly
|
852762A1 |
— | ||
| replacement | |||||
|
1
|
1
852762A02
Top Cowl Assembly
|
852762A02 |
— | ||
|
2
|
2
852825A1
Decal Set (Side/rear)
|
852825A1 |
— | ||
|
3
|
3
8528251
Decal Front
|
8528251 |
— | ||
|
4
|
4
852766
New Genuine Part
|
852766 |
— | ||
|
5
|
5
814489M
Rivet
|
814489M |
— | ||
|
6
|
6
852764
New Genuine Part
|
852764 |
— | ||
|
7
|
7
8527641
New Genuine Part
|
8527641 |
— | ||
|
8
|
8
826957M
Bolt
|
826957M |
— | ||
|
9
|
9
82214M
Washer
|
82214M |
— | ||
|
10
|
10
852763 New Genuine Part |
852763 |
US $26 |
||
|
11
|
11
852767
Bottom Cowl
|
852767 |
— | ||
|
12
|
12
83988M
Grommet
|
83988M |
— | ||
|
13
|
13
18927M
Grommet
|
18927M |
— | ||
|
14
|
14
852768
Grommet
|
852768 |
— | ||
|
15
|
15
96596M
Grommet
|
96596M |
— | ||
|
16
|
16
11414M
Grommet
|
11414M |
— | ||
|
17
|
17
16634M
Grommet
|
16634M |
— | ||
|
18
|
18
852772
New Genuine Part
|
852772 |
— | ||
|
19
|
19
852771
Connector
|
852771 |
— | ||
|
20
|
20
82405M
Bolt
|
82405M |
— | ||
|
21
|
21
82214M
Washer
|
82214M |
— | ||
|
22
|
22
11420M
Collar
|
11420M |
— | ||
|
23
|
23
11416M Grommet |
11416M |
US $5.33 |
||
| replacement | |||||
|
23
|
23
11416T GROMMET |
11416T |
US $5.33 |
||
|
24
|
24
11409M
Bushing
|
11409M |
— | ||
|
25
|
25
95463M
N.l.a.
|
95463M |
— | ||
|
26
|
26
81794M Washer |
81794M |
US $5.33 |
||
|
27
|
27
82390M
Nut
|
82390M |
— | ||
|
28
|
28
82405M
Bolt
|
82405M |
— | ||
|
29
|
29
8527691
New Genuine Part
|
8527691 |
— | ||
|
30
|
30
81869M
Washer
|
81869M |
— | ||
|
31
|
31
852770
Seal
|
852770 |
— | ||
