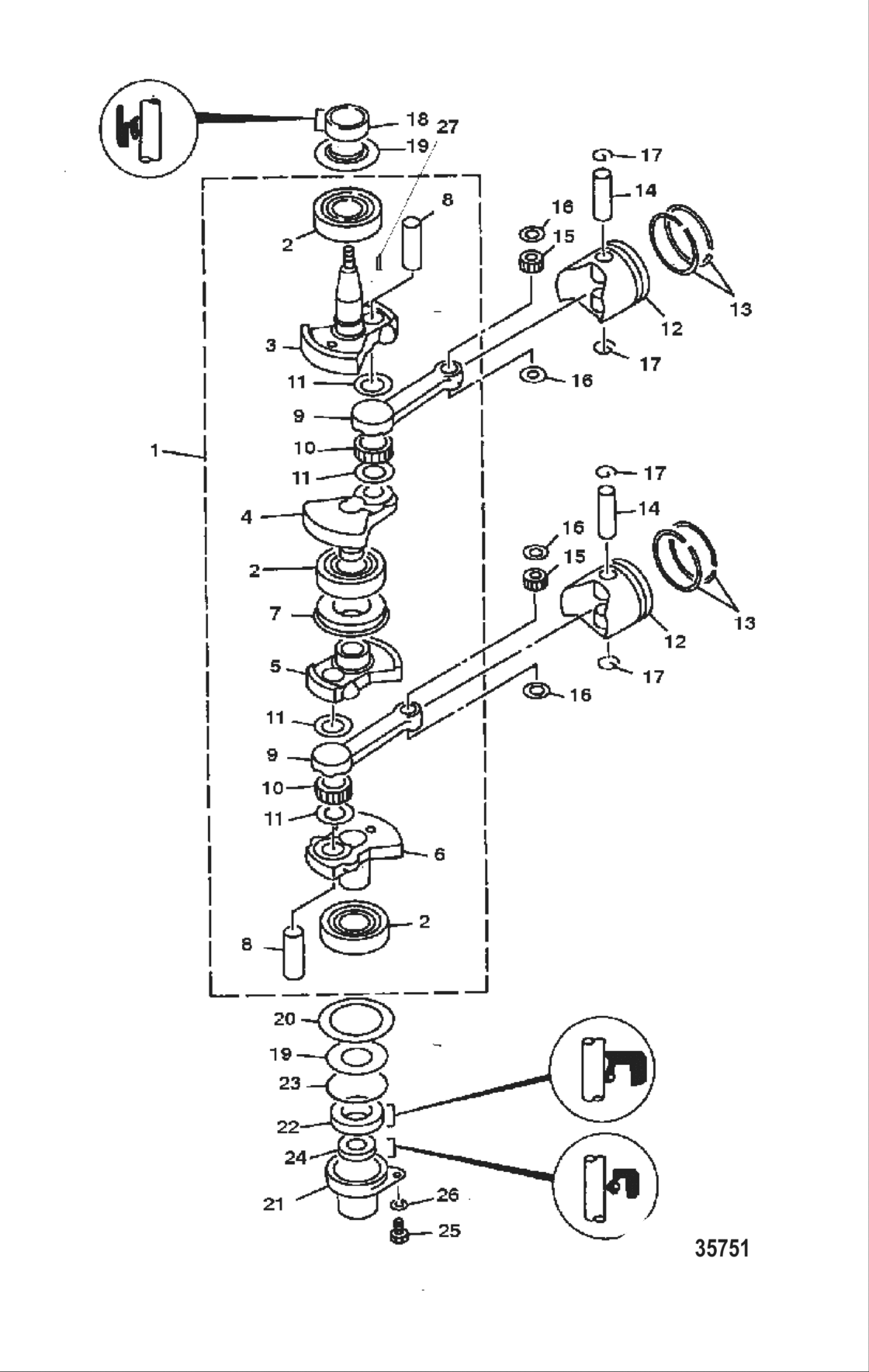

Crankshaft, Pistons And Connecting Rods Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 65G-602581 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
852798A1
Crankshaft
|
852798A1 |
— | ||
| replacement | |||||
|
1
|
1
852798A02
Crankshaft
|
852798A02 |
— | ||
|
2
|
2
852800 Bearing |
852800 |
US $43.22 |
||
|
3
|
3
827192M
New Genuine Part
|
827192M |
— | ||
|
4
|
4
852799
New Genuine Part
|
852799 |
— | ||
|
5
|
5
8527991
New Genuine Part
|
8527991 |
— | ||
|
6
|
6
8527992 New Genuine Part |
8527992 |
US $233.33 |
||
|
7
|
7
852801
New Genuine Part
|
852801 |
— | ||
|
8
|
8
84625M
Pin
|
84625M |
— | ||
|
9
|
9
812494M
Connecting Rod
|
812494M |
— | ||
|
10
|
10
812495M
Bearing
|
812495M |
— | ||
|
11
|
11
84636M
Washer
|
84636M |
— | ||
|
12
|
12
9580M
Piston
(STANDARD) |
9580M |
— | ||
| replacement | |||||
|
12
|
12
9580T
Piston
(STANDARD) |
9580T |
— | ||
|
12
|
12
9581M
Piston
(1ST. O.S. 0.25MM) |
9581M |
— | ||
|
12
|
12
9582M
Piston
(2ND. O.S. 0.50MM) |
9582M |
— | ||
|
13
|
13
15320M Ring Set Piston(STANDARD) |
15320M |
US $22.90 |
||
| replacement | |||||
|
13
|
13
15320T Ring Set Piston(STANDARD) |
15320T |
US $22.90 |
||
|
13
|
13
18939M
Ring Set Piston
(1ST. O.S. 0.25MM) |
18939M |
— | ||
| replacement | |||||
|
13
|
13
18939T
Ring Set Piston
(1ST. O.S. 0.25MM) |
18939T |
— | ||
|
13
|
13
15322M
Ring Set Piston
(2ND. O.S. 0.50MM) |
15322M |
— | ||
| replacement | |||||
|
13
|
13
15322T
Ring Set Piston
(2ND. O.S. 0.50MM) |
15322T |
— | ||
|
14
|
14
825713 Pin, piston |
825713 |
US $10.78 |
||
|
15
|
15
82349M
Bearing Needle
|
82349M |
— | ||
|
16
|
16
81823M
Washer
|
81823M |
— | ||
|
17
|
17
82343M Clip |
82343M |
US $2.21 |
||
|
18
|
18
83936M
Seal Oil
|
83936M |
— | ||
|
19
|
19
852802
Spacer
|
852802 |
— | ||
|
20
|
20
852803
Washer
|
852803 |
— | ||
|
21
|
21
852795
New Genuine Part
|
852795 |
— | ||
|
22
|
22
852797
Seal Oil
|
852797 |
— | ||
|
23
|
23
852796 O-Ring |
852796 |
US $10 |
||
|
24
|
24
96606M Seal Oil |
96606M |
US $15.07 |
||
|
25
|
25
826957M
Bolt
|
826957M |
— | ||
|
26
|
26
82214M
Washer
|
82214M |
— | ||
|
27
|
27
81914M Key |
81914M |
US $14.72 |
||
| replacement | |||||
|
27
|
27
8M0057164 KEY @2 |
8M0057164 |
US $14.72 |
||
|
NI
|
NI
852761A99
New Genuine Part
|
852761A99 |
— | ||
| replacement | |||||
|
NI
|
NI
852761A02
Powerhead Assembly
|
852761A02 |
— | ||
|
NI
|
NI
852783A1
Gasket Set Powerhead
|
852783A1 |
— | ||
